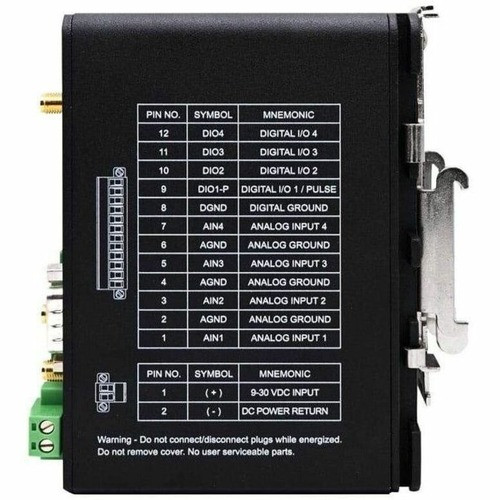

Digi International IX30-00P7 DIN Rail Cellular Router
The Digi International IX30-00P7 is a DIN rail-mounted cellular router designed for remote site connectivity, telecom infrastructure backup, and distributed network deployments. This complete solution integrates 3G/4G cellular modem capability with Fast Ethernet switching in a compact form factor that fits standard 19-inch equipment cabinets and field junction boxes. The IX30-00P7 eliminates the need for separate cellular modem hardware and provides managed cellular failover or primary WAN connectivity for security systems, access control networks, traffic management systems, and industrial IoT installations in areas lacking fiber or broadband infrastructure.
Key Features
- DIN Rail Mounting: Standard 35mm DIN rail form factor. Installs directly into telecom cabinets and equipment enclosures without additional mounting hardware or adapters.
- Dual-Mode Cellular (3G/4G): Integrated modem supports both 3G and 4G LTE fallback. Automatic failover ensures connectivity continuity when primary WAN link is unavailable.
- 10/100 Fast Ethernet Ports: Native Fast Ethernet switching (10/100 Mbps) for local site connectivity. PoE-capable ports available depending on configuration for powering remote cameras and access points.
- Remote Management Suite: CLI, SNMP, SMTP, SCP, and NTP protocols enable centralized device management, event logging, and time synchronization across distributed deployments without site visits.
- Industrial-Grade Construction: Designed for outdoor cabinet, pole-mounted enclosure, and harsh-environment deployments. Extended operating temperature range supports unheated shelters and weather-exposed installations.
- 5-Year Manufacturer Warranty: Factory warranty covers parts and labor, with documented support lifecycle ensuring parts availability and firmware updates throughout the deployment lifecycle.
The IX30-00P7 serves as the cellular backbone for remote security deployments where traditional broadband or fiber is unavailable or cost-prohibitive. In surveillance networks, the router provides bidirectional connectivity for IP cameras, NVRs, and access control panels at unstaffed remote sites—parking lots, utility substations, pipeline monitoring stations, and distributed retail locations. The integrated modem eliminates external USB cellular adaptors and associated compatibility issues, reducing total system complexity and failure points.
Management and monitoring capabilities are built for telecom and security operations teams. SNMP traps trigger alerts when WAN link quality degrades or cellular signal drops below operational thresholds. NTP synchronization keeps distributed recording systems and event logs aligned across geographically dispersed sites—critical for forensic timeline reconstruction. CLI and SCP enable batch configuration deployment across 50+ remote sites without serial console access or onsite technician travel.
The router's Fast Ethernet switching backplane handles concurrent IP camera streams and access control protocol traffic without bottlenecking. On a typical small cell deployment—2–4 cameras at 2–4 Mbps each, plus access control and metadata—the IX30-00P7 carries the combined load with headroom for HTTPS, VPN tunneling, and management traffic. Dual cellular modem failover is transparent to downstream devices; the switching fabric maintains session state during carrier handoff or 3G-to-4G transitions.
Total cost of ownership favors the IX30-00P7 for integrators managing 10+ remote sites. Elimination of external cellular modem hardware, USB adapter cables, and external power supplies reduces field spares inventory and simplifies replacement logistics. The DIN rail form factor means standard cabinet labor applies; no custom mounting engineering is required. Paired with a managed managed cellular data plan (separate from hardware cost), the system offers predictable monthly recurring expense with no per-site fiber or broadband dependency.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the Digi IX30-00P7 across utility substations, remote retail security networks, and cellular-primary municipal surveillance arrays where fiber footprint is absent or prohibitively expensive. The device sits at an operational sweet spot—it's not a full-featured enterprise gateway with dynamic routing or advanced firewall inspection, but it's also not a consumer-grade USB dongle that fails silently when signal degrades. For remote security deployments, that middle ground is exactly right. The integrated 3G/4G modem eliminates the single largest failure point we've seen in field cellular systems: external USB adapters that drop carrier handoff mid-transaction or fail in temperature extremes. The DIN rail form factor means your field technician doesn't improvise bracket solutions or run the device loose inside a cabinet. And the management suite—SNMP, NTP, SCP—lets you operate 50 remote sites from a central NOC without routing an integrator to each location every time cellular signal dips or a clock drifts. Real money on service calls.
Technical Highlights:
- Dual-Mode Cellular Fallover (3G/4G LAN): Automatic switching between 3G and 4G networks with zero-downtime failover. On sites with mixed carrier coverage, the router selects the strongest available signal. We've seen this eliminate periodic brownout conditions that plagued older USB-modem deployments with manual mode selection.
- 10/100 Fast Ethernet Backplane: Supports 4–6 concurrent IP camera streams at 2–4 Mbps each plus access control and NVR heartbeat traffic without queuing or frame loss. Adequate for small-cell and remote office profiles; larger surveillance arrays require multiple IX30 units or dedicated bandwidth management.
- SNMP / NTP / CLI Remote Management: Centralized device configuration, firmware updates, and event logging without serial console or on-site access. NTP keeps distributed recording timestamps synchronized—essential for multi-camera forensic reconstruction. SNMP traps alert your NOC when cellular signal degrades or WAN link fails.
- DIN Rail Mount, Standard Cabinet Integration: 35mm DIN rail attachment requires no custom fabrication or shelving. Plugs directly into standard 19-inch telecom equipment racks, utility cabinet rails, and pole-mounted enclosures. Installation labor aligns with standard electrical work, not custom AV rigging.
- 5-Year Manufacturer Warranty: Extended warranty cycle means parts and firmware support through the device lifecycle. Field replacement is straightforward—no orphaned hardware 18 months after discontinuation.
Deployment Considerations:
- Cellular carrier selection and data plan management are separate from the hardware purchase. Confirm your site's carrier coverage before deployment—the IX30-00P7 will negotiate whatever carriers and bands are available in a region, but if no signal exists, the device cannot create one. Site RF survey is mandatory before cabinet installation.
- The 10/100 Ethernet backplane is adequate for 2–4 concurrent HD camera streams at 2–4 Mbps, or a single 4K stream at 8–10 Mbps. Environments demanding higher throughput (multiple 4K cameras, heavy NVR replication) require a second IX30 unit or a larger cellular gateway solution.
- DIN rail mounting assumes a standard telecom cabinet or pole-mount enclosure. Non-standard field installations (wall-mounted plastic boxes, outdoor unshielded pole mounting) require additional environmental and RF shielding engineering. Factor environmental protection into the integration scope.
- NTP synchronization and SNMP management assume IP connectivity from the NOC to the router. If the remote site is firewalled behind a customer gateway or private carrier network, configure WireGuard or IPSec VPN tunnels to maintain management plane reachability.
- Power supply (18VDC, available separately) must be sized for peak transient current during cellular transmission. Undersized or aging power supplies cause intermittent cellular modem resets. Use the Digi recommended 76002117 PSU or equivalent for field installations.
The IX30-00P7 is the right choice for integrators building remote surveillance or access control networks where fiber and broadband are absent or cost-prohibitive—utility sites, rural retail chains, distributed municipal infrastructure. If your customer has multiple locations beyond cable-modem reach, the DIN rail form factor and managed failover make operational support sustainable. Explore the full Digi International catalog for additional gateway and modem solutions.
