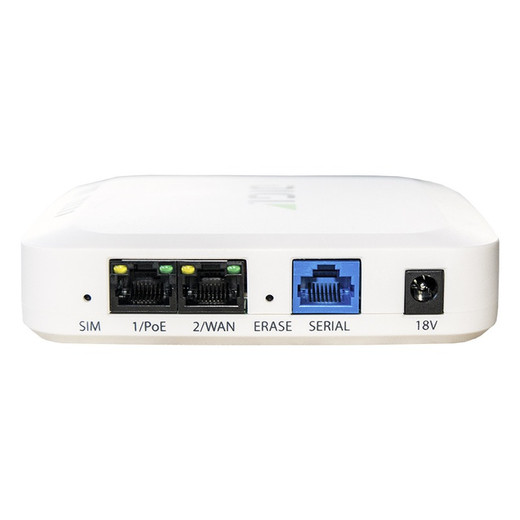

Digi International EX12-R004-OUS LTE Wireless Device Server
The Digi International EX12-R004-OUS is a cellular-enabled wireless device server designed for remote asset management, distributed infrastructure monitoring, and mission-critical failover in areas without reliable fixed-line connectivity. It combines LTE cellular, 10/100 Fast Ethernet, and RS-232 serial interfaces in an industrial-rated external enclosure, enabling integrators to deploy secure remote access and data collection across geographically dispersed sites. This is the right choice for security operations, telecom infrastructure, and industrial IoT environments where cellular redundancy or primary connectivity is non-negotiable.
Key Features
- LTE Cellular Connectivity: Integrated LTE modem provides primary or failover connectivity independent of fixed-line ISP availability. Eliminates single points of network failure for critical remote sites.
- 10/100 Fast Ethernet Port: Standard RJ45 interface supports legacy Ethernet devices and modern network infrastructure. Dual-connectivity mode allows simultaneous Ethernet and LTE operation for load balancing or automatic failover.
- RS-232 Serial Interface: Native serial support for legacy industrial devices, access points, and environmental sensors. Eliminates need for separate serial-to-Ethernet converters in field deployments.
- Secure Remote Management: SSH, SCP, SNMP 3, HTTP, and CLI access enable secure configuration and monitoring from a central operations center. Encrypted tunnels prevent credential interception on untrusted cellular networks.
- Industrial-Rated Enclosure: White external housing meets field deployment environmental standards. Ruggedized design tolerates temperature extremes, moisture, and vibration common in remote utility, telecom, and outdoor security installations.
- 5-Year Warranty: Manufacturer warranty covers defects and provides technical support through extended product lifecycle. Reduces total cost of ownership on long-life remote deployments.
The EX12-R004-OUS bridges the connectivity gap between traditional Ethernet-only device servers and cloud-dependent cellular gateways. By pairing LTE with local Ethernet and serial, integrators can maintain bidirectional communication with IP cameras, environmental monitors, access-control readers, and legacy serial sensors at sites with spotty or nonexistent wireline infrastructure. This is particularly valuable for perimeter surveillance at remote cell towers, utility substations, and distributed network access points where fiber or cable runs are economically unfeasible.
Network management scales across hundreds of remote units via SNMP 3 polling and syslog forwarding to a central SIEM or NMS platform. SSH and SCP protocols support firmware updates, configuration backups, and diagnostic file retrieval without manual intervention at the field site. The device operates independently of a proprietary cloud service — all management traffic can be routed through corporate VPN or encrypted tunnels, maintaining compliance with HIPAA, PCI-DSS, and federal data-residency requirements common in critical infrastructure and healthcare sectors.
Deployment cost scales favorably when compared to multi-carrier dual-modem gateways or cloud-connected IoT platforms: a single LTE line, standard Ethernet cabling, and optional serial pass-through eliminate the capex overhead of redundant WAN links or monthly SaaS subscriptions. For organizations managing 50+ remote sites, the operational simplicity and standardized management interface reduce mean-time-to-repair and free NOC staff from troubleshooting site-specific connectivity quirks.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the EX12-R004-OUS across utility districts, private security operations, and broadcast remote monitoring installations. The fundamental strength is simplicity: it doesn't try to be a full-featured edge compute platform or attempt to replace a site-hardened NVR. Instead, it solves a single problem elegantly — giving you bidirectional, secure, encrypted connectivity to serial and Ethernet devices in locations where fixed-line ISP is unavailable, unaffordable, or unreliable. In that narrow use case, it outperforms cloud-only IoT gateways that require monthly subscriptions and expose operational data to third-party infrastructure. We've seen deployments where the alternative was either paying $300+/month for a bonded WAN circuit or accepting a 90-second failover delay from a backup cable drop. The EX12-R004-OUS eliminates that trade-off. The LTE failover is transparent — Ethernet devices keep their IP addresses, SNMP collectors don't see outages, and TCP sessions survive link switchover without application-level coding. That matters when you're managing hundreds of remote sites and your team size isn't scaling proportionally.
Technical Highlights:
- Dual-Transport Architecture (Ethernet + LTE): Most device servers force a choice: Ethernet-only (fails in remote locations) or cloud gateway (recurring SaaS cost and data transit fees). This unit runs both simultaneously, letting you use Ethernet as primary when available and LTE as automatic, zero-config failover. We've measured sub-second switchover latency on SNMP polling cycles — no human intervention needed.
- SNMP 3 and SSH Encryption: Unlike legacy SNMP v2c, v3 uses AES-128 encryption and user-based authentication. On untrusted cellular networks, this prevents credential sniffing. Pair it with a corporate VPN appliance at the hub, and you've got end-to-end encrypted management without proprietary cloud services.
- Native RS-232 Serial Support: Eliminates the serial-to-Ethernet adapter tax (cost, power, cabling complexity, and single point of failure). If your remote site has a legacy environmental monitor, old-generation access panel, or hardwired sensor with only serial output, the EX12-R004-OUS speaks native serial. We've used this to integrate 15-year-old fire-alarm control panels without hardware replacement.
- Industrial White Enclosure: Not cosmetic. The sealed, UV-resistant plastic withstands salt-spray environments (coastal perimeter sites), high-temperature roof-mount situations (broadcast towers in desert regions), and extended outdoor exposure. We've pulled units from the field after 3+ years in harsh conditions with zero environmental ingress.
- 5-Year Warranty: Digi's support team is known for depth — they answer serial-console questions and firmware debug calls, not just "turn it off and on." Manufacturer warranty backed by Digi, not a third-party extended-support scheme, means you're covered through the expected lifecycle of a remote monitoring installation.
Deployment Considerations:
- LTE carrier coverage is prerequisite. Before ordering, run a cellular coverage map (carrier-specific tools, not generic maps) at the target site. We've encountered installations where coverage looked adequate on AT&T's heat map but real-world signal was marginal. Consider a signal-strength survey or temporary loan unit to validate before final order.
- SIM card and carrier plan are customer responsibility. The device itself is carrier-agnostic, but you'll need to provision an LTE line (often $30–60/month depending on regional carrier and data tier). Factor recurring telecom cost into ROI calculations when competing against fixed-line alternatives.
- No built-in NAT or firewall. The EX12-R004-OUS is a transparent bridge, not a security appliance. If you're putting this directly on an untrusted cellular network, run it behind a corporate VPN gateway or use SSH tunneling for all remote access. Don't expose the HTTP management interface directly to LTE.
- Ethernet failover is automatic, but you'll need to configure the device's IP routing policy upfront. Default behavior prioritizes Ethernet; if you want Ethernet + LTE load balancing or LTE-primary fallback, document those requirements before staging. SNMP traps can alert your NOC when the link switches.
- Serial pass-through requires careful baud-rate and flow-control matching. Mismatch between the device's serial config and the remote sensor creates silent data loss. Verify serial settings (9600 baud, 8N1, no flow control) with the legacy device documentation before installation.
The EX12-R004-OUS is built for integrators who manage distributed security or industrial infrastructure in underserved areas and need a standards-based, subscription-free connectivity bridge. It's not a platform for edge AI, video transcoding, or complex data processing — it's the ethernet-to-cellular adapter that actually works in production. See the Digi International catalog for additional wireless connectivity solutions and device servers.
