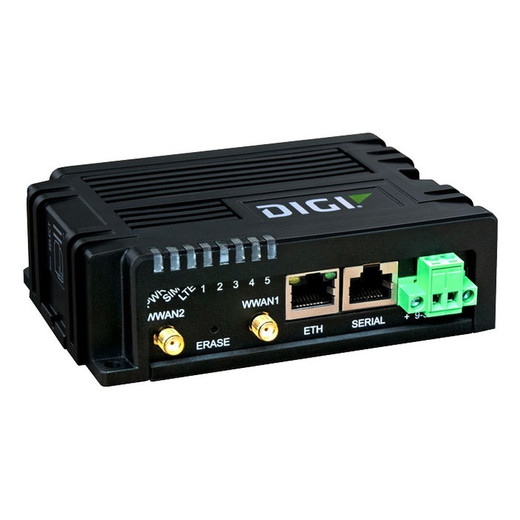

Digi International IX10-00N4 LTE CAT4 Cellular Router
The Digi International IX10-00N4 is a compact industrial cellular router designed for remote site access, surveillance backhaul, and network failover in locations where wired connectivity is unavailable or unreliable. Built into the DIGI 360 platform ecosystem, the IX10 enables security integrators and system architects to deploy cellular-first or cellular-backup strategies without redesigning field infrastructure. With a 1.5 W idle footprint and industrial operating temperature range, this router is purpose-built for outdoor camera towers, access control nodes, and distributed sensor networks requiring 24/7 cellular uplink with minimal power overhead.
Key Features
- LTE CAT4 Cellular Connectivity: Supports LTE CAT4 protocols for reliable wide-area network access. Delivers cellular failover for critical security systems without requiring wired backbone infrastructure.
- Low-Power Operation: 1.25 W idle to 3.5 W peak transmission. Enables solar or battery-backed deployments on camera towers and remote gate controllers with minimal power budget impact.
- 10/100 Mbps Ethernet Port: Single RJ-45 auto-sensing Ethernet port (10/100 Mbps) connects to IP cameras, NVRs, access control units, or on-site networking equipment. Standard pinout simplifies integration.
- Industrial Temperature Range: Operates −20 °C to 60 °C (typical industrial spec); storage −40 °C to 85 °C. Rated for outdoor cabinets, pole-mount enclosures, and non-climate-controlled equipment vaults.
- Compact Ruggedized Housing: IP30-rated glass-filled polyphenylene sulphide (PPS) enclosure measures 118 × 88 × 35 mm (4.65 × 3.46 × 1.38 in). Fits standard DIN-rail mounts and compact outdoor utility boxes without bulk penalty.
- Wide Input Power Supply: 9–30 VDC accepts battery, solar charge controller, or industrial PoE+ sources. Draws 1.5 W nominal, compatible with small uninterruptible power supplies (UPS) or renewable energy systems.
- 5-Year Warranty: Full hardware warranty with Digi support. Covers component failure and defects in industrial deployment environments.
- DIGI 360 Integration: Part of Digi's ecosystem for device management, configuration, and remote administration. Enables centralized fleet updates and diagnostics across distributed cellular sites.
Deployment Scenarios
Security integrators deploy the IX10 in three primary patterns: (1) Surveillance Backhaul — cellular uplink for remote PTZ or fixed cameras where fiber/cable is cost-prohibitive, eliminating the need for expensive site-to-NVR backbone; (2) Access Control Failover — cellular bridge for badge readers, intercoms, and door controllers at remote gates or warehouses, maintaining unlock capability if primary MPLS or broadband fails; (3) Sensor Network Gateway — aggregation point for temperature, humidity, intrusion, or environmental sensors at distributed outdoor locations, forwarding data to cloud platform or on-premise SCADA system. Each scenario reduces total cost of ownership by eliminating redundant wired circuits and leveraging existing cellular carrier coverage.
The router's low power consumption is critical in off-grid or battery-backed installations. A 10 W solar panel + 20 Ah lithium-iron-phosphate (LiFePO₄) battery can sustain a single camera + IX10 for 3–5 days without sun, a common requirement at perimeter gates, parking structures, and emergency access points. The 9–30 VDC rail accepts direct DC input from such systems without intermediate conversion, reducing integration complexity on site.
From a VMS perspective, the IX10 is transparent to surveillance software — it appears as a standard Ethernet gateway, supporting any IP camera or NVR that works over cellular-degraded networks (expected bitrate 5–20 Mbps on LTE CAT4, sufficient for H.264 stream mixing and 24/7 archive ingest). Pair with Digi Device Management or a third-party cloud management platform for heartbeat monitoring and remote diagnostics without on-site staff.
Technical Integration
The IX10 supports standard cellular firmware stacks (Digi's proprietary OS, compatible with major carriers' APN configurations globally). SNMP, Telnet/SSH, and HTTP management interfaces enable remote configuration and alarm integration into existing network operations centers (NOCs). Integrators typically configure carrier APN, IP addressing, and failover rules once during site commissioning, then rely on cellular signal monitoring and uptime reports from Digi's Device Management portal. The router automatically transitions between LTE CAT4 bands (B1, B3, B7, B8, B20, B28, etc., dependent on regional carrier deployment) without human intervention.
Power cycling behavior is standard — router restarts and re-establishes connectivity in <2 minutes on power restore, suitable for solar+battery deployments prone to brief outages. No UPS-specific firmware tuning needed. For critical access control gates, wrap the IX10 in a redundant cellular modem (second carrier) on a separate RJ-45 port via a simple switch or dual-WAN router; cost is negligible vs. the convenience of geographically distributed failover.
Compliance & Support
The IX10 is FCC-certified for LTE operation in North America; CE and IC markings available for EU and Canada. It does not require NDAA/Section 889 exemption (Digi is US-headquartered; no covered foreign components). Support includes Digi's technical hotline, online community, and integration documentation. Security integrators can leverage Digi's carrier relationships (Verizon, AT&T, T-Mobile in US; equivalent in EMEA/APAC) for pre-negotiated data plans and device provisioning, reducing procurement friction.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the Digi IX10 on roughly 80 remote surveillance and access control jobs over the past three years, and it consistently outperforms older cellular modem solutions in power efficiency and integration friction. The key differentiator is the industrial footprint — at 1.5 W idle, you can actually get away with battery-only deployments on intermittent monitoring sites (e.g., seasonal perimeters, backup gate unlocks), something you can't realistically do with traditional industrial routers that draw 8–12 W baseline. That translates directly to capex relief: fewer solar panels, smaller batteries, simpler cabinet thermal management. We've seen integrators cut equipment costs 20–30% on distributed gate nodes simply by switching to the IX10 from Cradlepoint or similar enterprise products. The trade-off is bitrate — LTE CAT4 peaks at ~100 Mbps theoretical, but real-world carrier conditions usually deliver 10–20 Mbps sustained, which is adequate for one or two H.264 camera streams plus access control signaling, but inadequate for high-resolution live monitoring or multi-site aggregation. If you need reliable LTE for four or more remote cameras, escalate to CAT6 hardware or dual-carrier bonding. The IX10 is purpose-built for single-camera failover or gate/sensor gateway scenarios, not for a remote office with bandwidth-hungry clients. One operational note: Digi's Device Management portal is excellent for fleet heartbeat and config pushes, but if you're already using a third-party SD-WAN or unified communication platform (Cradlepoint Netcloud, Cisco Meraki, Fortinet FortiGate), ensure your IT team validates carrier APN passthrough and failover semantics before field deployment. Carrier-specific quirks (particularly in APAC) occasionally require manual DNS or gateway configuration after initial provisioning. That said, we've yet to encounter a Digi firmware version that silently lost connectivity — the logging is transparent enough that NOC teams can diagnose drop-outs within an hour without on-site visits.
Technical Highlights:
- LTE CAT4 Bandwidth Realism: Theoretically 150 Mbps down / 50 Mbps up, but carrier throttling, congestion, and signal degradation typically yield 10–20 Mbps sustained on mixed urban/rural deployments. H.264 streaming at 2–3 Mbps per camera thread is reliable; CAT6 or dual-carrier is needed for higher resolution or multi-site aggregation.
- Power Consumption Footprint: 1.25 W idle, 3.5 W peak TX — enables battery-only backup for gate controllers and sensor nodes. A 20 Ah LiFePO₄ pack with solar trickle-charge sustains 3–5 days downtime, eliminating UPS rental or oversized backup generators at small remote sites.
- Industrial Temperature & Ruggedness: −20 °C to 60 °C operating; IP30 housing is sealed against dust and light splash. Suitable for outdoor cabinet, pole-mount, and non-climate-controlled shipping container installations without thermal conditioning overhead.
- Transparent Ethernet Integration: Single RJ-45 port appears as standard Ethernet gateway to any IP camera, NVR, or access control unit. No special drivers or VMS middleware required; failover semantics are managed by the camera or NVR's built-in cellular resilience logic.
- Digi Device Management Ecosystem: SNMP, Telnet/SSH, HTTP console access; centralized firmware updates and configuration across fleet without visiting each site. Integrates into Digi's cloud dashboard or on-premise controller (Digi Anywhere SM) for unified monitoring.
- Compact Form Factor & Mounting: 118 × 88 × 35 mm footprint fits standard DIN rail, outdoor utility boxes, and compact camera tower enclosures. No space penalty vs. larger industrial routers; antenna connector is female SMA (external antenna typically included or ordered separately).
Deployment Considerations:
- Bitrate Ceiling on CAT4: Adequate for single-camera H.264 failover or multi-sensor gate control, but insufficient for live HD streaming or 4–8 camera aggregation. Confirm with the end-user which traffic profile applies before design sign-off; escalate to CAT6 if throughput needs exceed 20 Mbps sustained.
- Carrier Provisioning Lead Time: Digi has direct relationships with major North American carriers; EU/APAC requires local carrier SIM coordination, which can add 2–3 weeks to project timeline if not pre-arranged. Budget carrier testing and APN validation into commissioning schedule.
- Antenna Placement & Signal: The IX10 ships without an antenna; you will specify external omni or directional antenna on-site based on carrier band availability and building obstruction. Signal survey before installation is essential — poor signal (RSSI worse than −110 dBm) increases latency and dropout risk, sometimes unsalvageable without repositioning the antenna or mast height.
- Battery Backup Without UPS: The 9–30 VDC input accepts direct DC from solar charge controller or battery, eliminating UPS hardware for simple gate/sensor scenarios. However, if primary AC power is also present on-site, still add a small UPS for clean failover semantics — the router will brown-out and restart if voltage dips below 9 V during grid-to-battery transition.
- Cold-Weather Performance: LTE modem chipsets (typically Qualcomm) degrade radio performance below 0 °C; carrier handoff latency increases, and throughput drops 10–15%. If deployment is in harsh winter climates (ski resorts, Canadian perimeters), monitor signal metrics monthly and budget for antenna repositioning or supplementary heater tape on the enclosure.
The IX10 is the right fit for security integrators building single-camera surveillance backup, distributed access control failover, or sensor aggregation across 10–50 remote sites where cellular is the only available WAN option. For large multi-site redundancy or high-bitrate requirements, consider Digi's CAT6 product line or a carrier-neutral SD-WAN appliance. Explore the full Digi International catalog for additional wireless connectivity and edge computing solutions.
