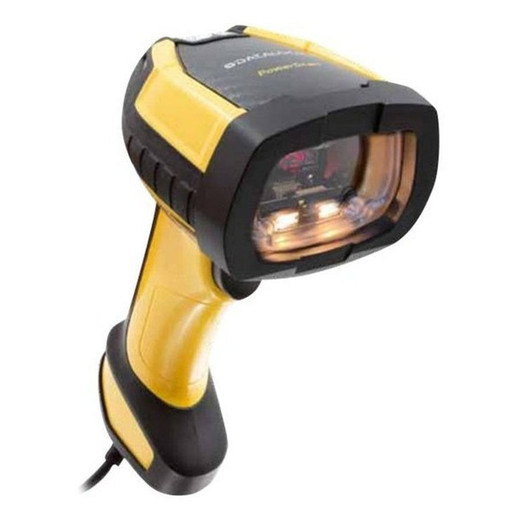

Datalogic PowerScan 9600 Industrial Handheld 2D Barcode Scanner – PM9600-SR433RB
The Datalogic PowerScan 9600 Series is a rugged industrial-grade handheld barcode scanner engineered for demanding manufacturing, logistics, transportation, and healthcare environments. Built on a proven platform, the PM9600-SR433RB delivers high-performance 2D area imaging with IP65 environmental sealing and 2.5 m drop resistance, enabling reliable operation on production floors, warehouse facilities, and field operations where equipment durability is non-negotiable.
Key Features
- 2D Area Imager technology for fast, accurate barcode capture across multiple symbologies
- IP65 sealed construction protects against dust and moisture ingress in harsh industrial environments
- 2.5 m (8.2 ft) drop resistance engineered for accidental impacts on concrete and hard surfaces
- Bluetooth 5.0 wireless connectivity with optional STAR 433/910 MHz radio for extended range and reliability
- Multiple connectivity options: USB, RS-232, Bluetooth, and STAR Radio for flexible integration
- 10 million trigger press durability ensures long operational lifespan with minimal maintenance
- Datalogic Green Spot good-read feedback for instant visual confirmation of successful scans
- Compact ergonomic design at 440 g (0.97 lb) with dimensions 71 x 203 x 107 mm reduces operator fatigue
- Wide industrial operating temperature range for reliable performance in diverse facility conditions
Technical Specifications
The PowerScan 9600 series combines enterprise-class scanning performance with industrial durability. The 2D area imager provides superior depth of field and read rates compared to traditional laser scanners, enabling simultaneous capture of standard barcodes and 2D codes. IP65 rating ensures protection against washdown environments and dusty operations. Bluetooth 5.0 delivers faster pairing, improved range, and reduced power consumption compared to earlier Bluetooth standards. The optional STAR radio (433 or 910 MHz) provides dedicated wireless infrastructure independent of facility Wi-Fi, critical for environments where network congestion or signal interference could disrupt scanning operations.
Applications
Ideal for warehouse receiving and shipping, manufacturing work-in-process tracking, cross-dock operations, asset management, and mobile healthcare documentation. The combination of wireless connectivity, rugged construction, and proven Datalogic imaging technology makes the PowerScan 9600 suitable for standardizing barcode capture across multi-facility enterprise deployments. Organizations benefit from simplified training, consistent spare parts inventory, and predictable total cost of ownership when deploying this platform across diverse operational use cases.
Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The PM9600-SR433RB represents a mature, field-proven scanner platform optimized for industrial environments where device reliability directly impacts operational throughput. The 2D area imager technology provides significantly faster read rates on damaged, wrinkled, or poorly printed barcodes compared to 1D laser alternatives, reducing scan failures and operator retry time. IP65 sealing without sealed battery compartments simplifies inductive charging and reduces maintenance complexity.
The 10 million trigger durability specification reflects real-world testing and translates to approximately 5–7 years of continuous daily use, a key consideration for high-volume scanning operations. Bluetooth 5.0 integration enables flexible wireless deployment strategies, while STAR radio options provide deterministic, interference-free operation where 2.4 GHz congestion is a concern. The 2.5 m drop specification and lightweight ergonomic design minimize operator fatigue and reduce downtime from device damage, supporting sustained productivity in demanding shifts.
1-Year Limited Warranty included.
