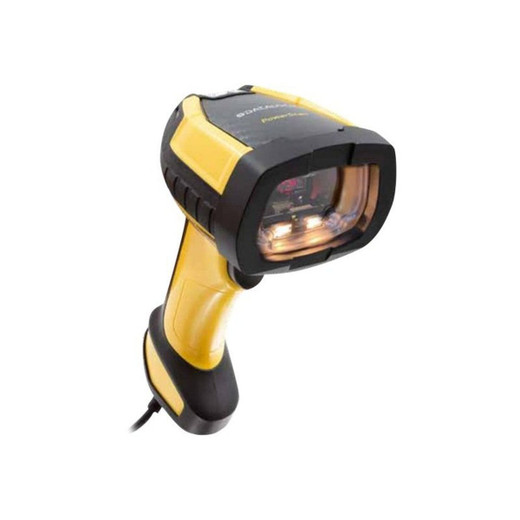

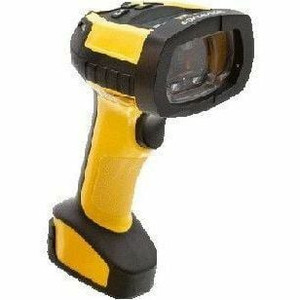

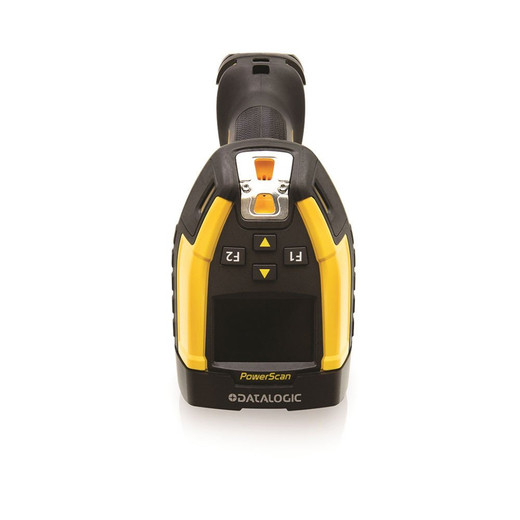

Datalogic PM9600-DHP910RB 2D Area Imager Industrial Barcode Scanner
The Datalogic PM9600-DHP910RB is a rugged handheld 2D area imager built for high-volume barcode capture in manufacturing, logistics, healthcare, and warehouse environments. This scanner delivers speed and accuracy across 1D and 2D codes—including damaged or poorly printed labels—without the optical limitations of laser scanners. Designed to survive the rough handling typical in industrial operations, the PM9600-DHP910RB combines physical durability with flexible connectivity and modern wireless capability.
Key Features
- 2D Area Imager: Reads standard and challenging barcodes (1D, 2D, postal codes) with fast performance. Area imaging outperforms laser scanners on degraded or misaligned labels—a real advantage in high-speed logistics sorting and warehouse picking where label quality varies.
- IP65 Environmental Sealing: Dust and liquid spray won't degrade performance. Skip this if you need full submersion (IP67+), but for wet warehouses, manufacturing floors, and dock operations, IP65 handles rain, washdown spray, and dust reliably.
- 2.5 m (8.2 ft) Drop Resistance: Device survives drops from waist height onto concrete or metal without damage—critical for high-velocity picking and sorting operations where scanners are used constantly and sometimes dropped.
- Bluetooth 5.0 Connectivity: Offers modern wireless with extended range and lower power consumption than Bluetooth 4.x. Optional STAR 433/910 MHz radio provides enterprise-grade range and RF interference resistance in dense RF environments (e.g., large manufacturing plants or multi-facility warehouses).
- Wired Connectivity Options: USB and RS-232 connections enable direct integration into legacy systems or fixed-position scanning stations. Flexibility to use the same hardware in mobile and fixed deployments.
- 10 Million Trigger Press Durability: Rated for extremely high-volume scanning scenarios. A device that survives this many trigger cycles reduces replacement frequency and training overhead in facilities that process thousands of items daily.
- Lightweight Form Factor: 440 g (0.97 lb) with compact dimensions (71 × 203 × 107 mm) reduces hand fatigue during long shifts and fits comfortably in cargo pockets or belt holsters—important for all-day picking and inventory operations.
- Datalogic Green Spot Feedback: Visual confirmation of successful read eliminates operator guesswork and speeds up high-volume transactions. Audio and vibration feedback options available for noisy environments.
- Wide Operating Temperature Range: Rated for industrial environments without requiring climate-controlled storage. Deploy in unheated warehouses, outdoor loading docks, and temperature-swinging facilities without performance loss.
- Inductive Charging (on supported configurations): Reduces device maintenance and fleet management overhead compared to docking stations or USB charging.
Integration & Compatibility
The PM9600-DHP910RB integrates into existing enterprise infrastructure via USB, RS-232, Bluetooth 5.0, or optional STAR radio. As part of the barcode scanner family, the standardized PowerScan 9600 platform enables consistent device management, spare parts strategies, and operator training across multi-facility deployments. Firmware updates and configuration tools support modern enterprise mobile device management (MDM) approaches.
Deployment Scenarios
Ideal for warehouse and inventory management (pick-to-light, cycle counting), manufacturing floor operations (work-in-process tracking), package sorting and shipping (parcel handling and manifesting), healthcare materials tracking (pharmaceutical and surgical supply management), and retail point-of-sale environments where barcode durability and speed matter.
Frequently Asked Questions
Q: What's the warranty on the PM9600-DHP910RB?
A: Backed by a 1-Year Limited Warranty covering defects in materials and workmanship.
Q: Can the PM9600-DHP910RB read damaged or faded barcodes?
A: Yes. The 2D area imager is designed to read challenging codes—damaged, faded, or misaligned labels that would fail a laser scanner. This is a key advantage in high-wear environments.
Q: Does the PM9600-DHP910RB work wirelessly?
A: Yes. Bluetooth 5.0 is standard, with optional STAR 433/910 MHz radio for longer range and interference resistance in large facilities.
Q: Is the PM9600-DHP910RB suitable for wet environments?
A: Yes. IP65 rating handles dust and liquid spray (washdown, rain, dock spray). Not rated for submersion—use IP67 or higher if full dunking is a requirement.
Q: How durable is the trigger mechanism?
A: Rated for 10 million presses, designed for high-volume capture. In facilities processing thousands of items daily, this durability translates to reduced replacement cycles and total cost of ownership.
Q: What's the weight, and does it cause hand fatigue during long shifts?
A: 440 g (0.97 lb) is lightweight by handheld scanner standards. Compact dimensions and ergonomic design minimize hand fatigue during all-day picking and counting operations.
The Datalogic PM9600-DHP910RB represents a straightforward engineering choice for high-volume barcode scanning in rough environments. The 2D area imager technology is the real differentiator here—it consistently reads labels that laser scanners simply won't touch: creased labels, faded UPC codes, thermal transfer print that's begun to degrade. If your operation involves heavy handling, stacking, or environmental stress on product labels, this imager advantage pays back quickly in reduced rescans and operator frustration.
Technical Highlights:
- 2D Area Imager vs. Laser: Handles 1D and 2D codes without the physical sensitivity of laser scanners. Real-world benefit in logistics: fewer read failures per 1,000 items scanned, which compounds to significant productivity gains across a warehouse.
- IP65 + 2.5 m Drop: Combined rating means device survives washdown floors and accidental drops without protective cases. Rugged design cuts total cost of ownership by eliminating frequent replacement and reducing downtime.
- 10 Million Trigger Cycles: In a high-velocity warehouse (picking 500+ items per shift), this durability means the device will outlast most competitors. Fewer device failures = lower spare inventory and training overhead.
- Bluetooth 5.0 + Optional STAR Radio: Bluetooth is fine for single-site deployments under 100 meters. STAR radio makes sense if you're scanning across a sprawling manufacturing campus or multi-building warehouse with RF dead zones—modern RF alternative to older 2.4 GHz radio protocols.
Deployment Considerations:
- IP65 handles spray and dust but not submersion. If items are dunked or scanners spend hours in standing water, specify IP67+ instead.
- The 440 g weight is competitive, but confirm ergonomics during a trial deployment if operators will scan 6+ hours per shift—lightweight matters when repetition volume is high.
- Wireless range depends on environment. In dense steel-frame warehouses or areas with heavy RF interference, confirm Bluetooth coverage with a site survey before full rollout. STAR radio adds cost but solves RF problems systematically.
The PM9600-DHP910RB is built for logistics hubs and manufacturing floors where label quality varies and handling is rough. If you're standardizing scanners across multiple facilities and need consistent hardware performance with minimal training churn, the PowerScan 9600 platform and its ecosystem of support tools deliver operational reliability without unnecessary feature complexity.
