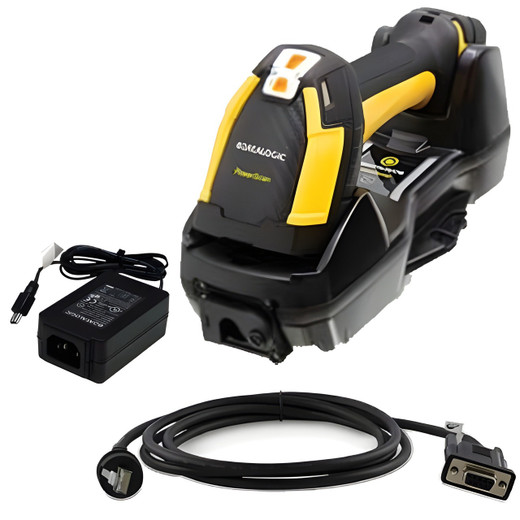

Datalogic PM9600-HP910RBK30 2D Area Imager Industrial Handheld Barcode Scanner
The Datalogic PM9600-HP910RBK30 is a rugged 2D area imager scanner purpose-built for high-volume barcode capture in manufacturing, logistics, healthcare, and warehouse environments. This model combines industrial durability with modern wireless capability, supporting both legacy infrastructure and contemporary mobile workflows without requiring a fleet overhaul.
Key Features
- 2D Area Imager Technology: Captures both linear (1D) barcodes and matrix codes (QR, Data Matrix) in a single device — eliminates the need for separate laser and 2D scanners, reducing inventory complexity and staff training burden across heterogeneous product lines.
- IP65 Ingress Protection: Sealed against dust and water spray without protective shrouds — operates reliably in wet picking areas, cold-storage facilities, and outdoor loading docks; reduces cleaning cycles and unplanned downtime typical of unsealed devices.
- 2.5 m (8.2 ft) Drop Durability: Withstands concrete-surface drops from shoulder height — common in fast-paced warehouse environments where devices are handled roughly; lowers replacement frequency and associated logistics disruption in high-utilization deployments.
- Bluetooth 5.0 Wireless Connectivity: Provides improved range and latency compared to Bluetooth 4.2 — especially valuable in large warehouse footprints or sites with RF congestion; enables mobile picking workflows without tethering operators to fixed readers.
- STAR Radio (433/910 MHz) Support: Offers alternative licensed-spectrum wireless for sites where unlicensed 2.4 GHz bands are saturated (hospitals, manufacturing plants); extends deployment flexibility without replacing docking infrastructure.
- USB and RS-232 Wired Interfaces: Integrates with legacy docking stations and WMS controllers using standard serial protocols — avoids costly middleware rewrites when retrofitting existing systems; reduces integration risk on mature warehouse operations.
- 10 Million Trigger Press Rating: Translates to 5–7 years of continuous heavy use in high-velocity picking environments — provides predictable replacement windows for lease-return and capital planning; typical laser-trigger scanners degrade sooner under sustained button fatigue.
- Datalogic Green Spot Feedback: Visual good-read confirmation reduces false captures and operator scanning errors — improves accuracy in cross-dock operations where speed and precision both matter; eliminates downstream data-quality exceptions.
- Compact Ergonomic Form (71 × 203 × 107 mm, 440 g): Lightweight handheld fits comfortably in small hands or gloved operation — reduces user fatigue on 8-hour picking shifts; lower weight also lowers risk of repetitive-strain injury when scanning 1,000+ items per shift.
Wireless and Wired Integration
The PM9600-HP910RBK30 balances modern wireless with backward compatibility. Bluetooth 5.0 enables real-time inventory updates and mobile applications, while USB and RS-232 connectors allow deployment into existing docking-station infrastructure without hardware replacement. STAR Radio variants extend coverage into RF-constrained industrial facilities where standard Wi-Fi or cellular backhaul is unavailable or unreliable.
When to Choose a Different Model
If your warehouse operates in extreme temperature ranges (below −10°C or above 50°C), or if you require imaging of microscopic serial numbers or pharmaceutical UID codes, consider a higher-resolution variant or a dedicated fixed-mount scanning system within the Datalogic industrial scanner line. The PM9600-HP910RBK30 is optimized for standard barcode geometries and moderate environmental swings; specialized applications may benefit from engineering consultation.
Frequently Asked Questions
Q: Is the PM9600-HP910RBK30 compatible with my existing WMS (Warehouse Management System)?
A: Yes, provided your WMS accepts standard USB HID or RS-232 input from handheld scanners. The PM9600-HP910RBK30 emulates both interfaces. If you operate a Bluetooth-native WMS, verify Bluetooth 5.0 profile compatibility with your software vendor before deployment.
Q: What is the warranty on the PM9600-HP910RBK30?
A: The unit includes a 1-Year Limited Warranty covering defects in materials and workmanship. Extended service plans are available through authorized Datalogic partners.
Q: Can the PM9600-HP910RBK30 read QR codes and Data Matrix codes?
A: Yes. The 2D area imager technology decodes both 1D linear barcodes and 2D matrix symbologies (QR, Data Matrix, PDF417) without configuration changes — a single device handles your entire barcode estate.
Q: What is the maximum read distance for the PM9600-HP910RBK30?
A: Read distance depends on barcode size and contrast. Standard UPC/EAN barcodes read reliably at 20–25 cm; larger or high-contrast codes read at greater distances. Consult application notes or conduct a site trial for your specific barcode geometry.
Q: Is the PM9600-HP910RBK30 rated for use in freezer environments?
A: The unit is rated for −10°C to 50°C operating temperature. Cold-storage facilities (−20°C or below) may experience condensation or performance degradation; verify thermal stability with Datalogic before deploying in ultra-low-temperature environments.
Q: Does the PM9600-HP910RBK30 support RFID or NFC reading?
A: No. This is a barcode-only imager. If you require RFID capability, consult the broader Datalogic handheld product range for integrated or complementary solutions.
Eden PhillipsPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The PM9600-HP910RBK30 is a pragmatic mid-market choice for warehouses and manufacturing sites that need ruggedness without over-engineering. The 2D area imager architecture is inherently faster and more flexible than older linear-laser designs — you decode both UPC and QR codes in a single scan, which streamlines picker training and eliminates device sprawl across mixed-barcode environments.
Technical Highlights:
- IP65 Sealing + 2.5 m Drop Rating: Together, these specs enable deployment in wet docks and rough-handling environments without protective covers or expensive ruggedized enclosures. However, sealing integrity should be verified visually after high-impact drops or extended solvent exposure — the gaskets are rated for normal industrial conditions, not chemical baths.
- 10 Million Trigger Press Cycle Rating: This translates to roughly 5–7 years of daily use in fast-paced picking operations. By contrast, consumer-grade barcode readers often fail around year 3. Plan replacement cycles accordingly and factor this into lease-vs.-purchase decisions.
- Bluetooth 5.0 with STAR Radio Fallback: Bluetooth 5.0 provides ~240-meter range in open space and lower latency than 4.2; however, RF-dense facilities (large hospitals, plants with machinery) benefit from a site survey. STAR Radio (433/910 MHz) is available as a fallback but requires separate infrastructure — budget accordingly if you're migrating from legacy readers.
Deployment Considerations:
- Verify docking-station compatibility before rollout. This unit works with USB and RS-232 cradles, but older proprietary Datalogic connectors will require an adapter.
- The −10°C to 50°C operating range handles most warehouses, but cold-storage operations below −15°C should pilot-test a unit first to confirm condensation behavior on the imager lens.
- Good-read feedback (Green Spot) is visual-only; if your environment is extremely noisy or your operators use hearing protection, ensure a secondary audio cue is configured in your WMS or docking software.
The PM9600-HP910RBK30 is ideal for high-velocity cross-docks, e-commerce fulfillment centers, and manufacturing lines where 1D/2D barcode agility and drop durability matter more than cutting-edge imaging resolution. Not a fit for specialized applications like pharmaceutical UID micro-printing or outdoor weatherproof mounting — for those, engage Datalogic's consulting team.
