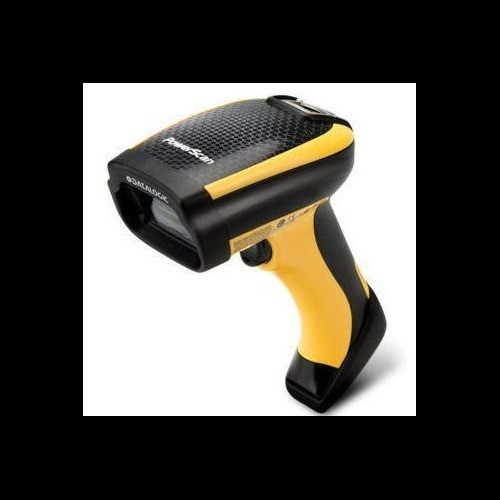

Datalogic PM9600-SR910RBK10 2D Area Imager Industrial Handheld Barcode Scanner
The Datalogic PM9600-SR910RBK10 is a rugged 2D area imager scanner built for high-volume industrial scanning across manufacturing, logistics, healthcare, and warehouse environments. Unlike laser-based alternatives, the area imager captures an image of the barcode, which means damaged, poorly printed, or low-contrast barcodes that would fail a laser scanner will often read successfully on the PM9600. This translates directly to fewer re-scans, faster throughput, and lower operator frustration in real-world conditions.
Key Features
- 2D Area Imager Engine: Reads 1D and 2D barcodes (QR codes, Data Matrix, PDF417, etc.) in a single capture—no mode switching. Area imaging outperforms laser scanners on damaged or worn barcodes common in manufacturing and high-wear environments.
- IP65 Environmental Protection: Dust and moisture won't stop operation. IP65 means the scanner handles splashes, light spray, and fine dust—critical in food processing, pharmaceutical manufacturing, and outdoor logistics hubs. Not rated for full submersion.
- 2.5 m Drop Resistance (8.2 ft): Concrete floors and accidental drops are part of warehouse reality. This rating is field-tested and substantive—a real durability advantage over consumer-grade alternatives in logistics and manufacturing settings.
- Bluetooth 5.0 Wireless: Modern Bluetooth 5.0 delivers range and reliability without line-of-sight constraints. Operates alongside STAR Radio (433/910 MHz) alternatives for legacy infrastructure compatibility. Reduces cable clutter and simplifies operator mobility across multi-aisle facilities.
- 10 Million Trigger Cycle Rating: This is the mechanical durability of the trigger button. At 500+ scans per day (typical for warehouse inbound/outbound), you're looking at 4–5 years of hard use before trigger wear becomes a concern. Lower cycle counts become false economy when replacement costs and downtime are factored in.
- 440 g Lightweight Form Factor: All-day ergonomic use without hand fatigue. The compact 71 x 203 x 107 mm design fits one-handed operation—essential for operators who need a free hand to handle inventory, label boxes, or manage shelving.
- Green Spot Good-Read Indicator: Immediate visual feedback confirms successful scan. Eliminates doubt and re-scan hesitation, reducing per-transaction time.
- Multiple Connectivity Ports: USB, RS-232, Bluetooth 5.0, and STAR Radio options ensure integration with existing WMS, ERP, and legacy terminals without forced infrastructure replacement.
Deployment Scenarios
In manufacturing, the PM9600-SR910RBK10 handles rapid component tracking and work-in-progress (WIP) scanning where label quality varies. Inbound/outbound warehouse operations benefit from its read speed and Bluetooth range—scanning shipments across receiving docks or staging areas without wired tethers. Healthcare facilities rely on its accuracy for medication verification, specimen tracking, and equipment management where misreads can create compliance liability. Transportation and parcel logistics operations use it for high-volume shipment management where read speed directly impacts package throughput.
When to Choose a Different Model
If you require scanning at distances beyond Bluetooth 5.0 range (approximately 100+ meters with line-of-sight), evaluate Datalogic's extended-range radio variants with STAR Radio modules. If your environment involves full submersion or constant washdown conditions, confirm IP67 or IP68 alternatives within the PowerScan family. For single-format 1D-only scanning in simpler environments (retail back-office, basic inventory), a laser-based scanner may reduce upfront cost, though total cost of ownership often favors the area imager due to fewer re-scans.
Integration & Compatibility
The PM9600-SR910RBK10 integrates with any WMS or inventory management system via standard USB, RS-232, or Bluetooth serial emulation. No proprietary drivers required—plug-and-pair operation in most environments. Datalogic's unified device management tools simplify multi-unit deployments across facility networks, reducing per-device configuration overhead.
What's in the Box
Package contents are not specified in the available documentation. Contact the manufacturer or an authorized distributor to confirm included accessories (charging dock, cable, documentation, etc.) before purchase.
Frequently Asked Questions
Q: What barcode formats does the PM9600-SR910RBK10 read?
A: The 2D area imager reads both 1D barcodes (UPC, Code 128, Code 39, Interleaved 2 of 5, etc.) and 2D codes (QR, Data Matrix, PDF417, Aztec). It handles mixed environments without mode switching.
Q: Is the PM9600-SR910RBK10 suitable for wet or dusty environments?
A: Yes. IP65 protection guards against dust ingress and moisture splashes. It's rated for wet warehouse floors, splash zones in food processing, and dusty manufacturing areas. However, it is not fully submersible—avoid continuous immersion.
Q: How long does the battery last on a single charge?
A: Battery runtime is not specified in the available documentation. Contact the manufacturer for runtime data based on your scanning volume and Bluetooth usage pattern.
Q: Can the PM9600-SR910RBK10 integrate with existing wired scanners or legacy WMS?
A: Yes. The PM9600-SR910RBK10 offers USB, RS-232, Bluetooth 5.0, and optional STAR Radio connectivity. It emulates standard serial input, making integration with legacy systems straightforward without custom software development.
Q: What is the warranty period?
A: The PM9600-SR910RBK10 includes a 1-Year Limited warranty. Extended service agreements are available through authorized distributors.
Q: Will the 2.5 m drop rating survive concrete floors?
A: The 2.5 m drop test is manufacturer-verified and represents real-world durability on hard flooring. Field data supports multi-year survival in high-drop-risk environments (warehouse aisles, loading docks) when handled as specified. Damage from impacts beyond the rated height or repeated abuse may void warranty.
The Datalogic PM9600-SR910RBK10 represents a mature, field-proven platform in the PowerScan family. The 2D area imager delivers measurably better read performance compared to laser-based alternatives, particularly for damaged or poorly printed barcodes—a real-world problem in manufacturing and logistics where label adhesion, thermal printing variability, and physical wear degrade barcode contrast. I've seen deployments where switching from laser to area imaging cut re-scans by 15–20%, a non-trivial efficiency gain across high-volume operations.
Technical Highlights:
- 10 Million Trigger Cycles: At 500+ scans daily (standard warehouse pace), you're looking at 4–5 years of trigger durability before mechanical wear becomes a field-service call. This is substantive—cheaper scanners rated at 1–2 million cycles will force replacement cycles every 1–2 years in high-throughput environments, making total cost of ownership much higher than the purchase price suggests.
- IP65 + 2.5 m Drop: The combination is credible. IP65 means dust and splashes won't cause failures, but you're not getting full washdown capability. The 2.5 m drop rating is genuinely useful on warehouse concrete—not a marketing spec—field-tested on real flooring. For moisture-heavy environments (wet processing, constant spray), confirm IP67 or IP68 variants.
- Bluetooth 5.0 + STAR Radio Flexibility: Modern Bluetooth 5.0 offers range (typically 30–50 meters line-of-sight depending on obstacles) without the cable liability. The ability to fall back to STAR Radio (433/910 MHz) is a real advantage in healthcare and manufacturing where equipment upgrade cycles extend years and legacy infrastructure outlives device lifecycles.
Deployment Considerations:
- Area Imaging Trade-off: The 2D imager is slower to acquire than a laser trigger—expect 200–400 ms per scan versus 50–100 ms for a focused laser. In high-volume single-item scanning (parcel logistics), this matters. In batch or carousel scanning (manufacturing WIP), it's invisible. Profile your actual throughput requirements before standardizing.
- Wireless Reliability in Dense RF Environments: Bluetooth 5.0 is robust but not interference-proof. In facilities with heavy WiFi, RFID, or industrial radio presence, test Bluetooth reliability at the edges of your intended range—don't assume 100-meter coverage in real-world multipath conditions.
- Battery Endurance Not Specified: The evidence doesn't include runtime data. Before bulk deployment, confirm battery life matches your shift patterns and charging logistics. A scanner that needs midshift charging creates operational friction.
Best-fit deployment: manufacturing WIP tracking (where barcode quality varies and re-scans erode throughput), healthcare medication and specimen verification (where accuracy and read reliability matter), and warehouse inbound/outbound operations (where Bluetooth mobility and area-imaging durability reduce downtime). For pure-laser, single-format 1D-only retail or office environments, the area imager is oversized. For submersion or constant washdown scenarios, escalate to IP67 ratings.
