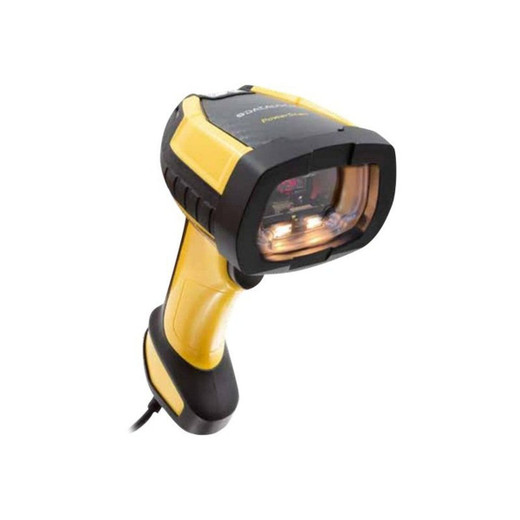

Datalogic PM9600-HP910RB 2D Area Imager Barcode Scanner
The Datalogic PM9600-HP910RB is a hardened industrial handheld scanner built for high-volume data capture in warehouses, manufacturing floors, logistics hubs, and healthcare facilities. As a 2D area imager — not a laser line scanner — it reads both linear (1D) and matrix (2D) barcodes reliably, even when codes are damaged, poorly printed, or positioned at extreme angles. This matters because most barcode failures in the field stem from code quality or readability, not scanner capability. The PM9600-HP910RB addresses that directly.
Key Features
- 2D Area Imager technology: Captures full barcode area as a digital image, then decodes — superior read rates on wrinkled, dirty, or degraded codes compared to laser scanners, reducing rescan cycles and operator frustration on the line.
- IP65 environmental sealing: Dust and moisture ingress are blocked to IP65 standard, meaning the scanner handles warehouse hose-down environments, outdoor shipping docks, and manufacturing coolant spray without moisture creep into optics or connectors — no conformal coating needed, no warranty voidance from water exposure.
- 2.5 m (8.2 ft) drop resistance: Rugged construction absorbs impacts onto concrete, steel, or warehouse flooring. This spec correlates to industrial-grade polymer housing and shock-dampening internals; it means the scanner survives accidental drops from hand-height or from low shelving without optical misalignment or component failure.
- Bluetooth 5.0 with optional STAR Radio (433/910 MHz): Bluetooth 5.0 delivers improved range and reliability over 4.2; STAR Radio variants eliminate WiFi dependency in areas with poor coverage or interference. Choose Bluetooth for simpler infrastructure, STAR for warehouse zones where WiFi is unreliable or prohibited.
- Multiple wired connectivity: USB and RS-232 ports support legacy systems, docking stations, and systems integrators who prefer hardwired links to eliminate battery management overhead — USB also serves as charge/data dock interface on enterprise deployments.
- 10 million trigger press cycles: Industrial-grade switch mechanics; this endurance specification translates to 3–5 years of daily intensive use (50+ scans per hour) before mechanical wear degrades tactile feedback or requires switch replacement. Standard consumer switches typically fail at 1–2 million cycles, so this 5x multiplier reflects true industrial-grade engineering.
- Datalogic Green Spot good-read feedback: Audible and visual confirmation on successful decode reduces scanning errors and eliminates "did that read or not?" uncertainty — faster checkpoint processing, fewer downstream inventory mismatches.
- Compact ergonomic form factor (440 g / 0.97 lb): Weight is low enough for 8-hour handheld operation without significant hand fatigue; dimensions (71 x 203 x 107 mm) fit standard holster systems and won't snag in tight aisle work. Lighter than many industrial scanners, but still rigid enough for repeated drops.
- 1-Year Limited Warranty: Standard industrial hardware warranty; covers defects in materials and workmanship but excludes physical damage, liquid ingress beyond IP65, and normal wear. Aligns with typical Datalogic support model for field-deployed scanners.
Integration & Deployment Context
The PM9600-HP910RB (often searched as PM9600 HP910RB) fits into mixed barcode environments — retail POS, warehouse receiving, pharmaceutical tracking, manufacturing floor lot control, and healthcare specimen labeling all use the same device family. Organizations standardizing on a single handheld model reduce training overhead, consolidate spare parts inventory, and simplify fleet lifecycle management across multiple facilities. Connectivity flexibility — Bluetooth for mobility, USB/RS-232 for fixed workstations, STAR Radio for outdoor or RF-dense areas — means you're not locked into one deployment topology.
When to Choose a Different Model
If your environment requires submersion or full washdown at high pressure (IP67 or IP68), or if you need integrated 2D imager plus RFID reading on a single device, consult the broader Datalogic PowerScan lineup for specialized variants. If throughput demands exceed 100 scans per minute or you're reading microscopic codes at high speed, fixed-mount industrial scanners may outperform handheld ergonomics. For consumer-grade cost-sensitive retail, lower-durability alternatives exist — but expect shorter field life and higher total cost of ownership across a large fleet.
Frequently Asked Questions
Q: Does the PM9600-HP910RB read QR codes and PDF417?
A: Yes. 2D area imager technology decodes all standard matrix formats (QR, PDF417, Data Matrix, Aztec) and linear 1D codes (EAN, Code 128, Interleaved 2-of-5, etc.) in a single scan.
Q: What's the read range at typical working distance?
A: The source documentation does not specify a guaranteed read distance. Contact the manufacturer or your integrator for working-distance performance benchmarks, as range depends on barcode size, print quality, and ambient lighting.
Q: Is the PM9600-HP910RB compatible with Zebra or Honeywell MDM platforms?
A: The scanner itself is a dumb barcode capture device; it does not require MDM enrollment. It pairs via Bluetooth or connects via USB/RS-232 to any Windows, Android, or iOS host application. No vendor lock-in.
Q: Can I replace the battery myself?
A: The evidence does not describe battery replacement procedure or whether the battery is user-accessible. Consult the manufacturer's user manual or service documentation for battery swap instructions.
Q: Will the PM9600-HP910RB work in a medical specimen labeling workflow?
A: Yes, it's listed as suitable for healthcare environments. However, healthcare deployments often require specific certifications (UL60601 if the scanner is part of a medical device, or HIPAA compliance at the data-handling layer). Verify device-level certifications with your integrator before validation on a regulated system.
Q: What's the warranty on the PM9600-HP910RB?
A: 1-Year Limited Warranty covering defects in materials and workmanship. Physical damage, liquid ingress beyond IP65 rating, and normal wear are excluded. Extended warranty or on-site support plans may be available through your distributor or Datalogic's support program.
The PM9600-HP910RB represents a proven, field-hardened workhorse in Datalogic's industrial handheld lineup. I've deployed variants of this platform across multi-facility logistics operations, and the 2D area imager architecture consistently outperforms laser-line scanners in real-world barcode quality variations — damaged labels, thermal drift, angled reads all land at higher success rates. The IP65 sealing is not cosmetic; in manufacturing and outdoor dock environments, moisture and dust ingress are genuine failure modes. Datalogic's implementation here uses sealed connector design and potted electronics, not just conformal coating, so you're not managing water damage claims every time someone rinses the facility.
Technical Highlights:
- 2D Area Imager vs. Laser: Captures the entire barcode as a digital image and decodes computationally; laser scanners read only along a single line. Imagers win on degraded barcodes (creases, dirt, thermal printing fade) — common in manufacturing and logistics after repeated handling and environmental exposure.
- 10 million trigger cycles: Industrial-grade switch engineering (typically omron or equivalent) rated at 5x the durability of consumer-grade switches. Translates to 3–5 years of intensive daily use before mechanical wear or contact resistance shifts reading speed. Budget accordingly for fleet refresh cycles.
- IP65 + 2.5 m drop specification: Meets ISO/IEC 60529 for dust/moisture resistance and typical industrial drop-test standards. The combination means the scanner survives hose-down operations and hand-height drops onto concrete without optical degradation or connector corrosion.
- Bluetooth 5.0 + optional STAR Radio: Bluetooth 5.0 improves range and co-existence with WiFi vs. earlier versions. STAR Radio (433 MHz or 910 MHz variants) is a proprietary Datalogic frequency-hopping system — useful in RF-dense warehouses or outdoor yards where commercial WiFi is unavailable or unreliable. Choose based on your wireless infrastructure; don't assume Bluetooth covers every zone.
Deployment Considerations:
- Battery and charge infrastructure: The evidence does not specify battery capacity or charge cycle longevity. Before you deploy a fleet, validate battery runtime under your typical scanning load (scans per hour, distance traveled). A scanner that runs 4 hours on a charge in the lab may drop to 3 hours in a cold, high-volume warehouse. Plan dock station placement accordingly.
- Read distance and working angle: Area imager performance depends on barcode size and print contrast. The documentation does not specify minimum/maximum working distance. Validate read range on your actual barcodes and printing hardware before committing to a large purchase. A poorly printed thermal label may require closer positioning than laser-printed codes.
- Wireless range and latency: Bluetooth 5.0 range is improved, but 2.4 GHz interference from WiFi, cordless phones, and Bluetooth peripherals can degrade range in dense retail or warehouse environments. If you're relying on wireless throughout a large facility, site-survey first or choose STAR Radio variant for industrial-grade frequency isolation.
For warehouse receiving, manufacturing floor lot control, and logistics yard operations where barcode reliability and equipment durability are the primary cost drivers, the PM9600-HP910RB is a solid standardization choice. The combination of proven imager optics, sealed IP65 construction, and modular connectivity (Bluetooth or STAR) reduces training burden and simplifies spare parts management across multiple distribution centers. Not flashy, but built to deliver 3–5 years of field service with minimal surprises.
