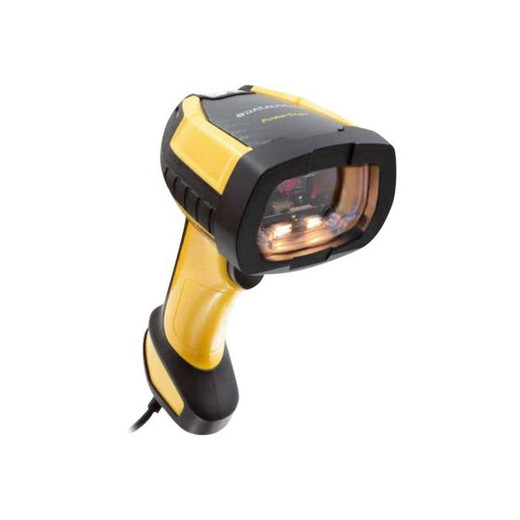

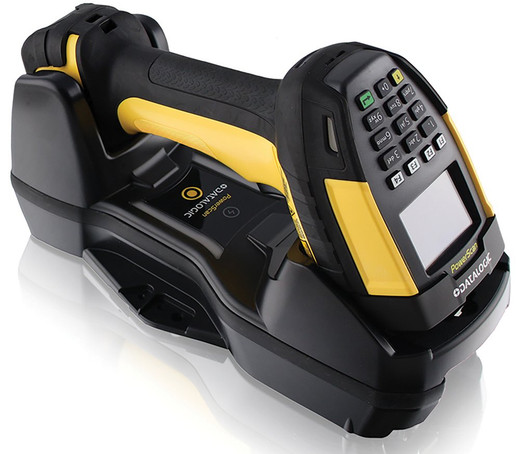

Datalogic PM9600-HP910RBK20 2D Area Imager Handheld Barcode Scanner
The Datalogic PM9600-HP910RBK20 is a rugged handheld barcode scanner engineered for high-throughput industrial environments where barcode read reliability directly impacts operational uptime. Built as a 2D area imager, the PM9600-HP910RBK20 captures both 1D and 2D barcodes at speed without the slow repositioning constraints of older laser scanners—critical when operators need to clear checkout queues, process inbound shipments, or verify serial numbers on production lines.
Key Features
- 2D Area Imager Technology: Reads 1D barcodes (UPC, Code128, etc.) and 2D codes (QR, Data Matrix, PDF417) in a single scan motion. No need to rotate the device to find the barcode orientation—the imager handles it automatically. This cuts scan time per item and reduces operator fatigue in high-volume environments.
- IP65 Sealed Enclosure: Protects against dust ingress and water spray—typical in warehouses with hose-downs, manufacturing floors with coolant mist, or logistics hubs with weather exposure at loading docks. IP65 is sufficient for most indoor industrial settings; if you need full submersion protection, you would require IP67 or higher.
- 2.5 m (8.2 ft) Drop Rating: Can survive a fall from roughly chest height onto concrete. This durability means fewer replacement units and lower per-unit total cost of ownership over a 3-5 year deployment. Industrial operators routinely subject scanners to rough handling; this rating reflects real-world reliability expectations.
- Bluetooth 5.0 Connectivity: Modern wireless protocol with improved range and power efficiency compared to older Bluetooth versions. Pairs with mobile carts, wearable scanners, and handheld computers without requiring cable tethers. Also supports wired USB, RS-232, and STAR Radio (433/910 MHz) options for legacy system integration where wireless isn't viable.
- 10 Million Trigger Press Durability: The trigger mechanism is rated for 10 million activations—equivalent to scanning roughly 30,000 items per day for a full year of continuous use. In high-velocity scanning (e.g., grocery checkout, parcel sorting), this lifespan directly reduces downtime and spare parts demand.
- Lightweight at 440 g (0.97 lb): Minimal weight reduces operator hand fatigue during full-shift scanning. Cumulative strain injuries from heavy handheld devices are a documented workplace issue; this design mitigates that risk while maintaining ruggedness.
- Green Spot Good-Read Feedback: Datalogic's proprietary visual confirmation—a green indicator illuminates on successful scan—ensures operators know immediately whether the code was read. Eliminates guesswork and rework from failed scans.
- Extended Operating Temperature Range: Operates across wide temperature swings typical of unheated warehouses, refrigerated logistics facilities, and outdoor shipping yards. Precise temperature range not specified in available evidence, but the design explicitly supports harsh industrial climates.
Integration & Connectivity
The PM9600-HP910RBK20 (often searched as PM9600 HP910RBK20) integrates with existing enterprise infrastructure through multiple wired and wireless pathways. USB and RS-232 connections interface with fixed checkout stations, warehouse management systems (WMS), and on-premises barcode databases. Bluetooth 5.0 enables mobile deployments—pairing with handheld computers on carts for real-time inventory updates. STAR Radio provides an alternative wireless protocol for environments where Bluetooth reliability is constrained by RF interference or legacy infrastructure standardization.
Typical Deployment Scenarios
Manufacturing & Inventory Control: Scan work-in-process (WIP) barcodes to track component flow, reduce serial-number transcription errors, and enable real-time shop-floor reporting. The fast 2D imager speed supports high-volume component receipt and kit assembly workflows.
Logistics & Parcel Handling: Deploy on conveyor lines, sorting hubs, or package-pickup stations. Wireless operation removes tether constraints on mobile sorting carts. IP65 protection handles package moisture and dock environment variability.
Healthcare & Specimen Tracking: Patient ID, specimen tube, and medication administration barcodes must be read correctly every time—mismatches create patient safety risks. The PM9600-HP910RBK20's reliable 2D capture and clear good-read feedback support these critical workflows.
Warranty & Support
Ships with a 1-Year Limited Warranty covering defects in materials and workmanship. Standard industrial warranty terms; extended coverage plans are typically available through resellers or the manufacturer.
The Datalogic PM9600-HP910RBK20 is a solid mature industrial scanner—not flashy, but engineered for environments where every scan counts and downtime is expensive. The 2D area imager eliminates the repositioning dance you get with older laser scanners, and the 10 million trigger durability is a tangible cost saver in high-frequency operations. IP65 sealing and the 2.5 m drop spec put this squarely in the warehouse/manufacturing segment, not the retail checkout space.
Technical Highlights:
- 2D Area Imager: Faster and more flexible than laser, especially in mixed barcode environments (1D codes on labels, 2D Data Matrix on components). No rotation required—scan at any angle and get a read.
- 10 Million Trigger Presses: In a high-volume operation (2,000+ scans per operator per day), this translates to roughly 14 months of continuous daily use before trigger replacement. Real operational ROI on durability.
- IP65 + 2.5 m Drop: Protects against moisture and impact—the two failure modes you see most in industrial settings. Not rated for submersion or extreme shock, so know your environment limits.
- Bluetooth 5.0 + Legacy Wired: Flexibility to deploy wireless now and fall back to USB/RS-232 if RF interference or legacy WMS connectivity demands it. Hedges deployment risk.
Deployment Considerations:
- IP65 is robust for most indoor industrial use, but not for frequent washdowns or submerged operation. If your application involves regular hose cleaning, verify that water spray exposure aligns with IP65 specifications—extended water immersion requires IP67.
- Bluetooth 5.0 range is better than Bluetooth 4.2, but industrial RF environments (metal shelving, electrical equipment) can degrade performance. Site survey before large-scale wireless rollout.
- Trigger durability is excellent, but the scanner body is still susceptible to impact damage outside the 2.5 m drop spec. This is a handheld industrial device, not a military-grade tactic, so handle it like professional equipment.
The PM9600-HP910RBK20 fits well in mid-to-high-volume manufacturing and logistics deployments where barcode read speed and device longevity matter more than premium aesthetics or exotic analytics. If you're scanning tens of thousands of items daily across a fleet of operators, the reliability metrics and low-fatigue design justify the hardware investment.
Frequently Asked Questions
Q: What barcode types does the PM9600-HP910RBK20 read?
A: As a 2D area imager, it reads both 1D barcodes (UPC, EAN, Code128, Code39, Codabar, Interleaved 2 of 5) and 2D codes (QR, Data Matrix, PDF417, Aztec, Maxicode). The specific list of symbologies supported depends on the firmware version and optional licensing; consult the manufacturer for a complete compatibility matrix.
Q: Is the PM9600-HP910RBK20 suitable for outdoor use?
A: IP65 protection handles outdoor weather exposure (rain, dust), but the scanner is optimized for industrial indoor environments (warehouses, manufacturing floors, logistics hubs). If your application involves extended direct sunlight or submersion, verify operational temperature and environmental limits with the manufacturer.
Q: Can I use the PM9600-HP910RBK20 with my warehouse management system?
A: The scanner supports multiple integration pathways: USB, RS-232, Bluetooth 5.0, and STAR Radio wireless. Integration depends on your WMS's supported input methods. Most modern WMS platforms accept USB keyboard emulation or serial data, making the PM9600-HP910RBK20 compatible with standard systems. Consult your WMS vendor for any custom driver or protocol requirements.
Q: What is the battery life on the PM9600-HP910RBK20?
A: Battery specifications are not included in the available technical evidence. Contact the manufacturer or an authorized distributor for detailed battery capacity, runtime, and charging specifications, as these vary by model configuration and usage intensity.
Q: Does the PM9600-HP910RBK20 support two-way communication or only barcode scanning?
A: The scanner is designed primarily for barcode capture. Two-way communication (e.g., wireless control, status messages back to the device) depends on the docking station and wireless protocol used. USB and RS-232 are typically one-way scan data paths; Bluetooth and STAR Radio may support bidirectional communication depending on the WMS or application software implementation.
Q: What is the warranty coverage for the PM9600-HP910RBK20?
A: The scanner includes a 1-Year Limited Warranty covering manufacturing defects. Extended warranty and support plans may be available through authorized resellers or the manufacturer—inquire for coverage periods and accidental damage options if durability is a concern.
