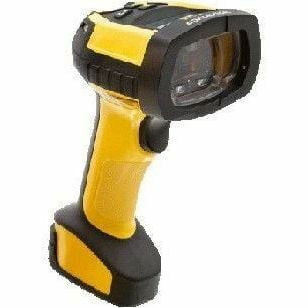

Datalogic PM9600-DKHP910RK10 2D Area Imager Barcode Scanner
Overview
The Datalogic PM9600-DKHP910RK10 is a ruggedized handheld 2D area imager designed for industrial barcode capture in demanding environments. Deployed across manufacturing lines, warehouse sorting operations, healthcare logistics, and transportation hubs, this scanner balances durability with flexibility—combining a sealed IP65 chassis with multiple connectivity options (USB, RS-232, Bluetooth 5.0, and optional STAR Radio at 433/910 MHz) to integrate into both legacy and modern infrastructure without forcing wholesale system replacements.
Key Features
- 2D Area Imaging Engine: Reads both 1D and 2D barcodes (QR, Data Matrix, PDF417) in a single scan, eliminating the need for dedicated 1D/2D scanner pairs and reducing operator confusion in mixed-barcode workflows.
- IP65 Environmental Rating: Sealed against dust and water spray—suitable for wet sorting floors, manufacturing environments with coolant mist, and outdoor receiving docks. Not waterproof for submersion; if you need to scan inside wash-down stations or liquids-heavy areas, an IP67-rated alternative may be required.
- 2.5 m (8.2 ft) Drop Durability: Survives accidental drops from typical shelf and conveyor heights, reducing replacement frequency in high-turnover warehouse environments where operator fatigue and fumbling are routine. Trigger durability of 10 million presses translates to roughly 3–5 years of continuous use in standard shift operations.
- Bluetooth 5.0 Wireless Connectivity: Provides better range and lower power consumption than BT 4.x, allowing cordless operation across larger warehouse zones. Paired with optional STAR Radio (433 or 910 MHz), extends wireless range for remote aisle scanning without tethering to a docking station.
- Multiple Optical Configurations: Available in Standard, High-Performance, and Document modes. Select Standard for typical retail/logistics barcodes, High-Performance for dense or distant codes (pallets at height), and Document mode for specialty scanning (invoices, mail).
- Compact 440 g (0.97 lb) Form Factor: Reduces operator fatigue during 8+ hour shifts and fits easily into pockets or tool belts, minimizing the need for shoulder harnesses or holsters that can encumber movement in tight warehouse aisles.
- Green Spot Good-Read Feedback: Visual confirmation of successful scans without relying solely on acoustic beepers, critical in loud manufacturing or shipping areas where auditory feedback is masked.
- Wide Operating Temperature Range: Operates across industrial environments from cold storage (below 0°C) to warm manufacturing floors, without throttling or shutdown.
Integration & Connectivity
The PM9600-DKHP910RK10 supports simultaneous wired and wireless modes—USB and RS-232 for stationary docking stations, Bluetooth 5.0 for mobile workflows, and optional STAR Radio for facilities with long transmission distances or RF-challenged layouts. This flexibility means you can deploy the same scanner model across receiving (docked), warehouse floor (wireless), and remote lot receiving (radio) without separate SKU management or operator retraining.
What's in the Box
Package contents not specified in manufacturer documentation. Contact the seller or manufacturer for confirmed in-box accessories and configuration options.
Frequently Asked Questions
Q: Is the PM9600-DKHP910RK10 suitable for outdoor use?
A: The IP65 rating protects against dust and water spray, making it suitable for covered outdoor docks and open-air receiving areas. However, it is not submersion-rated (IP67). Avoid prolonged direct rain or wash-down environments without protective housing.
Q: What is the warranty coverage for the PM9600-DKHP910RK10?
A: A 1-year limited warranty is provided, covering defects in materials and workmanship during the critical deployment phase. Confirm extended warranty options with the distributor or Datalogic.
Q: Can the PM9600-DKHP910RK10 be used in cold storage environments?
A: Yes. The scanner operates across a wide industrial temperature range, supporting deployment in refrigerated warehouses and freezer environments without performance degradation or thermal shutdown.
Q: What barcode symbologies does the PM9600-DKHP910RK10 read?
A: As a 2D area imager, it reads both 1D barcodes (Code 39, Code 128, UPC/EAN, etc.) and 2D codes (QR, Data Matrix, PDF417, Aztec). Specific symbol support depends on configuration and firmware version—consult the manufacturer for detailed coverage.
Q: Does the PM9600-DKHP910RK10 support wireless connectivity?
A: Yes. Bluetooth 5.0 is standard, enabling cordless scanning. Optional STAR Radio modules (433 or 910 MHz) extend range for large facilities or RF-challenging layouts.
Q: What is the maximum range of Bluetooth on the PM9600-DKHP910RK10?
A: Bluetooth 5.0 typical range is 50–100 meters in open space, depending on obstacles and RF interference. STAR Radio options provide extended range for large warehouses or outdoor lots.
The PM9600-DKHP910RK10 represents Datalogic's mature approach to industrial barcode scanning, balancing ruggedness with operational flexibility at a mid-market price point. The IP65 rating and 2.5 m drop spec make it suitable for most warehouse and manufacturing environments without requiring premium-tier engineering or specialized ruggedization. The 10 million trigger press rating is competitive and typically supports 3–5 year service lifecycles in standard-shift operations before replacement becomes cost-justified.
Technical Highlights:
- Bluetooth 5.0 + Optional STAR Radio: Provides both short-range wireless (50–100 m indoors) and long-range radio (433/910 MHz) without forcing a single connectivity standard. Accommodates facilities with legacy wired docking infrastructure and modern mobile workflows in parallel.
- Three Optic Configurations: Standard, High-Performance, and Document modes allow you to optimize for barcode density and reading distance. Standard covers typical retail/logistics, High-Performance handles dense or elevated pallets, Document mode supports specialty scans—reducing the need to carry multiple devices.
- Compact 440 g Form Factor: At under 1 lb, this scanner reduces operator fatigue during extended shifts and eliminates the need for shoulder harnesses or heavy holsters, directly improving throughput in high-volume environments.
Deployment Considerations:
- IP65 protects against water spray and dust, but is not submersion-rated. Skip this model if your environment requires submerged scanning or full wash-down submersion (IP67 required).
- Wide operating temperature range supports both cold storage (below 0°C) and warm manufacturing floors, but confirm exact temperature limits with the manufacturer if your facility operates at extremes below –20°C.
The PM9600-DKHP910RK10 is a well-suited choice for standard warehouse, manufacturing, and logistics operations seeking proven industrial scanning without specialized features. It excels in multi-connectivity deployments (docked, wireless, and radio-enabled) where you need fleet standardization and flexible infrastructure integration.
