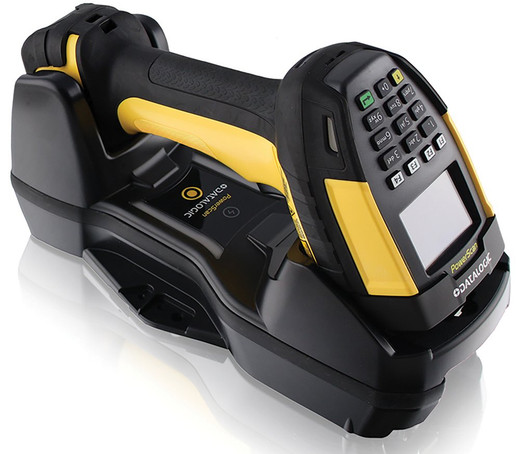

Datalogic PM9600-DKHP910RB 2D Area Imager Barcode Scanner
The Datalogic PM9600-DKHP910RB is a compact, rugged handheld 2D barcode scanner built for high-volume warehouse, logistics, manufacturing, and healthcare operations. It combines a durable 2D area imager with IP65 sealing and 2.5 m (8.2 ft) drop tolerance—meaning splashes, dust, and impact won't take it out of service. If your operation runs receiving lines, putaway, parcel sorting, or inventory cycles where scanners see daily punishment, this platform cuts replacement costs by surviving the environment other models don't.
Key Features
- 2D Area Imager with three optical configurations. Choose Standard, High-Performance, or Document mode depending on your typical scanning distance and barcode density. This flexibility eliminates the need to stock multiple SKUs for different zones within a facility.
- IP65 ingress protection. Dust and liquid splash won't compromise performance—critical in manufacturing washdown areas, food processing, or outdoor cross-dock operations where moisture and airborne particulate are constant.
- 2.5 m (8.2 ft) drop rating. Scanners dropped on concrete floors, warehouse decking, or metal shelving will keep working instead of cracking open on impact. This directly reduces per-unit repair or replacement expense over a multi-year deployment.
- 10 million trigger press durability. The mechanical trigger endures millions of cycles without degradation. For operators scanning 500+ items per shift, this means the scanner remains responsive for years—not months—before wear introduces missed reads.
- Bluetooth 5.0 wireless connectivity. Untethered operation gives pickers and receiving staff full warehouse floor mobility without tangling in cables. Range and stability improve over older Bluetooth versions, reducing dead zones and re-pairing failures.
- Multiple wired protocols: USB, RS-232, and optional STAR 433/910 MHz radio. Legacy WMS systems using serial don't require infrastructure replacement. Facilities with heavy radio interference or extended range needs (30,000+ sq ft warehouses) can deploy STAR radio instead—avoiding WiFi congestion.
- Lightweight design at 440 g (0.97 lb). All-day ergonomic use without operator fatigue means faster scanning cycles and fewer dropped devices from hand exhaustion.
- Compact form factor: 71 x 203 x 107 mm. Fits easily into cargo pants pockets, hand holsters, or jacket pockets—not a bulky brick.
- Datalogic Green Spot good-read indicator. Audible and visual feedback confirms capture without forcing operators to look at screen confirmations—speeds cycle time in high-motion environments.
Integration and Deployment Context
The PM9600-DKHP910RB fits into a broader ecosystem of Datalogic mobile data capture tools. Its multi-protocol connectivity minimizes infrastructure disruption—connect to new wireless management systems or retrofit into legacy RS-232 WMS deployments without ripping out cabling. Inductive charging options (on compatible dock models) reduce connector fatigue, a common failure point in high-volume fleet operations.
For enterprises standardizing barcode capture across manufacturing, warehouse, and logistics footprints, the modular optical design and flexible connectivity reduce SKU sprawl while supporting diverse scanning distances. A single model family supports both close-range document scanning and long-distance pallet label reads.
Ideal Applications
- Warehouse receiving and putaway operations
- Parcel and package sorting in distribution hubs
- Manufacturing and assembly line verification
- Healthcare patient ID and specimen tracking
- Cross-dock and transshipment operations
- Retail backroom and inventory management
Frequently Asked Questions
Q: What barcode types does the PM9600-DKHP910RB read?
A: As a 2D area imager, it captures both 1D linear barcodes (Code 128, UPC, EAN) and 2D symbologies (QR Code, Data Matrix, PDF417). The imager simultaneously decodes mixed barcode environments without requiring manual mode switching.
Q: Is the PM9600-DKHP910RB wireless, or does it require a cable?
A: It supports both. Bluetooth 5.0 wireless is standard for untethered warehouse floor operation. USB and RS-232 wired connections are also available for fixed-position scanning stations or legacy WMS systems. Optional STAR 433/910 MHz radio provides industrial-grade long-range alternative if WiFi interference is a concern.
Q: Can the PM9600-DKHP910RB survive drops?
A: Yes—it carries a 2.5 m (8.2 ft) drop rating, meaning accidental falls onto concrete or metal surfaces won't crack the housing or break internal components. Combined with IP65 sealing, this makes it suitable for rough warehouse and manufacturing environments.
Q: How long does the trigger last before replacement?
A: The trigger is rated for 10 million press cycles. In high-volume operations (500+ scans per shift), this equates to 3–5 years of continuous use before mechanical wear becomes noticeable—significantly extending device lifespan compared to consumer-grade scanners.
Q: What connectivity options are available for legacy WMS systems?
A: The PM9600-DKHP910RB includes RS-232 serial connectivity in addition to USB and Bluetooth, allowing integration with older WMS platforms without requiring database or middleware upgrades. This minimizes deployment cost when retrofitting facilities with existing infrastructure.
Q: Does the PM9600-DKHP910RB support inductive charging?
A: Inductive charging capability is available on compatible dock models, reducing connector wear and simplifying fleet power management in high-volume deployments. Check with the supplier for compatible charging dock specifications.
The Datalogic PM9600-DKHP910RB represents a pragmatic choice for warehousing and logistics operations serious about minimizing device replacement and repair costs. The combination of a 10 million cycle trigger, IP65 sealing, and 2.5 m drop tolerance directly translates to fewer support tickets and longer mean time between failure—particularly in high-volume picking and receiving environments.
Technical Highlights:
- 10 million trigger press durability: At 500+ scans per shift (typical for receiving), this buys you 3–5 years of reliable operation before mechanical wear becomes noticeable—versus 12–18 months on consumer-grade triggers. Real TCO advantage for multi-site fleet deployments.
- IP65 + 2.5 m drop rating: Dust, splash, and impact resistance in combination means the device survives warehouse washdown hoses, concrete dock floors, and careless operator drops without field repairs. One dropped unit repaired or replaced costs $300–600; avoiding even two failures per year pays for durability upfront.
- Multi-protocol connectivity (Bluetooth 5.0, USB, RS-232, optional STAR radio): Eliminates the 'rip and replace' burden for legacy WMS migrations. RS-232 serial support lets you connect to 10-year-old systems without middleware rewrites. STAR radio sidesteps WiFi congestion in dense warehouse environments where band saturation kills Bluetooth performance.
Deployment Considerations:
- Verify optical configuration (Standard, High-Performance, or Document) against your typical barcode density and scanning distance before ordering. Wrong optics mean slower capture and retrains.
- IP65 seals liquid splash but not full submersion—don't expect it to survive being dunked. For outdoor rain-intensive environments, verify facility conditions before deployment.
- Bluetooth 5.0 improves range and stability over older versions, but warehouse-scale deployments (100+ devices) still benefit from explicit AP coverage planning to avoid dead zones on lower floors or in metal-heavy zones.
Best fit: High-touch warehouse and logistics operations where device durability directly reduces support friction and unplanned downtime. The PM9600-DKHP910RB is overkill for light retail inventory; it's properly scaled for distribution centers and cross-dock operations scanning thousands of items daily.
