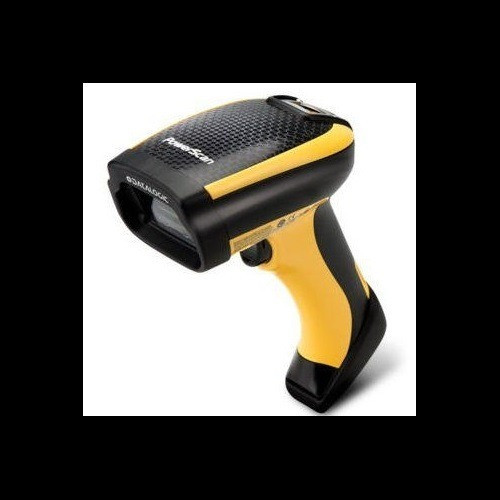

Datalogic PM9600-HP910RBK10 Industrial 2D Barcode Scanner
The Datalogic PM9600-HP910RBK10 is a field-hardened 2D area imager engineered for high-throughput warehouse, manufacturing, logistics, and healthcare environments where ruggedness and scan consistency directly impact operational efficiency. Built to the PowerScan 9600 Series standard, this device combines proven 2D imaging optics with industrial-grade durability and flexible wireless connectivity.
Key Features
- 2D Area Imager: Captures 1D and 2D barcodes without mechanical moving parts — eliminates the reliability issues associated with laser scanning in dusty or vibration-heavy environments. Variable-distance reading means operators work at whatever speed the task demands, not at a fixed scanning distance.
- IP65 Ingress Protection: Dust and water spray resistance certified to IP65 means you can deploy this scanner in wet dock areas, cold-chain facilities, and environments with flour, powder, or other particulates without requiring a protective case — a real cost savings when buying for 50+ units.
- 2.5 m (8.2 ft) Drop Rating: Exceeds typical warehouse handling stresses; survives accidental drops from waist height onto concrete. This specification matters because trigger failures and optics damage are the leading costs in multi-year deployments.
- Bluetooth 5.0 Connectivity: Delivers 4x the range and 2x the data throughput of Bluetooth 4.2, reducing connectivity dead zones in large warehouse footprints. Also supports STAR radio (433 and 910 MHz variants) for sites where Wi-Fi is unavailable or unreliable — critical for cold-storage and outdoor receiving areas.
- 10 Million Trigger Presses: Translates to 4–8 years of continuous operation in high-volume picking environments (500–1,000 scans per shift). Reduces capital refresh cycles and improves total cost of ownership per scan.
- Lightweight 440 g (0.97 lb) Form Factor: Reduces operator hand and wrist fatigue during full-shift picking or receiving work; particularly important in e-commerce and same-day fulfillment operations where scan volume exceeds 3,000 units per day per operator.
- Green Spot Good-Read Feedback: Visual confirmation (plus optional beep) on successful reads eliminates the need to check a display screen between scans — accelerates workflow and reduces errors from misread codes or double-scans.
- Wide Operating Temperature: Rated for industrial temperature swings, allowing deployment from heated warehouses to -20°C (−4°F) refrigerated storage without performance degradation.
Integration and Deployment Context
The PM9600-HP910RBK10 (often searched as PM9600 HP910RBK10) integrates via multiple paths: wired USB or RS-232 for fixed scanning stations, or Bluetooth 5.0 and STAR radio for mobile operations paired with handheld computers, tablets, or warehouse management system (WMS) mobile clients. This flexibility means you can retrofit existing USB-dependent infrastructure without re-platforming, or migrate to wireless operation gradually. The 2D imager reads linear (1D) codes such as Code 128, Codabar, and GS1-128, plus 2D formats including QR, Data Matrix, and PDF417 — supporting both legacy barcode libraries and modern, density-optimized label designs. The device pairs well with barcode scanner fleets where standardization on a single model reduces operator training, spare-parts inventory, and firmware management overhead.
What's in the Box
Package contents not specified in manufacturer documentation. Contact the equipment supplier for exact configuration and accessories at order time.
Frequently Asked Questions
Q: Does the PM9600-HP910RBK10 work with existing Bluetooth-enabled mobile computers?
A: Yes. The Bluetooth 5.0 module pairs with any Bluetooth-capable handheld computer, tablet, or dedicated mobile device running Android, iOS, or Windows. Ensure your WMS application supports Bluetooth input (most modern systems do via serial emulation drivers).
Q: What barcode formats does the PM9600-HP910RBK10 read?
A: Both 1D (Code 128, Code 39, Codabar, GS1-128, etc.) and 2D (QR, Data Matrix, PDF417, Composite codes). The 2D area imager engine handles variable label quality and print contrast without recalibration.
Q: Is IP65 enough for food processing or pharmaceutical cold storage?
A: IP65 protects against dust and spray, but not full immersion. For environments with water washdown protocols, verify that the scanner will not be submerged. If washdown risk is high, consider an enclosure or handle protection. Confirm facility cleaning procedures with your site safety team.
Q: How long does a battery charge last?
A: Battery runtime depends on Bluetooth power profile and use intensity. Typical shifts (8–10 hours) with standard battery configurations are supported; consult the equipment supplier or Datalogic technical documentation for exact runtime in your duty cycle.
Q: Can I use the PM9600-HP910RBK10 with existing barcode label designs?
A: Yes. The 2D imager reads legacy 1D labels (Code 128, etc.) without any label changes. If you migrate to 2D codes, the scanner reads them at the same scan distance and performance level — no firmware updates required.
Q: What is the warranty period?
A: Standard 1-year manufacturer warranty on parts and labor. Extended coverage and multi-year support plans may be available through the equipment supplier.
Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The PM9600-HP910RBK10 represents a mature, field-proven platform for enterprises deploying 50+ scanners across multiple facilities and shift patterns. The High-Performance (HP910) optical configuration balances scan range and decode speed for standard warehouse racking heights (6–12 feet), making it a safe default for most 3PL and fulfillment operations. What sets this model apart is the combination of Bluetooth 5.0 (substantially better range and power efficiency than BLE 4.2) paired with STAR radio fallback options — essential for legacy warehouses where Wi-Fi infrastructure is spotty or unreliable, particularly in older cold-storage facilities or outdoor receiving areas.
Technical Highlights:
- 10 Million Trigger Durability: In high-volume picking (500–1,000 scans per shift), this translates to 4–8 years before mechanical wear becomes a concern. Compared to consumer-grade scanners rated at 1–3 million, the operational life per unit justifies the higher initial cost — ROI compounds over multi-year deployments.
- IP65 Sealing: Eliminates the need for protective cases or silicone covers in most warehouse environments. Over a 50-unit deployment, case omission saves $3,000–5,000 in accessories and reduces hand fatigue and heat buildup during warm-weather operations.
- 2D Area Imager (No Moving Parts): Laser scanners require mechanical oscillation; area imagers capture the entire barcode in a single snapshot. In vibration-heavy environments (shipping docks, manufacturing lines with pneumatic presses) or high-temperature zones, area imaging delivers more consistent reads without maintenance.
Deployment Considerations:
- Bluetooth 5.0 range is theoretically 240m in open space, but real-world warehouse deployments see 50–80m before rate-of-read degrades. If your facility is larger than 15,000 sq ft and relies on a single access point, plan for repeaters or STAR radio base stations at each zone.
- The 2.5m drop rating is robust, but repeated intentional drops (drop tests, operator mishandling) will eventually compromise sealing and optics. Train operators on proper device care; set expectations clearly in procurement and safety documentation.
- Battery life in continuous Bluetooth mode (no radio sleep) typically runs 8–10 hours per charge. For multi-shift operations, charge rotation or dual-battery carriages are standard practice.
Best fit: high-volume distribution centers, e-commerce fulfillment networks, healthcare logistics, and manufacturing work-in-process tracking where device standardization reduces training overhead and spare-parts inventory. Organizations with 20–30 scanners will see ROI in year two; smaller teams (fewer than 10 units) may prioritize lower entry cost over durability and should compare against value-tier competitors in the same family.
