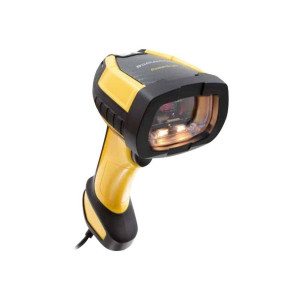

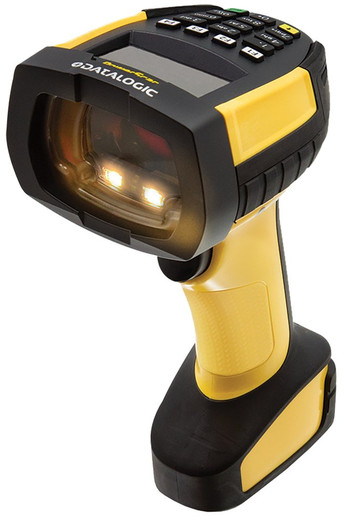

Datalogic PM9600-DHP910RBK10 Industrial 2D Barcode Scanner
The Datalogic PM9600-DHP910RBK10 is a handheld 2D area imager engineered for industrial environments where barcode capture reliability and device durability directly impact labor productivity. Part of the PowerScan 9600 Series, this scanner consolidates 1D/2D decoding, wireless mobility, and rugged construction into a form factor lightweight enough for all-shift operator use without fatigue—a real factor in distribution centers running 10+ hour picking shifts.
Key Features
- 2D Area Imager: Reads linear barcodes (UPC, Code 128, EAN) and 2D matrix codes (QR, Data Matrix, PDF417) in a single device. Simplifies code modernization if your supply chain is moving from 1D-only labeling to 2D compliance tracking.
- IP65 Environmental Protection: Sealed against dust ingress and water spray. Deploy on manufacturing floors with coolant mist or outdoor logistics yards without degradation. Skip this scanner if you need full submersion—that requires IP67 or higher.
- 2.5 m (8.2 ft) Drop Rating: Survives concrete-floor drops common in warehouse environments. Reduces replacement frequency and downtime vs. consumer-grade handheld devices.
- Bluetooth 5.0 + Wired Connectivity: Choose wireless freedom (Bluetooth 5.0) or hardwired reliability (USB, RS-232). Eliminates vendor lock-in—you can migrate from legacy RS-232 systems to modern wireless infrastructure without swapping the scanner itself.
- STAR Radio Alternatives (433/910 MHz): For sites where Bluetooth interference is problematic (RF-dense manufacturing), STAR radio options provide deterministic, license-free connectivity separate from Wi-Fi spectrum.
- 10 Million Trigger Presses: Mechanical durability rated for high-volume scanning workflows. Extended mean-time-between-failure reduces total cost of ownership across fleet deployments.
- Lightweight at 440 g (0.97 lb): Operator fatigue is real over 8+ hour shifts. This weight class (under 1 lb) is noticeable vs. older industrial scanners at 600+ g.
- Green Spot Good-Read Feedback: Audible and visual confirmation that a scan decoded successfully. Reduces downstream errors from unconfirmed scans—critical in healthcare medication tracking or financial asset audits where a missed read creates a compliance gap.
- Industrial Operating Temperature Range: Operates across temperature swings found in unheated warehouses or cold-chain logistics environments. Check the full temperature spec before deploying in extreme cold.
Integration and Connectivity
The PM9600-DHP910RBK10 (often searched as PM9600 DHP910RBK10) integrates into existing IT stacks via multiple pathways. USB and RS-232 hardwired connections work with legacy warehouse management systems (WMS) running on aging infrastructure—no platform redesign required. Bluetooth 5.0 supports modern mobile devices and tablets running inventory apps, enabling real-time cloud sync if your facility uses Software-as-a-Service WMS or asset-tracking platforms.
Datalogic's PowerScan family is recognized across manufacturing and logistics operations. If you're standardizing a device fleet and need predictable firmware support and spare-parts availability, this series delivers proven integration with Datalogic's DLS software ecosystem and third-party barcode apps.
When to Choose a Different Model
If your environment requires IP67 (full submersion) or you need 100+ meter wireless range, investigate higher-specification variants within the PowerScan family or competitor industrial ranges. If scanning speed is critical (very high-density barcodes or extreme angles), request sample trials before fleet commitment—area imager performance varies with image quality and angle.
Deployment Contexts
- Manufacturing Receiving: Verify incoming material batches and track work-in-progress (WIP) without line stoppages.
- Logistics Sorting: Weatherproof scanning in outdoor yards or dock areas during parcel sortation.
- Healthcare Asset Management: Track specimen traceability, medication dispensing, and equipment location. IP65 allows frequent sanitation cycles.
- Retail Replenishment: Fast-turn inventory audits and loss-prevention initiatives in distribution centers.
- Field Service: Rugged wireless mobility for technicians verifying asset condition or service completion at remote job sites.
Frequently Asked Questions
Q: Can the PM9600-DHP910RBK10 decode damaged or crumpled barcodes?
A: 2D area imagers are more forgiving of barcode damage than linear laser scanners, but performance depends on the underlying barcode quality and printing. The Green Spot feedback tells you if the decode succeeded; if you're scanning consistently damaged labels, you may need to address labeling quality at the source rather than expecting the scanner to compensate.
Q: Is the PM9600-DHP910RBK10 compatible with my legacy WMS running on RS-232?
A: Yes. The scanner includes RS-232 connectivity. Consult your WMS documentation for barcode format requirements (1D vs. 2D); the PM9600-DHP910RBK10 reads both.
Q: What's the effective range for Bluetooth 5.0 on this model?
A: Bluetooth 5.0 line-of-sight range is typically 50–100 meters in open air, but metal racks and RF interference in warehouses reduce effective range to 20–40 meters. Test in your environment before standardizing across a facility.
Q: Does the PM9600-DHP910RBK10 require firmware updates, and who manages them?
A: Like all industrial firmware, occasional updates patch security and improve barcode recognition. Updates are managed via Datalogic's device management tools or WMS integration; consult your IT team for patch policies.
Q: Is the 10 million trigger press rating a guarantee, or an average?
A: It's a tested mean-time-between-failure (MTBF) specification—not a guarantee that every unit survives exactly 10M presses. Actual durability varies with usage pattern and maintenance. It's a comparative metric: this class exceeds consumer-grade scanners by 10x.
Q: Can I mount the PM9600-DHP910RBK10 on a fixed pedestal for hands-free operation?
A: The scanner is designed as a handheld device. If you need hands-free scanning, consider fixed-mount area imagers or laser scanners built for mounted operation. Mounting a handheld in a fixed cradle can work for specific high-volume single-barcode workflows but is not the intended deployment mode.
Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The PM9600-DHP910RBK10 sits at the intersection of legacy WMS integration and modern wireless mobility. If your facility is standardizing on a single barcode scanner platform and you need to support both hardwired (RS-232, USB) and wireless (Bluetooth 5.0) pathways without parallel device inventories, this is a strong consolidation play. The 10 million trigger durability is not a headline feature, but it directly correlates to fleet cost-of-ownership—a fleet of 50 PM9600 units, properly maintained, will outlast cheaper handheld alternatives by 2–3x, which amortizes across annual depreciation and logistics.
Technical Highlights:
- Dual Connectivity (Bluetooth 5.0 + RS-232/USB): Eliminates the vendor lock-in risk. You can migrate from legacy hardwired infrastructure to wireless in stages without scrapping working devices. Real advantage in mid-market operations where infrastructure refresh happens over 2–3 years, not overnight.
- IP65 Sealing: Dust and water spray are common in uncontrolled logistics environments. IP65 means outdoor dock operation and frequent sanitation cycles (healthcare, food logistics) don't require specialized protective cases. You lose cost and weight vs. unprotected devices.
- 440 g Weight with 10M Trigger Life: Lightweight construction reduces operator fatigue across 8+ hour shifts, but the 10M trigger rating keeps maintenance downtime minimal. In high-volume picking operations, an unreliable trigger means missed scans and line stoppages—this spec prevents that.
Deployment Considerations:
- Bluetooth Range Variability: Warehouse environments are RF-noisy. 20–40 meter effective range is typical indoors; if your picking aisles exceed 50 meters between access points, test Bluetooth coverage before fleet rollout. STAR radio (433/910 MHz) options reduce interference if Bluetooth proves unreliable.
- Barcode Quality Matters: 2D area imagers are forgiving of label angle and light reflection, but they still require legible barcode data. If your supply chain includes damaged or low-contrast labels, invest in upstream label-quality audits rather than expecting the scanner to salvage poor input.
Position the PM9600-DHP910RBK10 as your standardized fleet scanner if your operation spans receiving, picking, and packing workflows and you need proven firmware stability, spares availability, and backward compatibility with legacy WMS systems. It's not a point solution; it's infrastructure consolidation.
