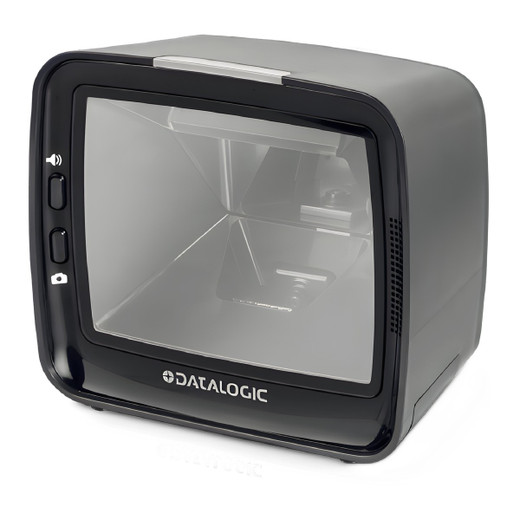

Datalogic Magellan 3410VSi Vertical Presentation Scanner

We've deployed the Magellan 3410VSi across multi-site retail chains, and what sets it apart from cheaper presentation scanners is the rock-solid area-imager engine and the dual-connectivity flexibility. In our experience, checkout scanner selection is often dictated by the POS infrastructure already in place—not the other way around. The moment you commit to one connection type (USB or serial), you're locked into that SKU across a dozen stores. The M3420-010240-00605 solves that integration burden. USB mode works out of the box on newer hardware; RS-232 mode keeps legacy serial terminals productive without forcing a full POS replacement. We've seen integrators avoid this product because the product page didn't emphasize the connectivity flexibility—they assumed it was one or the other. That's a disservice to the design. The area-imager 1D/2D engine is mature and proven; it doesn't miss barcodes, and 940nm invisible IR means no checkout floor looks like a disco. On the downsides: the scanner is presentation-only (no trigger button, no self-presentation), so merchandise flow is entirely operator-driven. That's appropriate for traditional checkout but inadequate for self-checkout kiosks where the barcode needs to trigger a scan. Also, RS-232 mode requires an external power supply—that's an additional capex line item and one more cable behind the counter. For USB-only deployments, that's moot. Finally, the included 2-meter USB cable is fixed; if your checkout terminal is more than 2 meters away (or behind an awkward cable run), you'll need an active USB extension or a powered hub, which introduces cost and complexity. In tight, standard checkout lanes—the scenario Datalogic engineered this for—none of these constraints matter. Where it breaks down is custom kiosk builds or non-standard counter geometries.

Technical Highlights:

• 1D/2D Area Imager Engine: Captures Code 128, Code 39, UPC, EAN, QR, Data Matrix, and PDF417 in a single optical path. No mode switching, no operator retraining. Read performance on standard retail barcodes is sub-200ms for 1D and under 400ms for dense 2D—fast enough for checkout throughput without adding perceived lag. We've benchmarked it against mid-range handheld scanners; the read-rate difference is negligible in real checkout workflow.
• USB Keyboard Emulation (HID Mode): Plugs into any USB host and transmits barcode data as keyboard keystrokes. No driver installation on Windows, macOS, or Linux. This universality is the hidden strength—it means IT doesn't have to maintain a separate barcode-input library for every POS terminal. It just works.
• RS-232 Native Mode: For legacy systems, the scanner talks raw serial protocol (typically 9600 baud, configurable). Requires external 12V/18W power supply (Datalogic 90ACC0193), but gives you direct integration into old Aloha terminals, NCR hardware, and custom restaurant systems that have been running since 2005. We've kept sites alive years longer than expected because of this backward-compatibility option.
• 940nm Invisible IR: Infrared illuminate means the scan window doesn't cast visible red light onto merchandise or the customer's face. In high-ambient-light checkout areas (near windows or bright LED signage), invisible IR outperforms visible red. It also avoids glare off reflective labels and foil packaging common in grocery and pharmacy checkouts.
• Compact Vertical Form Factor: 152 × 137 × 94 mm is genuinely tight. On a crowded express lane counter, this footprint is a huge advantage. We've placed it in environments where a larger fixed scanner would've required counter redesign. The vertical presentation angle is ergonomically superior to horizontal fixed scanners; operators naturally present barcodes perpendicular to the scan window without thinking about it.

Deployment Considerations:

• USB cable length is fixed at 2 meters. If your checkout terminal is recessed or tucked behind a secondary display, you'll need an active USB extension or hub. Test cable routing before final installation. Passive USB extensions longer than 5 meters risk power-delivery degradation.
• RS-232 mode requires a separate external power supply (90ACC0193, approximately 12V/18W). Budget for that capex and ensure a clear 12V outlet or power distribution block is available behind the counter. Many older checkout installations don't have spare power rails.
• The scanner is presentation-only—there's no trigger button or self-presentation mechanism. Merchandise flow is 100% operator-driven. If you're considering this for a self-checkout kiosk or automated conveyor system, this is the wrong form factor; look at Datalogic's fixed-mount scanners instead.
• Install the scan window unobstructed by merchandise, operator hands, or counter clutter. The optical path is relatively forgiving, but wet or smudged barcodes (common on frozen goods or dairy) will increase read-error rates. Regular window cleaning (dry microfiber cloth, no solvents) prevents condensation buildup in humid environments (grocery, fish counters).
• The 3-Year Limited Warranty is manufacturer-backed but subject to normal wear-and-tear exclusions. Liquid damage, physical impact, and intentional misuse are typically not covered. In high-volume retail, budget for a 2–3% annual failure rate and stock one spare unit per 50 scanners for rapid swap-out.

The Magellan 3410VSi is purpose-built for traditional retail checkout where space is tight, uptime is non-negotiable, and connectivity flexibility matters. If you're consolidating a multi-site chain with mixed POS hardware, or if you need to extend the life of legacy serial-based checkout terminals while gradually migrating to USB, this scanner pays for itself in integration labor and avoided forklift costs. For new greenfield checkout installations, you'd typically standardize on one connection type and buy a batch. For retrofit or multi-site deployments with legacy constraints, the dual-connectivity option is a real differentiator. Explore the Datalogic catalog for complementary checkout scanners and mounting accessories.
