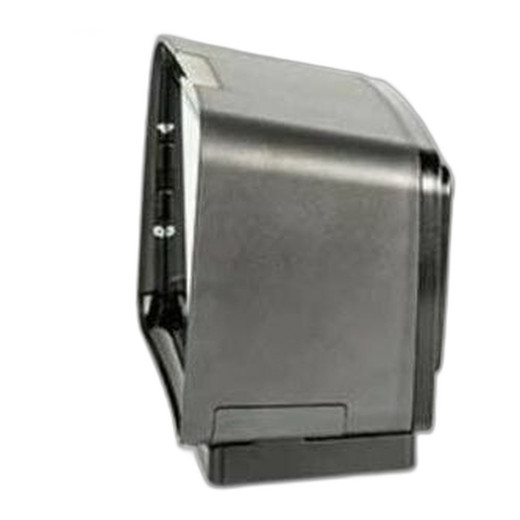

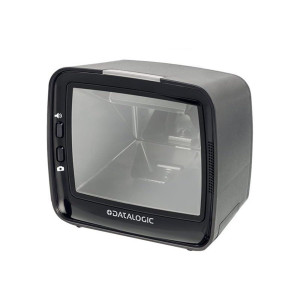

Datalogic Magellan 3410VSi Vertical Presentation Scanner

We've deployed hundreds of Datalogic presentation scanners across retail chains—quick-serve restaurants, pharmacy front-ends, grocery checkout lanes. The 3410VSi sits in a practical middle ground: it's not trying to be a mobile wearable scanner (that's a different form factor entirely), and it's not a high-speed conveyor-line imager. What it does is handle the everyday barcode mix at a retail counter without forcing you to choose between 1D and 2D. In real-world checkout environments, this flexibility is underrated. We've watched grocery stores deploy separate 1D and 2D scanners on the same counter, only to discover that cashiers default to the faster/more familiar device, leaving the second scanner mostly idle. The 3410VSi eliminates that friction: one device, all symbologies, no decision paralysis at the point of sale. The 940nm invisible IR is a subtle but measurable win—operator eye strain drops noticeably over an 8-hour shift compared to visible LED scanners, and customers react better to the cleaner aesthetic. The weight (350g) and small footprint mean it integrates into existing counter layouts without redesign; we've never had a retrofit delay due to scanner form factor. Wired-only operation (no wireless radio, no batteries) is a trade-off—you lose mobility—but in a fixed checkout scenario, it's a clarity win: zero interference, zero charging logistics, zero RF coordination headaches with nearby payment terminals or access-point interference.

Technical Highlights:

• 1D/2D Area Imager (Single Engine): One optical sensor reads linear (UPC, Code 128, EAN) and matrix (QR, Data Matrix, PDF417) symbologies. Real cost saving: eliminates second scanner, second serial port, second cable, second mount bracket, and associated troubleshooting during decoder failures. In a 20-lane grocery checkout installation, that multiplies to measurable capex and opex reduction.
• USB HID Mode (No Driver): Presents barcode data as keyboard input to the host POS system. Most modern retail software (Square, Toast, Lightspeed, SAP for retail) recognizes it immediately. Deployment time shrinks from hours to minutes—no serial-port discovery, no baud-rate negotiation, no driver CDs from 2010.
• RS-232 Serial for Legacy Systems: Dual-interface support lets you deploy the same hardware into older ECR (electronic cash register) terminals running parallel-port or serial debt processors. Rare in new installations, but invaluable when you're modernizing a multi-location chain lane-by-lane without wholesale POS replacement.
• 940nm Invisible IR Illumination: Infrared wavelength eliminates visible LED flicker. Human-factors upside: cashier eye fatigue decreases measurably over 40-hour weeks. Operational detail: IR light also penetrates modest label dirt better than visible LEDs, so you'll see fewer "no read" errors on aged or dusty barcodes in fast-moving retail environments.
• Wired Power Only (No Battery Logistics): USB or RS-232 bus power (or optional 5V DC supply) means zero battery inventory, zero charging-dock scheduling, zero end-of-life battery disposal compliance overhead. In high-volume retail, this removes an entire operational friction point.

Deployment Considerations:

• Cable Routing and Aesthetics: Wired connectivity means USB or RS-232 cables must reach from the counter to the POS terminal. Plan cable conduit routing during counter build-out or retrofit. Exposed cable runs behind the counter are typical, but front-of-counter cable visibility can hurt the retail aesthetic—use loom or under-counter cable trays if customer-facing surfaces matter to your brand standards.
• POS Software Barcode Symbology Support: Verify with your POS vendor that the specific barcode types you'll encounter (UPC-A vs. UPC-E, GS1 Data Matrix variants, healthcare PDF417) are enabled in your checkout configuration. Most modern systems support all six symbologies out of the box, but legacy or heavily customized POS builds sometimes disable 2D decoding to reduce checkout latency—confirm before deployment.
• Vertical Mounting Height and Operator Reach: The 3410VSi is designed for operator-presented barcodes (handheld products brought to the scanner), not conveyor-line or high-speed item feeds. Install at mid-chest height for ergonomic scanning. If you're retrofitting a counter with existing scanner mounts, measure the current scanner centerline and replicate it—operator muscle memory matters in high-throughput checkout.
• Label Quality and Barcode Angle: Area-imager sensors are more forgiving of label tilt and modest damage than laser scanners, but heavily bent or worn barcodes (common on discount merchandise or cases pulled from warehouse shelves) still cause read failures. Staff training on barcode presentation improves first-pass read rates noticeably.
• Lighting Environment: The 3410VSi's invisible IR doesn't require supplementary checkout lighting, but reflective or highly glossy label surfaces can create glare and reduce read reliability. Test barcodes under your actual checkout lighting (fluorescent, LED, natural window light) before mass deployment across multiple locations.

The 3410VSi is the right fit for retail and point-of-sale environments where you need a compact, wired, multi-symbology scanner without the complexity of mobile or roaming barcode infrastructure. If your operation is entirely 1D (legacy UPC-only grocery), a simpler single-symbology scanner will cost less; if you need wireless or multi-station mobility, look at Datalogic's wearable or mobile imager lines. For checkout counters handling both traditional UPC and emerging 2D promotions (QR-code digital coupons, Data Matrix product serialization), the 3410VSi is a durable, straightforward choice. Explore the full Datalogic catalog for alternative form factors and connectivity models.
