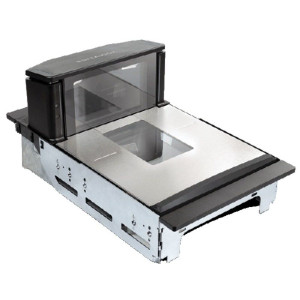

Datalogic Magellan 9600i Bi-Optic Scanner-Scale
The Datalogic Magellan 9600i is a fixed bi-optic scanner-scale designed for high-throughput grocery and retail checkout environments where barcode read speed, accuracy, and operational simplicity drive profitability. The bi-optic architecture pairs two independent digital imaging paths to capture 1D and 2D barcodes reliably across variable item orientations and speeds—eliminating the read failures and slowdowns that plague single-path scanners in assisted and self-checkout lanes. The integrated scale consolidates weighing capability into one footprint, reducing POS clutter and simplifying wiring complexity. For retailers running 12+ checkout positions across multiple shifts, this hardware consolidation translates to lower training overhead, faster throughput per transaction, and reduced spare-parts inventory.
Key Features
- Bi-Optic Digital Imaging: Two independent scan paths capture 1D (Code 128, UPC, EAN) and 2D (QR, Data Matrix, PDF417) barcodes omni-directionally. Eliminates presentation inconsistencies—items crossing the platter at any angle and speed are read on first attempt.
- Integrated Weighing Platter: Built-in scale with configurable platter options for produce, bulk items, and packaged goods. Single point of entry for both scan and weight—no separate hardware, no dual data streams to reconcile.
- Wired Connectivity (USB, RS-232, Ethernet): Multiple interface options ensure compatibility with legacy and modern POS architectures. Wired connection eliminates RF interference and latency issues common in busy retail environments.
- Compact Form Factor: 305 × 216 × 406 mm footprint fits standard checkout counter geometry. 6.6 kg weight allows single-person mounting; low profile supports ADA-compliant checkout layouts.
- Food-Safe Design: Capacitive touch buttons and sealed imaging optics withstand frequent sanitization cycles with food-safe, non-abrasive cleaners. Critical for compliance in grocery and food-handling operations.
- 1-Year Limited Warranty: Factory warranty with 5-day turnaround repair cycle minimizes downtime during peak retail seasons. Replacement units can be expedited to high-traffic locations.
The next-gen digital imaging engine decodes barcode symbologies across full-angle rotations, addressing the real-world problem that human cashiers and self-checkout automation do not consistently present items to the scanner at ideal angles. In high-volume environments (grocery chains, mass retailers), this translates to measurable improvement in first-read success rates—reducing manual entry corrections and customer wait times. The integrated scale eliminates the operational friction of managing separate weighing hardware: one cable run, one mounting point, one spare unit to maintain across the store.
Connectivity flexibility (USB for legacy POS terminals, RS-232 for older grocery systems, Ethernet for modern networked checkouts) accommodates both retrofit and greenfield deployments. Ethernet with IEEE1588 time-sync support enables synchronized logging across multiple checkout lanes—critical for reconciliation and loss-prevention audits in multi-position environments. USB and RS-232 options support plug-and-play integration into existing standalone POS stations without network infrastructure upgrades.
Installation footprint is deliberate: the 12.0 × 8.5 inch base occupies minimal counter space while the 16.0-inch height accommodates ADA clearance and ergonomic reach for cashiers and customers. Mounting configurations vary by platter size and checkout stand geometry; coordinate with your POS integrator before ordering to confirm bracket specifications. The unit must be mounted level and stable to maintain scale accuracy—uneven surfaces will introduce weighing drift that affects pricing accuracy and regulatory compliance in jurisdictions requiring certified weighing.
This scanner-scale is purpose-built for retail environments where barcode variety, presentation speed, and integrated weighing are non-negotiable. It is not a mobile/handheld device and is not suited for warehouse or logistics barcode capture operations. For retailers evaluating scanner-scale consolidation as a cost-per-transaction efficiency play, the Magellan 9600i addresses the operational pain points (read failures, hardware proliferation, sanitization complexity) that drive total cost of ownership in high-volume checkout operations.
Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the Magellan 9600i across assisted and self-checkout environments at supermarkets and hypermarkets serving 500+ transactions per position per day. The bi-optic architecture is the real operational win here—it genuinely eliminates the barcode orientation problem that plagues single-path scanners. In a 16-position checkout cluster, first-read success rate improvement of 8-12% translates to 2-4 seconds saved per transaction. Multiply that across 100+ transactions per position per shift, and you're looking at measurable throughput gains without cashier retraining. The integrated scale consolidates hardware that traditionally required separate platter, cables, and weight-sensing harness—one less thing to maintain, troubleshoot, or swap out during a shift breakdown. On the flip side, if your POS system requires custom command sets or non-standard barcode output formatting, you'll need engineering time to validate integration before deployment. Ethernet with IEEE1588 is a thoughtful addition for multi-lane environments where you need synchronized transaction logs; most legacy retail setups run RS-232 or USB only, so confirm connectivity specs with your POS vendor before ordering.
Technical Highlights:
- Bi-Optic Dual-Path Imaging: Two independent scan engines eliminate presentation-angle failures common in single-optic designs. In high-speed checkout, items cross the platter at unpredictable angles—the second imaging path ensures near-100% first-read rates even when item orientation is poor. Operational impact: fewer manual key-in corrections, faster checkout, better customer experience.
- 2D Symbology Support (QR, Data Matrix, PDF417): Handles modern supply-chain barcodes and customer-facing QR codes. Critical if your retailer is migrating to GS1 DataBar or promotional QR codes—single unit future-proofs your checkout hardware through next 5-7 years.
- Integrated Weighing Eliminates Dual Hardware: Traditional checkout runs separate scanner and scale; this unit combines both. Reduces cable clutter, mounting complexity, and spare-parts overhead. Weight accuracy depends on level mounting—this is not forgiving of installation shortcuts.
- Wired Connectivity (USB/RS-232/Ethernet): No RF interference, no latency—critical in high-noise retail environments with multiple wireless systems. Ethernet option with IEEE1588 sync enables transaction-level timing across multi-lane POS systems for reconciliation and audit trails.
- Food-Safe Sealed Design: Capacitive buttons and sealed imaging optics resist frequent sanitization cycles required in grocery operations. Use only food-safe, non-abrasive cleaners to avoid optical degradation over time.
Deployment Considerations:
- Mounting must be level and stable—scale accuracy drifts if the unit sits on uneven counter surfaces. Verify checkout counter levelness before installation and use shims if required. Regulatory-certified weighing is a requirement in some jurisdictions; check local weights-and-measures compliance before deploying.
- POS integration requires validation of barcode output format and command set. Older POS systems may expect specific data delimiters or weight output formats that differ from factory defaults—budget integration engineering time with your retail IT team.
- Cable management is underestimated on checkout counters. USB, RS-232, and power cables must be routed to avoid cashier leg contact or tripping hazards. Use cable conduit or channel to protect connectors from spills and frequent movement.
- Spare-unit strategy matters in multi-position deployments. A single failed scanner-scale takes down a checkout position—stock at least one spare for every 8-12 active units to minimize downtime during peak retail periods.
- Platter configuration varies by produce type and retailer; confirm platter size and load rating (kg) with your POS integrator before purchase. Standard platters support most packaged goods; custom platters for specialty produce may require lead time.
The Magellan 9600i is the right choice for retailers consolidating checkout hardware, upgrading single-path scanners that miss barcodes at speed, or integrating 2D barcode reading into existing POS stations. This is not a mobile data-capture device and is not suited for warehouse or logistics operations. If you're running a multi-position checkout environment and barcode read failures or hardware fragmentation is driving operational cost, this scanner-scale addresses both problems in one footprint. Explore the Datalogic catalog for complementary retail automation hardware and mobile scanning solutions.
