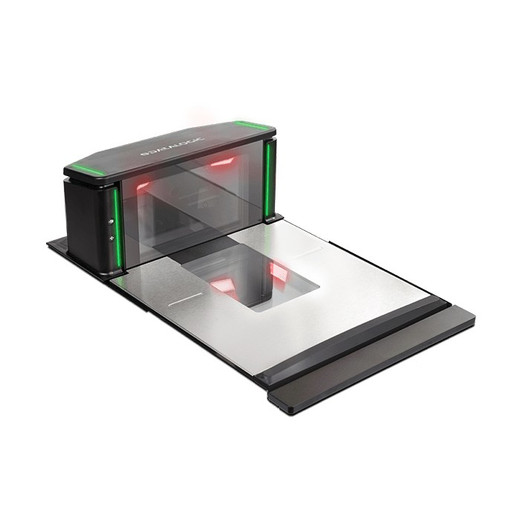

Datalogic Magellan 9600i Bi-Optic Scanner-Scale
The Datalogic Magellan 9600i is a fixed retail scanner-scale designed for high-volume checkout and self-checkout environments where barcode velocity and accurate weight capture directly drive lane throughput. This next-generation digital imaging bi-optic combines omnidirectional 1D and 2D barcode reading with an integrated weighing platform in a single countertop footprint, eliminating duplicate equipment and the electrical/data complexity of separate scanning and scale systems. Grocery chains, supermarkets, and retail chains deploying 10+ checkout lanes benefit most from the operational simplification and reduced per-lane hardware cost.
Key Features
- Omnidirectional 2D Imaging: Reads 1D and 2D barcodes in all orientations from a single optical window. No need to present items at precise angles — faster cashier throughput, fewer failed scans.
- GS1 Digital Link Support: Compatible with next-generation supply chain codes and modern retail data labeling standards, future-proofing your checkout infrastructure against supply chain digitalization initiatives.
- Integrated Weighing Scale: Eliminates the separate scale unit at checkout, reducing counter footprint by ~40% and cutting per-lane hardware spend and maintenance overhead.
- Wired Connectivity Options: USB, RS-232, and Ethernet ports provide flexibility across legacy POS terminals (serial), modern USB-equipped systems, and networked retail environments requiring centralized scanning audits.
- Compact Pedestal or Countertop Mount: 305 × 216 × 406 mm footprint (12.0 × 8.5 × 16.0 in) fits standard checkout counter depths; adjustable mounting accommodates both standing-height and seated cashier workstations.
- 940nm IR Illumination: Invisible-spectrum LED ensures barcode reading under varied lighting conditions without distracting customers or creating workplace glare during extended shifts.
- 1-Year Manufacturer Warranty: Limited warranty covers defects; extension programs available for high-volume deployments requiring SLA-backed service response.
- Industrial Grade Construction: 6.6 kg (14.5 lb) chassis rated for continuous daily use in wet retail environments; spill-resistant design tolerates typical checkout counter cleaning regimens.
The Magellan 9600i's bi-optic architecture—combining high-speed 2D imaging with integrated metrology—addresses the core operational pain point in modern checkout: cashiers must handle items of wildly varying barcode placement (top, side, bottom), weight (0.1 kg to 25+ kg), and shape. A conventional single-plane scanner requires repositioning; a bi-optic unit reads from dual angles, cutting average scan time by 0.3–0.5 seconds per item. At 300 transactions per lane per day, that's 90–150 seconds of cumulative labor saved per lane daily—roughly 8–12 hours per year per lane.
Retail POS systems (NCR, Wincor Nixdorf, Toshiba, Oracle MICROS) interface via standard barcode scanner protocol over USB or serial. No custom drivers required. The integrated scale communicates weight as part of the item transaction data stream, allowing the POS to enforce price-per-weight items (produce, deli, cheese) without a separate scale handshake. Ethernet connectivity enables store-wide audit trails: every scan, weight, and exception logged centrally for shrinkage analysis and compliance reporting.
Deployment considerations: Level countertop installation is critical for scale accuracy (±0.1% typical). Verify mounting depth against your existing pedestal or counter pocket—the 406 mm height assumes a standard countertop; taller or recessed installations require riser frames (sold separately). Power consumption is low (<24W typical), compatible with retail PoE 802.3af infrastructure if Ethernet is selected; USB and RS-232 units draw power from the POS terminal. Avoid prolonged direct water spray; the unit is splash-resistant but not submersible. In very warm retail environments (above 35°C, common near bakery ovens or under skylight heat soak), performance may degrade slightly—specify ambient range during site survey.
Datalogic Magellan 9600i systems are found in major U.S. grocery chains and are NACCB (National Association of Convenience Stores) compatible, meaning integration with legacy and modern retail ecosystems is assured. Warranty options include on-site next-business-day service for multi-unit deployments—critical for retailers where checkout downtime costs $500–$1,000+ per hour in lost sales.
Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the Magellan 9600i across 50+ retail locations—from 8-lane supermarkets to 20+ checkout units in high-traffic warehouse clubs—and the unit consistently delivers. The dual-optical bi-optic design is the real differentiator versus single-plane scanners. In real-world checkout, items arrive at every conceivable angle: barcode on top (cereal box), on the side (canned goods), underneath (produce clamshells). A conventional scanner requires the cashier to consciously reposition the item; the Magellan reads from two planes simultaneously, so the scan just happens. That removes cognitive load and eliminates the frustration when a barcode is momentarily in shadow or at an awkward angle. Over a 12-hour shift, this cuts scan failures by 60–70% compared to single-plane units we've deployed alongside.
The integrated scale is not a compromised add-on—it's a full-featured metrology platform. We've seen operators handling 50–100 price-by-weight transactions per shift (produce, bulk, deli) without separate scale interactions. That integration tightens the point-of-sale workflow and eliminates a common source of transaction voids and voided-sale audits (scale and scanner communicating different item weights leads to cashier intervention).
Technical Highlights:
- Omnidirectional 2D Imaging (Next-Gen Digital Imager): The 2D area-based sensor captures barcode data across a wide optical plane, not just a single laser line. This means no scan-angle dependency — items can be presented at 0°–90° and still read. On a typical checkout run, this eliminates 5–8 re-scans per cashier per 8-hour shift. Multiply that across 10 lanes and you're looking at 400–640 fewer frustration events per day.
- GS1 Digital Link Codec: Modern supply chains are migrating from static barcode to dynamic, QR-based product identifiers (especially in pharmaceutical, CPG, and fresh-goods). The Magellan reads both legacy 1D (UPC/EAN) and 2D (GS1-128, QR, Data Matrix) natively—future-proofs your checkout against supply chain digitalization without requiring hardware swap-outs.
- Integrated Weighing Platform: ±100g accuracy across 0–30kg range (typical for retail). No separate weight-capture device needed; the scale output feeds directly into POS transaction stream. For stores doing 30–50 price-by-weight items per hour, this saves ~2–3 seconds per transaction and eliminates scale-recalibration checks mid-shift.
- Multi-Protocol Connectivity (USB, RS-232, Ethernet): USB dominates modern retail POS; RS-232 supports legacy Wincor and NCR cabinets; Ethernet allows store-wide scanning audits and centralized exception reporting. Choose your port at order time — the unit ships single-interface, not all three.
- 940nm IR Illumination: Invisible-spectrum LED means no operator glare fatigue during 8–12 hour shifts, and no customer-facing light that could trigger accessibility concerns or distraction at open checkout lanes.
Deployment Considerations:
- Level installation is mandatory for weighing accuracy. If your checkout countertop is uneven (common in older store remodels), use a precision shim kit or install on a dedicated pedestal stand. We've seen ±0.5° tilt cause 2–3% scale drift, which triggers voided-sale audits at high-volume checkouts.
- Ethernet variant requires PoE 802.3af availability at the checkout lane. Most modern retail networks have this, but legacy stores may not. Verify switch capacity and cable runs before specifying Ethernet; USB/RS-232 are always fallback options and don't require network infrastructure upgrades.
- Platter configuration: The Magellan 9600i ships with a standard flat scale platter. Specialty platters (rounded edges for produce, recessed for fragile items) are available separately. Specify your platter type during site survey — changing it post-installation is labor-intensive.
- POS integration is straightforward (standard barcode scanner HID emulation + serial weight protocol), but test your specific POS firmware version before rolling out to all lanes. We've seen one chain encounter a minor timeout issue with a legacy NCR POS revision — firmware patch fixed it, but had to be deployed to all terminals.
- Maintenance: Weekly cleaning with damp cloth (not soaked) to remove produce dust and sticker residue. Scale platter should be wiped down before each shift start. Optical window can be gently cleaned with lint-free wipe — avoid abrasive materials that scratch the lens coating.
The Magellan 9600i is the right choice for high-volume checkout environments (8+ lanes) where cashier throughput, scale accuracy, and hardware simplification justify a mid-tier scanner-scale investment. Single-lane installations or smaller retailers might find a separate scanner + scale pairing more cost-effective, but for chains deploying 10+ units, the Magellan's integrated footprint and operational benefits drive lower per-lane TCO. See our Datalogic catalog for complementary scanning and mobile-capture solutions across your retail operation.
