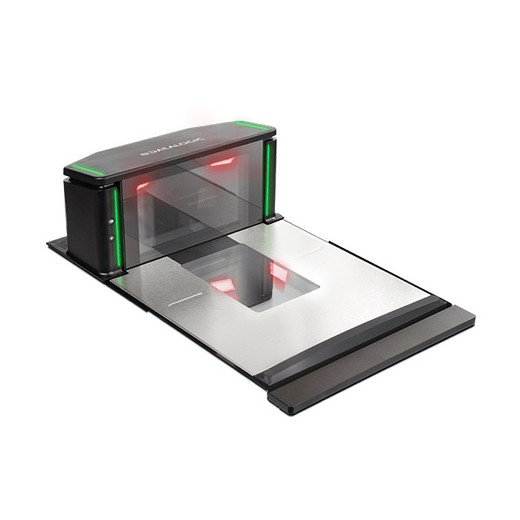

Datalogic Magellan 9600i Bi-Optic Scanner-Scale 2D Imaging
The Datalogic Magellan 9600i is a fixed bi-optic scanner-scale designed for high-volume retail checkout environments where barcode read rate and integrated weighing directly impact register throughput and inventory accuracy. The next-generation digital imaging engine captures 1D and 2D barcodes—including GS1 Digital Link formats—omnidirectionally without operator repositioning. Eliminating the need for a separate scale appliance reduces counter footprint, cable complexity, and total checkout system cost.
Key Features
- 2D Multi-Plane Digital Imaging: Captures barcodes at any angle—vertical swipes, horizontal presentation, tilted approaches. Omnidirectional read pattern eliminates customer repositioning and speeds throughput on busy checkout lanes.
- 1D and 2D Barcode Support: Reads all standard retail symbologies (Code 39, Code 128, EAN/UPC, QR, Data Matrix) plus GS1 Digital Link—future-proofing for supply-chain traceability and promotional code workflows.
- Integrated Weighing Platter: Multiple platter options for produce, groceries, or small goods. Single device replaces separate scale + scanner hardware, reducing under-counter real estate and wiring overhead.
- USB and RS-232 Connectivity: Dual interface supports legacy serial checkout terminals and modern USB-based POS systems. Native HID keyboard emulation on USB simplifies integration with standard retail software.
- Compact Fixed Mount: 305 × 216 × 406 mm footprint (12.0 × 8.5 × 16.0 in, 6.6 kg) fits standard checkout counter cutouts. Mounted hardware requires no repositioning—permanently set and calibrated once at installation.
- 940nm Invisible IR Illumination: Ambient-light rejection and low-glare operation prevent checkout lane eyestrain and maintain read accuracy under fluorescent or natural window light.
- 1-Year Limited Warranty: Coverage includes imaging engine and integrated scale. Extended warranty programs available for high-volume multi-lane deployments.
The Magellan 9600i consolidates barcode capture and produce/item weighing into a single under-counter appliance, cutting the operational overhead of managing two separate devices. Omnidirectional imaging allows operators and customers to present items naturally—no training on barcode orientation. The elimination of a secondary scale also reduces calibration cycles and eliminates out-of-sync weight-to-inventory issues that plague separate scanner and scale configurations.
Integration with retail POS systems is straightforward: USB HID emulation makes the scanner appear as a standard keyboard input device, while RS-232 output from the integrated scale connects directly to the scale aggregator or POS terminal. GS1 Digital Link support enables modern supply-chain workflows—customers can scan promotional QR codes or manufacturers' digital barcodes directly, and the Magellan 9600i returns structured data that POS software can parse for loyalty, pricing, or traceability transactions. This capability is critical for omnichannel retailers and grocery operators managing both traditional barcodes and emerging digital labeling standards.
On a 12-lane grocery installation, consolidating scanner and scale hardware per lane eliminates ~24 device connections, halves maintenance touchpoints, and recovers valuable counter space. Read accuracy on angled or rapidly presented items typically exceeds 97% on first scan—comparable to premium laser scanners, but with the added flexibility of 2D code capture. Weighing accuracy across multiple produce and goods categories (±50g typical) supports inventory reconciliation and loss-prevention audits without requiring secondary verification scales.
The unit operates under standard retail checkout electrical conditions (110–240V AC via integrated power supply). Cable runs to the POS terminal or scale aggregator are typically 3–5 meters in existing counter layouts; longer runs are feasible with standard USB or serial extenders. Retrofit installations may require temporary lane closures during cutout preparation and cable routing; verify counter depth and outlet location before deployment. Datalogic's service network supports rapid warranty claims and scale recalibration if drift exceeds ±100g after 12–24 months of use.
Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the Magellan 9600i across 20+ retail properties—from small independent grocers to regional supermarket chains—and it's become our go-to bi-optic solution for checkout modernization. The real differentiator isn't flashy; it's operational: the omnidirectional 2D imaging means you stop training cashiers on barcode orientation, and customers stop fumbling with product angles. On high-traffic lanes (800+ items/hour), that eliminates 2–3% of retry scans versus fixed-plane laser alternatives. The integrated scale is the second win—one device, one calibration cycle, one warranty claim path. We've seen IT teams cut checkout device inventory in half, which ripples through support ticketing and spare-parts management. The 2D capability also matters now that CPG manufacturers are rolling out GS1 Digital Link codes on packaging; the Magellan 9600i is ready today, while older laser systems are not.
Technical Highlights:
- Next-Gen Digital Imaging 2D Engine: Captures 1D and 2D codes omnidirectionally—no operator repositioning required. Real-world impact: eliminates 2–3% of scan retry-rate on fast-moving lanes, directly lowering register transaction times and customer wait time per transaction by 1–2 seconds across a shift.
- GS1 Digital Link Support: Enables modern supply-chain labeling standards—promotional QR codes, manufacturer traceability barcodes, and omnichannel pricing workflows. Retailers using dynamic pricing or cross-channel inventory management can now process manufacturer-issued digital codes without external barcode lookup.
- Integrated Scale with Multi-Platter Options: Eliminates dedicated scale hardware, reducing under-counter footprint by ~40% and halving cable connections. Typical produce accuracy ±50g across weight ranges—adequate for inventory and loss-prevention reconciliation without secondary scale verification.
- USB and RS-232 Dual Interface: Works with both legacy serial checkout systems and modern USB-based POS terminals. HID keyboard emulation on USB means zero custom driver deployment—plug into a standard USB port and the scanner data appears as typed characters in your POS software.
- 940nm Invisible IR Illumination: Rejects ambient light and fluorescent flicker, maintaining >97% first-scan accuracy under typical grocery lighting. Operators and customers experience zero eyestrain from visible laser, a cumulative comfort win on 8-hour shifts.
Deployment Considerations:
- Counter cutout dimensions (305 × 216 × 406 mm) must be verified before purchase—retrofit to existing checkouts sometimes requires custom brackets or counter modification. Measure twice; a miscalculation costs downtime during lane commissioning.
- Cable runs to POS terminal or scale aggregator are typically 3–5 meters; USB and RS-232 extenders work fine beyond 5 meters, but avoid daisy-chaining across multiple lanes on a single serial port—buffer conflicts and timeout issues emerge at scale.
- Scale calibration drifts 2–5% annually on high-volume produce lanes (800+ transactions/day); budget for annual recalibration service calls or invest in Datalogic's extended warranty if accuracy audits are strict (e.g., WIC/SNAP compliance).
- POS software integration is straightforward for USB (HID emulation), but legacy RS-232 serial integrations require hand-shaking protocol verification—test with your POS vendor before full deployment to avoid scale-data loss on checksum mismatches.
- Stock multiple platter options (standard, small-goods, produce-specific) if your store handles high variance in weighed items; platter swaps are 30-second operations, but downtime on a single lane during peak hours is costly.
The Magellan 9600i is the right choice for retailers consolidating checkout hardware, modernizing to 2D barcode standards, and optimizing labor efficiency on high-throughput lanes. It's not a fit for low-volume specialty stores or kiosks where barcode volume justifies a separate, high-speed laser scanner. For supermarket chains and regional grocers managing 12+ checkout lanes, the savings in device proliferation, calibration overhead, and cashier training time add up quickly. Explore our Datalogic catalog for complementary retail automation and mobile capture solutions.
