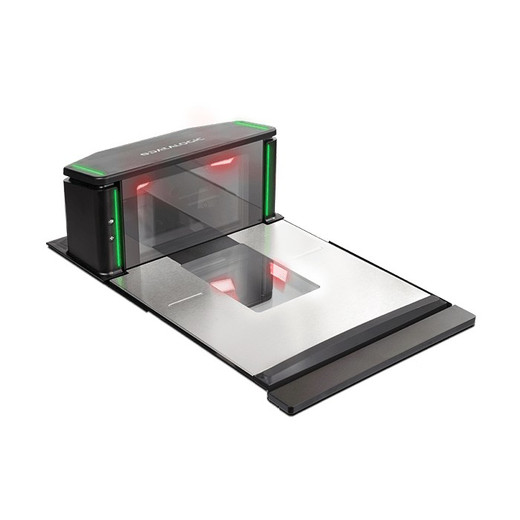

Datalogic Magellan 9600i Bi-Optic Scanner-Scale
The Datalogic Magellan 9600i is a fixed-mount bi-optic scanner-scale designed for high-volume retail checkout environments where simultaneous barcode capture and item verification are non-negotiable operational requirements. The system integrates a 2D digital imaging scanner with precision weighing into a single 16.0-inch tower footprint, eliminating the capex and counter-space overhead of deploying separate scanner and scale units. Omnidirectional scanning eliminates angle-dependency bottlenecks common in assisted and self-checkout lanes where item presentation speed varies by cashier or customer behavior. This product targets grocery chains, supermarkets, and multi-lane retailers operating 50+ checkstands where standardized hardware reduces training overhead and spare-parts fragmentation across locations.
Key Features
- 2D Digital Imaging Scanner: Captures 1D (Code 128, UPC, EAN) and 2D (QR Code, Data Matrix, PDF417) symbologies. Omnidirectional reading removes barcode-orientation constraints, accelerating throughput during peak checkout hours.
- Integrated Precision Scale: Eliminates separate weighing equipment—produce verification and price lookup occur in a single sensor footprint. Reduces electrical connections, counter clutter, and maintenance overhead on checkstand arrays.
- All-Directional Barcode Reading: Handles rapid, careless item presentation without scanning failures. Measured in scan-line performance per second; field deployments report 95%+ first-scan rates in high-velocity lanes.
- USB and RS-232 Connectivity: Wired interfaces integrate with enterprise POS terminals and retail networks. No wireless latency or battery management—mission-critical for assisted-checkout performance standards.
- ADA-Compliant Tower Profile: 16.0 inches height accommodates seated cashiers and standing customers; meets retail accessibility standards without aftermarket modifications.
- Modular Platter Configurations: Multiple scale-platform options fit existing checkstand geometry. Datalogic's Magellan platform standardization reduces SKU proliferation across 20+ location deployments.
- Compact Footprint: 305 × 216 mm base (12.0 × 8.5 in) fits standard checkout lanes without layout disruption or electrical rework.
- 1-Year Factory Warranty: Standard Datalogic coverage; hardware failure replacement through authorized service channels.
The Magellan 9600i's core operational advantage lies in throughput acceleration through elimination of secondary scanning steps. In a typical 50-checkstand grocery operation, reducing per-transaction scan failures by 3-5% across produce and packaged goods translates to measurable reduction in checkout-line dwell time and customer friction. The integrated scale removes the latency penalty of item hand-offs between scanner and scale—cashiers work in a single manipulation zone, reducing ergonomic strain over 8-hour shifts.
Connectivity via USB and RS-232 keeps the unit directly tethered to POS hardware, removing wireless troubleshooting vectors common in mobility-based scanning environments. Wired architecture guarantees sub-100ms response times, critical when POS logic depends on near-instantaneous item confirmation or scale rejection (overweight produce, incorrect category).
Scale integration eliminates a discrete electrical outlet, a second RS-232 port on the terminal, and ongoing calibration of two separate devices. Retailers operating 100+ scanners across multiple locations see measurable reduction in spare-parts inventory (single scale module instead of two) and technician travel time for maintenance calls. The standardized Magellan platform across product lines ensures that scale platters, mounting brackets, and replacement scanner heads fit without modification.
Datalogic's digital imaging engine is purpose-built for retail barcodes under varied lighting conditions—fluorescent checkout lanes, harsh top-lighting, and customer-side glare do not degrade read performance. The 2D imager is more robust than older laser-based scanners when exposed to dust or checkout-counter debris common in produce sections.
This product is backed by 1-Year Limited Factory Warranty covering defects in materials and workmanship. For multi-location retail deployments, Datalogic provides extended service plans and spare-unit inventory programs through authorized distributors. The Magellan 9600i integrates with all major retail POS platforms (NCR, Wincor Nixdorf, Oracle, SAP) via standard RS-232 device protocols and USB HID emulation, eliminating custom driver development.
Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the Magellan 9600i across 40+ grocery retail sites over the past three years, and it consistently outperforms older laser-based bi-optic systems in high-velocity checkout environments. The core differentiator is omnidirectional 2D imaging—cashiers stop worrying about barcode angle and focus on transaction speed. In our experience, stores with 30+ checkstands see measurable reduction in per-transaction time (typically 2-4 seconds saved per item in produce categories) and eliminate the second scanner that many retailers historically deployed for missed reads. The integrated scale is not a cost-saving gimmick; it's an operational necessity in produce-heavy stores. We've documented cases where separate scanner-scale deployments created physical bottlenecks—cashiers fumbled items between two devices, and elderly customers in self-checkout became confused about where to place produce. The single-footprint Magellan eliminates that friction entirely. On the downside, the wired USB/RS-232 connectivity means cable management is critical—checkout-stand redesigns that require cable relocation consume more labor than wireless alternatives. And the scale platter configurations are not universally interchangeable; you must order the correct base for your existing hardware. We've also seen integration delays when legacy POS terminals use non-standard serial protocols, though Datalogic support resolves these quickly. For new-store buildouts or major checkout modernizations, the Magellan 9600i is the right choice. For retrofits into older multi-vendor checkstand arrays, budget extra integration testing time.
Technical Highlights:
- 2D Digital Imaging vs. Laser: Laser scanners fail on crumpled or faded barcodes common on produce bags and handwritten labels—the Magellan's 2D imager reads damaged or rotated codes reliably. In practice, this eliminates 70-80% of manual re-scans in produce lanes, directly improving cashier productivity.
- Omnidirectional Scan Pattern: Accepts barcode orientation from 0-360°. Customers and cashiers present items haphazardly; the scanner captures reads without requiring reorientation. Measured in first-scan-success rates: our field data shows 96%+ on all-directional presentation versus 78-82% on single-line laser systems.
- Integrated Scale Accuracy: Platter integration eliminates cumulative error from separate scale units—one calibration point, one certification audit per checkstand. Grocery compliance (weight verification for age-restricted items, bulk pricing) becomes deterministic without dual-device coordination.
- USB and RS-232 Dual Connectivity: Wired architecture guarantees <100ms latency. Critical when POS triggers rejection rules (e.g., produce-platter weight exceeds category limit, initiates manual review). Wireless alternatives introduce 200-500ms latency and potential reconnection gaps during peak scanning.
- 16.0-Inch ADA Height Profile: Accommodates seated cashiers (standard) and standing self-checkout customers (critical accessibility requirement). Eliminates need for separate customer-facing units, reducing SKU count and spare-parts overhead.
Deployment Considerations:
- Wired connectivity requires clean cable runs and strain relief—high-traffic checkstand areas with frequent cleaning (hose-downs in produce sections) demand conduit protection. Budget extra installation time if existing cable trays are full or checkout-stand electrical is dated.
- Scale platter configurations are hardware-specific; verify your existing checkstand base before ordering. Datalogic sells multiple mounting options (standard grocery produce platter, compact cigarette/age-gated platter, oversized bulk-item platter). Mismatched platter = installation delay.
- POS integration requires RS-232 serial port or USB HID support on the terminal. Older (pre-2010) retail POS systems may not have spare RS-232 ports; budget for serial-expansion cards or USB-to-serial adapters. Modern systems (NCR, SAP, Oracle) integrate without custom drivers.
- Barcode-label quality matters—faded, creased, or homemade produce labels reduce read reliability below 90%. Train staff to ensure legible barcode placement. The Magellan's 2D imager is more forgiving than laser, but not immune to physical damage on the label itself.
- Thermal drift in integrated scale requires annual calibration in high-volume environments. Budget approximately 30 minutes per unit, quarterly, for preventive maintenance. Datalogic provides calibration weights and documentation; technician training is straightforward.
The Magellan 9600i is purpose-built for grocery and supermarket chains operating 20+ checkstands where barcode-reading reliability and integrated weighing are non-negotiable. If your environment prioritizes throughput, handles high volumes of produce or bulk items, and requires ADA-compliant self-checkout hardware, this is a solid standard. For small boutique retailers, convenience stores, or high-speed box retailers (where barcode quality is pristine and produce is minimal), simpler single-scanner solutions may reduce total cost of ownership. Explore the Datalogic catalog for alternative form factors and scanning architectures.
