CyberPower CP1500PFCRM1U 1500VA Pure Sine Wave Line-Interactive 1U Rack UPS
Overview
The CP1500PFCRM1U is a 1500VA / 900W line-interactive rack UPS built around a true pure sine wave output — the right specification when you're protecting active PFC power supplies common in network-attached storage, rack servers, managed PoE switches, and video surveillance NVRs. Line-interactive topology means the unit conditions incoming voltage continuously, stepping in to correct sags and swells between 97V and 144V before ever touching the battery — a meaningful service-life advantage over standby designs in commercial environments where utility power fluctuates regularly.

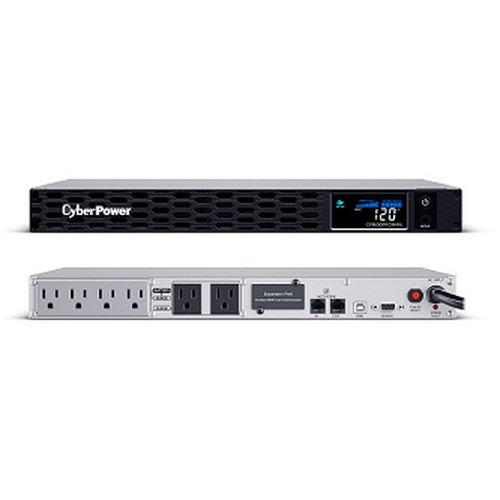

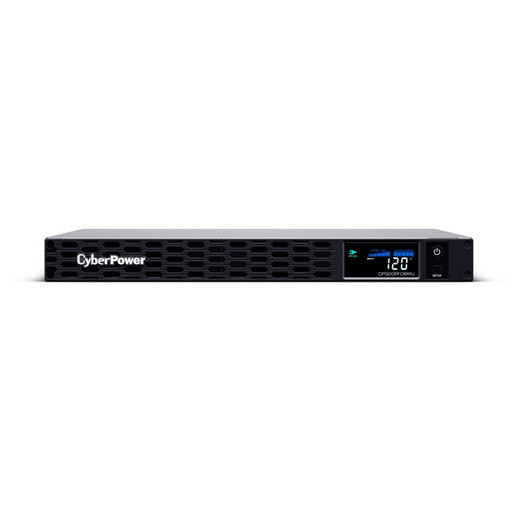

Housed in a 1U rack-mount chassis with a NEMA 5-15P plug, the CP1500PFCRM1U fits standard 19-inch equipment racks without requiring a dedicated power shelf. Six NEMA 5-15R outlets provide protected output across a 15A maximum current rating, giving integrators enough outlets to cover a compact rack deployment without supplemental PDU hardware.
Key Features
- Pure Sine Wave Output: Active PFC power supplies — used in virtually all modern rack servers, NAS devices, and higher-end PoE switches — require a clean sine wave during battery transfer. Simulated or stepped sine wave UPS units cause these supplies to fault or shut down on battery. The CP1500PFCRM1U eliminates that failure mode entirely.
- Line-Interactive Topology with 97–144V Operating Window: The automatic voltage regulation (AVR) stage corrects input voltage between 97V and 144V without switching to battery. In facilities with known low-voltage conditions or frequent brownouts, this directly extends battery life by reducing unnecessary discharge cycles.
- 900W / 1500VA Capacity at 0.6 Power Factor: Size your load budget carefully — at 0.6 PF, actual usable wattage is 900W. A rack drawing 600–700W of real load leaves comfortable headroom for runtime and avoids overload alarms. Stacking high-wattage GPU compute or dense PoE switches past 900W will trigger the overload alert.
- 8ms Transfer Time: The switch from utility to battery completes in 8 milliseconds — well within the hold-up time of virtually all ATX and server-grade power supplies. Equipment stays on; there is no visible interruption to connected loads.
- 1150 Joule Surge Energy Rating: Surge suppression rated to 1150J handles most transient events on commercial circuits, including nearby lightning strikes on the distribution network. EMI/RFI noise filtering is included, reducing line noise that can affect sensitive networking gear.
- 6 × NEMA 5-15R Outlets: All six outlets provide both battery backup and surge protection. A 15A maximum current rating across the bank means you can fully utilize the circuit without derating for the UPS itself.
- Audible Alarm System: Four distinct alarm modes — on-battery, fault, low battery, and overload — give operations staff immediate audible indication of the specific condition without requiring a monitoring console in view. For unmanned equipment rooms, pair with the unit's management interface for remote alerting.
- 57–63 Hz Input Frequency Acceptance: The wide frequency window accommodates both 60Hz utility and generator output, which commonly drifts under load. This matters in deployments that include a backup generator in the power chain — the UPS won't hunt or fault when generator frequency stabilizes.
Integration & Compatibility
The CP1500PFCRM1U runs on a standard 120V / 15A circuit with a NEMA 5-15P plug — compatible with any standard rack PDU or wall outlet. The 1U chassis integrates cleanly into 19-inch two-post or four-post racks. For PoE switch deployments in surveillance racks, size total PoE budget plus switch overhead against the 900W real-power ceiling before finalizing the load plan.
For larger rack deployments or environments requiring extended runtime, review the broader power protection and UPS catalog for higher-capacity rackmount options. When pairing with network video recorders, verify the NVR's power draw at full channel load — multi-bay NVRs with spinning drives can pull 150–250W before adding camera PoE injectors or switches on the same circuit. A UPS selection guide can help calculate runtime requirements based on total wattage and battery capacity.
Frequently Asked Questions
Q: Does the CP1500PFCRM1U produce a pure sine wave output on battery?
A: Yes. The CP1500PFCRM1U outputs a pure sine wave both during normal operation and during battery mode. This is the correct choice for active PFC power supplies, which are standard in modern rack servers, NAS units, and enterprise networking equipment.
Q: What is the real wattage capacity of the CP1500PFCRM1U?
A: The unit is rated 1500VA with a 900W real-power output capacity at a 0.6 power factor. When planning load, use the 900W figure — not the VA rating — to determine how much equipment you can protect without triggering an overload condition.
Q: How wide is the input voltage regulation range?
A: The line-interactive AVR stage handles input voltages between 97V and 144V without switching to battery. This range covers most utility brownout and overvoltage conditions on commercial circuits in North America.
Q: What outlets does the CP1500PFCRM1U provide?
A: Six NEMA 5-15R outlets, all providing combined battery backup and surge protection. The maximum current across all outlets is 15A, matching a standard 15A branch circuit.
Q: Will the CP1500PFCRM1U work with a backup generator?
A: Yes. The unit accepts input frequencies between 57Hz and 63Hz, which covers the frequency drift typical of generator output under load, preventing false faults during generator-fed operation.
Q: What is the surge energy rating on the CP1500PFCRM1U?
A: The surge suppression stage is rated at 1150 joules. EMI/RFI noise filtering is also included, which reduces line noise that can affect sensitive networking and storage equipment.
The CP1500PFCRM1U is the right call specifically because of its pure sine wave output — and that spec matters more than the VA rating in most rack deployments I see. Any switch or NVR with an active PFC supply will behave unpredictably or shut down hard on a simulated sine wave UPS under battery. The CP1500PFCRM1U eliminates that failure mode at a 1U rack footprint.
Technical Highlights:
- 97–144V AVR Range: The line-interactive stage corrects voltage continuously across a 47-volt window — that's wide enough to handle most commercial brownout conditions without a single battery discharge cycle, which directly extends battery service life in degraded-utility environments.
- 8ms Transfer Time: Eight milliseconds from utility loss to battery is fast enough that ATX and server PSUs with standard hold-up capacitors never see a power interruption. Drives don't spin down, NVR recordings don't gap, and switches don't reload their spanning tree.
- 1150J Surge + EMI/RFI Filter: Combining 1150 joule surge suppression with EMI/RFI noise filtering in the same 1U unit is useful in mechanical rooms or industrial spaces where motor switching generates consistent line noise — rack switches and NIC controllers are sensitive to that kind of interference.
Deployment Considerations:
- At a 0.6 power factor, the 1500VA rating translates to 900W of usable real power. If your rack has a PoE switch drawing 200W plus an NVR at 150W plus a server at 300W, you're already at 650W — leave headroom for spin-up surge and don't plan to run at 100% of the wattage ceiling.
- The six NEMA 5-15R outlets are on a single 15A bank — there is no load-shedding or segmentation between outlets. If a connected device draws a fault current, it affects all six outlets simultaneously, so don't mix critical and non-critical loads without an additional PDU tier.
This unit is well-positioned for compact surveillance head-end racks: one NVR, one managed PoE switch, and a fiber media converter typically land well under the 900W ceiling while leaving meaningful runtime reserve. It's also a clean fit for small branch IT closets running a PoE switch, a small NAS, and a firewall appliance on a single 15A circuit.
