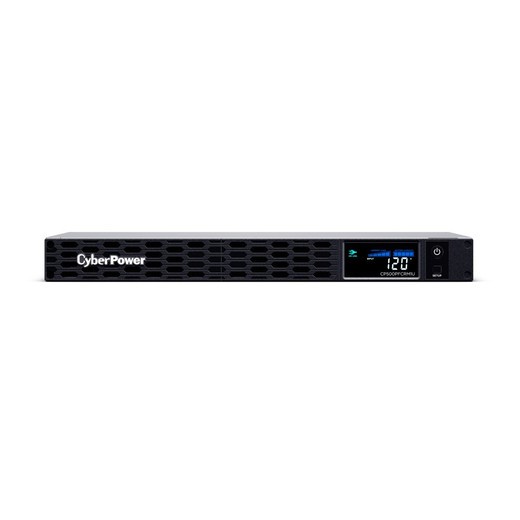

CyberPower CP500PFCRM1U 500VA Line-Interactive Rack UPS with Pure Sine Wave Output
Overview
The CyberPower CP500PFCRM1U is a 500VA/300W line-interactive rack UPS designed for 1U environments where power quality matters as much as protection. Pure sine wave output — not the simulated stepped waveform common in entry-level UPS units — makes this the right call for active PFC power supplies found in modern servers, NVRs, and network video recorders. Gear with active PFC circuits can behave erratically or trip under modified sine wave; the CP500PFCRM1U delivers a clean 120V/60Hz sine that those loads expect. At 300W true output, this unit is sized for edge rack deployments: a small NVR, a managed PoE switch, and an access control panel — not a full server room row, but exactly right for a compact IP camera head-end or branch-site equipment rack.
Key Features
- Pure Sine Wave Output: Delivers a true sinusoidal waveform at 120V/60Hz — critical for active PFC power supplies in modern NVRs, switches, and servers. Gear that misbehaves or alarms on modified sine wave will run cleanly here.
- Line-Interactive Topology: The built-in automatic voltage regulator (AVR) corrects input voltage swings from 88V to 144V without switching to battery. That 56V window handles brownouts and over-voltage events that would otherwise cycle the battery unnecessarily and shorten its life.
- 300W / 500VA Capacity at 0.6 Power Factor: Sized for compact edge deployments. A typical 8-channel NVR draws 25–40W; a 150W PoE switch another 15W under light load — leaving headroom for runtime extension. Size your connected load to 80% of rated watts (240W) for safe continuous operation.
- 1150 Joule Surge Energy Rating: Absorbs transient spikes before they reach connected equipment. Higher joule ratings mean more cumulative spike energy absorbed over the unit's life before the MOV protection degrades — 1150J is solid for a rack unit in this class.
- 8ms Transfer Time: Switches to battery within 8 milliseconds when input voltage falls outside the 88–144V operating window. That's well within the hold-up time of virtually all ATX and server-grade power supplies, so connected gear never sees a gap.
- 88–144V Input Operating Range: Wide input tolerance lets the AVR handle facility power that sags or surges without burning battery cycles. Sites with marginal utility power — older buildings, construction zones, industrial facilities — benefit most from this range.
- EMI/RFI Noise Filtering: Strips conducted electrical noise from the input line before it reaches connected equipment. For surveillance recorders and network gear, clean power reduces the risk of corrupted frames, disk write errors, and unexplained reboots.
- Audible Alarm System: Four distinct alarm modes — on-battery, fault, low battery, and overload — give on-site personnel actionable status without requiring software. In an unmanned IDF closet, the overload alarm alone can prevent a cascading failure.
Integration and Compatibility
The CP500PFCRM1U fits any standard 19-inch rack in a single 1U slot, making it compatible with typical security equipment racks used in PoE switch and NVR deployments. The NEMA 5-15P input plug and NEMA 5-15R outlets are standard North American configurations — no adapters needed for typical commercial installations. Input frequency tolerance of 57–63Hz accepts both standard 60Hz utility power and generator output that may drift slightly under load, which matters during extended outages. For larger installations or sites requiring SNMP-based UPS monitoring, review the broader CyberPower UPS lineup for models with network management cards and higher wattage ratings. If your load includes medical-grade equipment or precision test gear with tighter waveform requirements, verify equipment tolerances against the 120V ±5% output regulation spec before deploying.
Frequently Asked Questions
Q: Why does pure sine wave output matter for a rack UPS in this power class?
A: Active PFC power supplies — standard in modern servers, NVRs, and managed switches — require a sinusoidal input waveform. A modified sine wave (stepped approximation) can cause these supplies to run hot, produce audible buzz, trip protection circuits, or simply refuse to transfer cleanly. The CP500PFCRM1U's true sine wave output eliminates that risk entirely.
Q: What is the actual runtime at typical surveillance loads?
A: Runtime depends on connected wattage. At 300W (full rated load), runtime will be short — typically a few minutes, enough for a clean shutdown. At 50% load (150W), expect roughly double that. For extended runtime, CyberPower's line-interactive rack units with external battery packs in the same family are the appropriate upgrade path. Always target connected load at 80% of rated watts (240W) or below for safe continuous operation.
Q: Does the CP500PFCRM1U protect against both surges and brownouts?
A: Yes. The 1150J surge rating handles transient voltage spikes. The line-interactive AVR with 88–144V input range corrects brownouts and over-voltage conditions without switching to battery, which is the more common power quality issue in commercial facilities.
Q: Is the input plug and outlet configuration compatible with standard rack PDUs?
A: The unit uses a NEMA 5-15P input plug (standard 15A North American) and NEMA 5-15R output receptacles. It plugs directly into a standard wall outlet or rack PDU with 15A circuits. Verify your facility's circuit amperage before deploying — the unit draws up to 15A at maximum load.
Q: What triggers the audible alarms on the CP500PFCRM1U?
A: Four conditions: switching to battery power (utility outage or out-of-range voltage), fault condition (internal UPS fault), low battery (battery nearing depletion during runtime), and overload (connected load exceeds rated capacity). Each alarm is distinct, allowing personnel to diagnose the condition without software access.
The CP500PFCRM1U is one of the few UPS units in the sub-500VA 1U class that ships with a genuine pure sine wave output — and that distinction matters more than the wattage rating when you're protecting NVRs and managed switches with active PFC supplies. I've seen deployments where a lower-cost modified sine wave UPS caused intermittent NVR reboots that took days to trace back to the power supply reacting to the stepped waveform. The 8ms transfer time and 88–144V input window are the other numbers I look at first: 8ms is comfortably inside ATX hold-up specs, and that 56V input range means the AVR handles the brownouts that are far more common than full outages in most commercial facilities.
Technical Highlights:
- Pure Sine Wave at 500VA/300W: Genuine sinusoidal output at 120V/60Hz — not a stepped approximation. Active PFC supplies in modern NVRs, switches, and servers will transfer cleanly without audible noise or protection trips.
- 1150J Surge Rating: Above-average for a 1U unit in this wattage class. More joule capacity means the MOV protection survives more cumulative transients before degrading — relevant in facilities with frequent switching transients on the line.
- AVR Input Range 88–144V: Line-interactive AVR corrects voltage outside this range without a battery transfer. In a building with aging electrical infrastructure or near heavy motor loads, this prevents unnecessary battery cycling that shortens service life.
Deployment Considerations:
- At 0.6 power factor, the 500VA rating translates to 300W true output. Size your connected load to 240W (80% of rated) or below — a compact NVR plus one managed switch is a realistic load profile for this unit. Adding a second switch or a high-draw access control panel will push you toward the ceiling quickly.
- The NEMA 5-15P input draws up to 15A at rated load. Verify the rack circuit is a dedicated 15A or 20A branch before installing — sharing with other loads on a 15A circuit invites nuisance tripping.
This unit is the right fit for a compact IDF closet or branch-site security rack running a single NVR and one or two PoE switches, where clean sine wave output and brownout correction matter more than extended runtime — and where a 1U form factor is non-negotiable.
