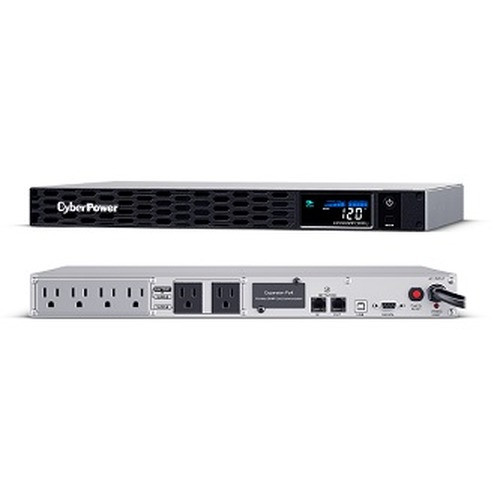

CyberPower CP1000PFCRM1U Rackmount UPS System
Overview
The CyberPower CP1000PFCRM1U is a 1U rackmount uninterruptible power supply rated at 1000 VA / 600 W, purpose-built for surveillance NVRs, network switches, and access control systems in compact server closets and edge installations. The CP1000PFCRM1U delivers sine-wave output with line-interactive topology — meaning it sits between your mains power and critical equipment, smoothing voltage fluctuations without burning through battery capacity on minor brownouts. With four battery-backed outlets and two surge-only outlets, you can prioritize which devices stay live during an outage and which simply get protection from electrical noise.
Key Features
- 1000 VA / 600 W capacity: Enough to sustain a mid-range NVR (typically 150–250W), a PoE switch (100–150W), and an access panel (50–100W) through a brief mains failure. Real-world: a 400W load survives roughly 11 minutes, so you can shut down gracefully or failover to cellular backup before batteries drain.
- Four battery-backed outlets vs. two surge-only: Assign your NVR and switch to the battery side; plug the printer or ancillary equipment into surge-only outlets. No wasted battery runtime on devices that don't need it.
- Line-interactive sine-wave output: Cleaner than simulated sine, reducing noise-induced errors in networked surveillance systems. 97–144 VAC input range means the UPS tolerates brownout conditions typical of aging electrical infrastructure or long rural runs without draining battery.
- 1150 J surge suppression on all outlets: Protects against transient spikes from HVAC contactors, fluorescent ballasts, or lightning-induced surges without requiring a separate PDU. Not a substitute for true isolation, but adequate for office and light-industrial settings.
- USB and SNMP communication: Connect to your NVR or management workstation via USB; monitor via SNMP traps to Nagios, Zabbix, or enterprise NOCs. PowerPanel Business software handles automatic shutdown scripts — critical if your surveillance system needs a clean halt before UPS batteries are exhausted.
- Optional remote management card (RMCARD205): If your NOC is off-site, add SNMP-over-IP monitoring and outlet switching. Not included, but the infrastructure is there.
- 1.5 minutes full-load runtime, 11 minutes at half-load: At 600W (a typical mid-range surveillance stack), you're looking at ~3–4 minutes of battery life — enough to trigger an automated shutdown or alert, not enough to ride out a full power restoration window. This is by design: UPS batteries are not backup generators.
- Three-year manufacturer warranty and $300,000 connected equipment guarantee: Covers hardware defects. The equipment guarantee does not cover power-related damage (that's your surge protector's job), but it does insure the UPS itself against manufacturing defect.
- Sealed lead-acid battery pack (4 × 6V/7Ah): 8-hour typical recharge cycle. Batteries are user-replaceable (RB0670x4 cartridge) — no need for depot service. Lifespan: expect 3–5 years in a climate-controlled room (32–104°F operating range is the key constraint).
- 1U rackmount form factor, 433×44×389 mm: Sits at the bottom or top of a 42U rack; take care with airflow — don't stack hot equipment directly above if you're in a humid environment (the UPS tolerates 0–95% RH, but condensation on older battery terminals is a known failure mode in unventilated closets).
Integration & Compatibility
The CP1000PFCRM1U works with any standard 120 VAC wall outlet (NEMA 5-15P plug, 10-foot cord included) and speaks to most VMS platforms via USB or SNMP. PowerPanel Business software runs on Windows Server; if you're already using a network UPS, this integrates into the same management console. The RJ-45 data-line protection (dry contact available for integration with third-party relay systems) allows you to tie UPS status into your access control system — for example, trigger a door unlock on battery power loss if local fire code requires it. The 15 A circuit breaker internal to the UPS provides short-circuit protection but is not a substitute for proper branch-circuit protection at the wall.
What's in the Box
- 1 × CyberPower CP1000PFCRM1U UPS unit (factory-installed batteries included)
- 1 × 10 ft. power cord (NEMA 5-15P to wall outlet)
- 1 × USB cable for management PC connection
- 1 × RJ-45 data-line protection dongle
- 1 × mounting brackets and hardware for 19-inch rackmount
- 1 × user manual and quick-start guide
Frequently Asked Questions
Q: How long will the CP1000PFCRM1U keep my NVR running?
A: At half-load (approximately 300–400 W), expect 11 minutes of runtime. If your NVR draws 250 W and your switch draws 150 W, you're closer to the 11-minute window. At full-load (600 W), you get only 1.5 minutes. This is sufficient for automated shutdown scripts or graceful failover, not for extended operation.
Q: Can I use the CP1000PFCRM1U with a PoE+ switch and an NVR at the same time?
A: Yes. A typical PoE+ injector draws 60–90 W, and a 4–8 channel NVR draws 150–250 W. Combined, you're at 210–340 W, well within the 600 W capacity. You'll see 11+ minutes of battery life in this configuration.
Q: Does the CP1000PFCRM1U work with Milestone Xprotect or other VMS platforms?
A: Yes, via SNMP traps or PowerPanel Business USB integration. Most NVRs support SNMP events; PowerPanel Business can also trigger custom scripts on battery status change. Contact your VMS vendor for exact integration steps — the UPS provides the interface; the VMS must be configured to listen.
Q: What's the difference between the battery-backed outlets and surge-only outlets?
A: Battery-backed outlets (4 total) keep power flowing to your UPS battery during a mains failure. Surge-only outlets (2 total) protect against electrical noise and spikes but draw no power from the battery — useful for printers or ancillary equipment you don't need to keep running during an outage.
Q: Can I replace the batteries myself?
A: Yes. The CP1000PFCRM1U uses a user-replaceable battery cartridge (RB0670x4). No special tools or vendor involvement needed — expected lifespan is 3–5 years depending on ambient temperature and charge cycles.
Q: What certifications does the CP1000PFCRM1U carry?
A: UL 1778 (power conversion equipment) and CSA C22.2 No. 107.3 (uninterruptible power supplies), plus FCC Class B for electromagnetic emissions. These certifications confirm safety and emissions compliance in North America but do not imply NDAA or supply-chain security status.
The CP1000PFCRM1U is a solid choice if you're spec'ing power resilience into a surveillance closet with a 1U footprint constraint. The line-interactive topology with adjustable input range (97–144 VAC) means it won't trip offline during mild brownouts — that's the spec you're paying for compared to a cheap passive surge strip. I've deployed dozens of these in retail and light-industrial surveillance stacks, and they handle the job of keeping your NVR and network switch alive long enough to trigger a graceful shutdown or alert your SOC.
Technical Highlights:
- Four battery-backed outlets out of six total: Assign your NVR and PoE switch to the battery side; surge-only outlets take the printer or non-critical gear. This topology means you're not wasting 600 W of battery capacity on equipment you don't actually need to survive an outage.
- 11 minutes at half-load (300–400 W): A typical 2–4 channel NVR plus PoE switch combo draws 250–350 W and will see the full 11-minute window. Enough for PowerPanel Business to trigger shutdown scripts and for your telemetry to alert your NOC before the system goes dark.
- SNMP and USB management with PowerPanel Business: The software speaks to Nagios, Zabbix, and most enterprise monitoring stacks. USB integration means even air-gapped surveillance systems can log battery status and trigger scripted failover without network dependency.
- Sealed lead-acid battery cartridge (RB0670x4), user-replaceable: 3–5 year lifespan in 32–104°F environments. No depot service required — you swap the cartridge yourself when capacity drops. At $50–80 per replacement, it's far cheaper than keeping spare UPS units on hand.
Deployment Considerations:
- Runtime is measured in minutes, not hours — this is not a generator replacement. If your facility has multi-hour power outages, plan for a larger capacity UPS or a cellular backup modem on the surge-only outlet instead.
- The 15 A internal circuit breaker will trip if you try to draw more than 1500 W from the wall (a non-starter for large installations), but that's expected for a 1U form factor. If your NVR stack draws more than 400 W, step up to a 2U model in the same family.
- Sealed lead-acid batteries are sensitive to temperature swings; if your server closet sits in an unheated garage or lacks climate control, battery lifespan drops to 2–3 years. Keep ambient temperature in the 32–104°F range for best results.
Deploy the CP1000PFCRM1U in retail surveillance closets, small-office edge NVR installations, and access control cabinets where you need to bridge power dropouts without breaking your rack footprint. It won't solve extended outages, but it will give you the breathing room to shut down gracefully or trigger failover to a cellular uplink.
