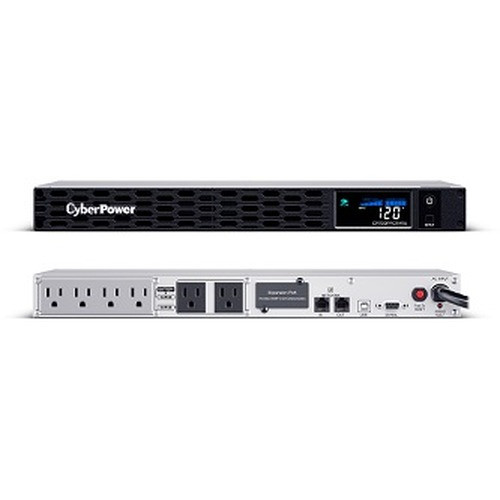

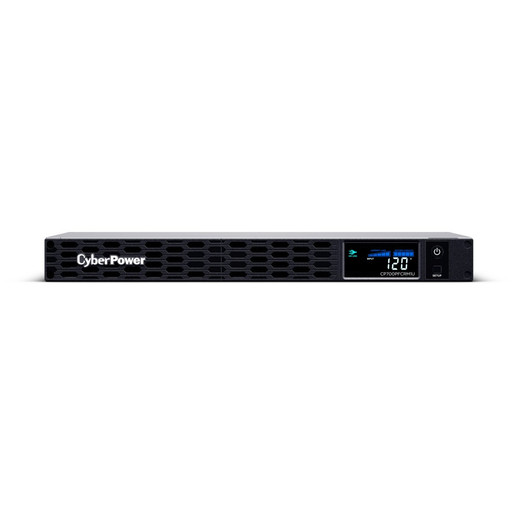

CyberPower CP700PFCRM1U 700VA Line-Interactive Pure Sine Wave Rack UPS
Overview
The CyberPower CP700PFCRM1U is a 700VA/400W line-interactive UPS in a 1U rackmount form factor, purpose-built for small server closets, network equipment racks, and power protection deployments where clean, conditioned power matters. It delivers a true sine wave output — not a simulated approximation — which makes it the right choice when you're protecting power-sensitive loads like active power factor correction (PFC) power supplies common in modern servers, NVRs, and network switches.
The CP700PFCRM1U sits at the entry point of CyberPower's rack-mount line-interactive family. Line-interactive topology means the unit actively regulates incoming voltage through its AVR (automatic voltage regulation) circuit before any load ever draws from the battery — smaller swings in grid voltage get corrected without touching battery reserves at all. That translates directly to longer battery life in real-world deployments where the grid fluctuates but doesn't fail outright.
Key Features
- Pure Sine Wave Output: Delivers a clean, utility-grade sine wave — not a modified or stepped approximation. Modern servers and NVRs with active PFC power supplies can behave erratically or trip protective circuits on modified sine wave UPS units. This unit avoids that entirely.
- 700VA / 400W Capacity (0.57 Power Factor): Sized for a single rack switch, an NVR with a handful of drives, or a small comms shelf. The 0.57 power factor means plan your loads against the 400W real-power ceiling, not the VA rating — a common sizing mistake that leads to overload conditions.
- Line-Interactive AVR — 88V to 144V Input Range: The AVR corrects input voltages between 88V and 144V without switching to battery. In environments where grid sag is common — older buildings, shared electrical panels, generator-backed circuits — this means the battery stays reserved for genuine outages rather than getting discharged by every brownout.
- 1150J Surge Energy Rating: Handles significant transient spikes before the protection circuitry is consumed. For a rack-mounted unit protecting switch and NVR hardware, 1150J provides meaningful margin against the kind of switching transients typical in commercial facilities.
- 8ms Transfer Time: Switches from line to battery in 8 milliseconds. Standard ATX and rackmount server power supplies hold through gaps well beyond that threshold, so equipment stays online through the transfer without a hiccup.
- EMI/RFI Filtering: Built-in noise filtering strips common-mode and differential-mode interference from the input line before it reaches your load. In surveillance and security rack environments where switching power supplies are dense, this matters for video quality and network stability.
- NEMA 5-15P Input / NEMA 5-15R Outlets: Standard 15A plug and receptacles — no special wiring or adapters required for typical US commercial installs. Maximum current draw is 15A, consistent with a standard 15A circuit.
- Audible Alarm System: Four distinct alarm modes — on-battery, fault, low battery, and overload — give installers and on-site staff immediate audio indication of what's happening without needing to pull up management software. On a security rack in a back room, that matters.
- 57–63 Hz Input Frequency Acceptance: Tolerates minor frequency deviation from nominal 60Hz, which is relevant in generator-backed installations where frequency regulation during load transitions isn't always tight.
Integration and Compatibility
The CP700PFCRM1U fits any standard 19-inch rack in a single rack unit. The NEMA 5-15R outlet configuration makes it compatible with virtually all US commercial network, NVR, and communications equipment without adapters. The pure sine wave output ensures compatibility with active PFC server and NVR power supplies — the specific failure point of cheaper modified sine wave units in this application class.
For PoE switches and small NVRs in distributed security rack enclosures, the 400W real-power ceiling is sufficient for a 4–8 port managed switch plus a standalone recorder. Size up to a higher-wattage model if your load budget exceeds 320W continuous (leaving 20% headroom as standard practice).
CyberPower's PowerPanel software is compatible with this unit for automated shutdown scripting — useful in unmanned equipment rooms where a graceful OS shutdown during extended outages prevents data corruption on NVR drives.
Frequently Asked Questions
Q: Does the CP700PFCRM1U produce a true sine wave or a modified sine wave?
A: True sine wave. The CP700PFCRM1U outputs a utility-grade sine wave on battery, making it compatible with active PFC power supplies in modern servers, NVRs, and managed switches that can fault or behave erratically on modified sine wave units.
Q: What is the real power (watt) capacity of the CP700PFCRM1U?
A: 400W. The VA rating is 700VA with a 0.57 power factor. Always size your load against the 400W watt ceiling — not the VA figure — to avoid overload conditions.
Q: How wide a voltage range will the CP700PFCRM1U regulate without switching to battery?
A: The automatic voltage regulation (AVR) circuit corrects input voltages from 88V to 144V without drawing from the battery. Grid sags and surges within that range are handled in-line, preserving battery runtime for true outages.
Q: What is the transfer time to battery on the CP700PFCRM1U?
A: 8 milliseconds. Standard server and network equipment power supplies typically hold through gaps of 20ms or more, so an 8ms transfer is well within the tolerance of connected loads.
Q: What rack space does the CP700PFCRM1U require?
A: 1U in a standard 19-inch rack. It uses a NEMA 5-15P plug — no dedicated circuit or special wiring is required beyond a standard 15A outlet.
Q: What is the surge energy rating on the CP700PFCRM1U?
A: 1150 joules. This rating reflects how much transient energy the surge suppression circuitry can absorb before it is exhausted — relevant for protecting switching equipment in commercial environments with transient-prone electrical infrastructure.
The spec I always check first on a rack UPS is whether it's true sine wave — and the CP700PFCRM1U is. That 0.57 power factor and 400W real-power ceiling is the other number you need to anchor your load budget to before you spec this unit into a security or network rack; the 700VA headline is misleading if you're loading it with active PFC gear.
Technical Highlights:
- 88–144V AVR Range: A 56-volt correction window means the battery stays out of play during the minor grid fluctuations common in commercial buildings and generator-backed systems — real-world battery longevity depends heavily on this.
- 1150J Surge Rating: Solid absorption capacity for a 1U unit at this price tier. Adequate for protecting a managed PoE switch and NVR combination against transient spikes on shared commercial circuits.
- 8ms Transfer Time: Well inside the hold-up window of every ATX and server PSU I've tested. Connected loads won't see an interruption through a normal line-to-battery transfer.
Deployment Considerations:
- The 0.57 power factor is the dominant constraint — if your PoE switch plus NVR plus ancillary gear adds up to more than 320W continuous (80% of 400W), size up to the next model in the family. Hitting the watt ceiling triggers the overload alarm and can force a shutdown.
- The NEMA 5-15P input limits you to a standard 15A branch circuit at 120V. If your rack is already near circuit capacity with other loads, confirm available amperage before installing — this unit draws up to 15A at full load.
This unit fits well in a wall-mount or telco rack deployment protecting a single PoE switch and standalone NVR — a typical distributed access-control or small surveillance node where you need clean power and brownout ride-through but don't need multi-kilowatt capacity.
