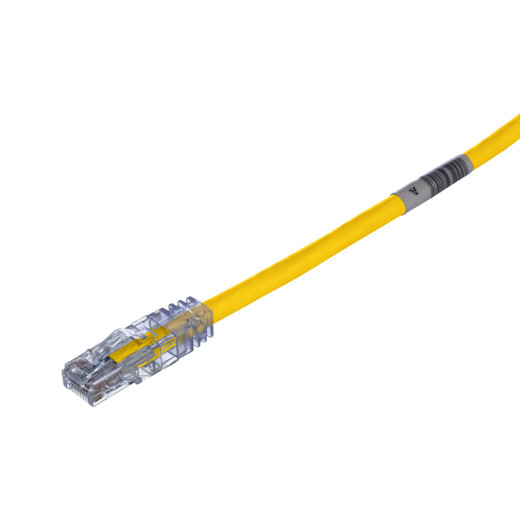

Panduit UTPSPL1MYLY 1m Cat 6 UTP Patch Cord Yellow

Overview

The Panduit UTPSPL1MYLY is a 1-meter, yellow Cat 6 Unshielded Twisted Pair (UTP) patch cord designed for high-performance network infrastructure. Constructed with 24 AWG stranded copper conductors and a Low Smoke Zero Halogen (LSZH) jacket rated IEC 60332-1, this cable supports demanding applications including Gigabit Ethernet and Power over Ethernet (PoE++). Its design streamlines installation and maintenance in environments requiring reliable data transmission and compliance with fire safety standards.

Compatibility

This Cat 6 UTP patch cord is engineered to exceed ANSI/TIA-568.2-D Category 6 and ISO 11801 Class E standards up to 250 MHz. It is compatible with 10BASE-T, 100BASE-T, 1000BASE-T, and limited-distance 10GBASE-T Ethernet networks. It also supports various ATM speeds (155 Mb/s, 622 Mb/s, 1.2 Gb/s), Token Ring (4/16 Mbps), VoIP, and digital video applications. The cable supports IEEE 802.3af, 802.3at, and 802.3bt type 3 & 4 PoE applications, delivering up to 100W.

Installation Notes

Features a patented tangle-free latch that prevents snags during moves, adds, and changes, simplifying network management. The slender strain-relief boot provides easy access in high-density patching situations. RapidID pre-installed barcodes facilitate quick port mapping with compatible software. The cord is wired for compatibility with both T568A and T568B schemes.
