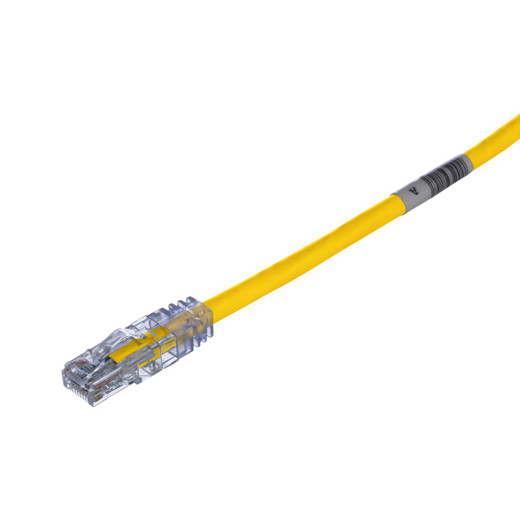

Panduit UTPSP1MYLY Cat 6 1m Yellow UTP Patch Cord

Overview

The Panduit UTPSP1MYLY is a 1-meter, yellow Cat 6 UTP patch cord designed for reliable data transmission in structured cabling systems. It features 24 AWG stranded copper conductors and CM-rated jacket for use in general-purpose applications. The integrated tangle-free latch simplifies installation and removal, crucial for high-density environments where frequent moves, adds, and changes occur. Its slender strain relief boot also aids accessibility in tight spaces. This cord is factory tested for wire map, NEXT, and return loss, ensuring performance meets or exceeds TIA-568.2-D Cat 6 and ISO 11801 Class E standards up to 250 MHz.

Compatibility

This patch cord is compatible with any network device utilizing RJ45 modular plugs and supporting T568A or T568B wiring schemes. It is suitable for Ethernet applications including 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet), and 10GBASE-T over limited distances as specified by industry standards. It also supports various ATM speeds, token ring, digital video, and VoIP deployments. The cord is engineered to support IEEE 802.3af/at and 802.3bt (Type 3 & Type 4) Power over Ethernet applications, delivering up to 90W of power.

Installation Notes

The CM flammability rating indicates suitability for general-purpose riser or horizontal applications, but not for plenums. The tangle-free latch design requires a simple press to release, preventing accidental disconnections or damage during cable management. The slender strain relief boot is designed to minimize the bend radius impact on the connector, improving durability in high-density rack environments.
