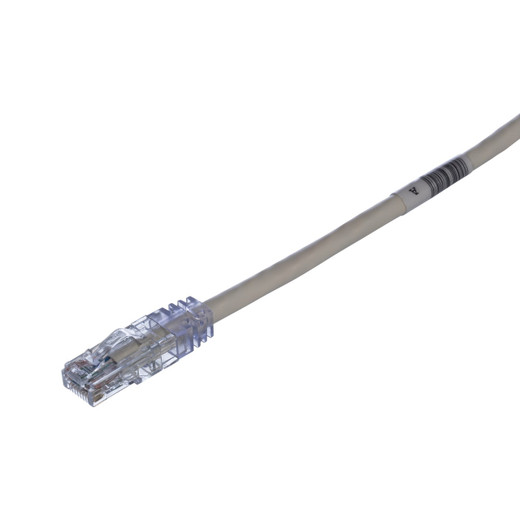

Panduit UTPSPL1MY Cat 6 1m UTP Patch Cord

Overview

The Panduit UTPSPL1MY is a 1-meter (3.3 ft) Cat 6 UTP patch cord designed for reliable network connectivity in environments requiring enhanced safety features. Its LSZH (Low Smoke Zero Halogen) jacket material makes it suitable for installations where fire safety is critical, such as in data centers, public buildings, or transportation hubs. The cable construction is U/UTP (Unshielded Twisted Pair) with 24 AWG stranded copper conductors, ensuring flexibility and ease of installation. This cord supports high-speed data transmission up to 10 Gbps over limited distances, as specified by industry standards, and is rated for 2500 mating cycles with PoE++ (802.3bt Type 3/4), making it robust for demanding network infrastructure.

Compatibility

This Panduit Pan-Net TX6 PLUS patch cord is engineered to exceed ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA standards, ensuring compatibility with network devices requiring Category 6A performance up to 500 MHz. It is suitable for use with Ethernet 10BASE-T, 100BASE-T, 1000BASE-T, and 10GBASE-T applications. The RJ45 modular plugs are designed for standard network ports found on switches, routers, servers, workstations, and other network-enabled equipment. Its LSZH construction also makes it a compliant choice for specific building codes and safety regulations.

Installation Notes

The UTPSPL1MY features a patented tangle-free latch that prevents snagging during installation and removal, simplifying moves, adds, and changes in high-density environments. The slender strain relief boot allows for easier access and connection in tightly packed racks. Pre-installed RapidID barcodes facilitate quick port mapping and network management when used with compatible RapidID software. The cable is 100% performance tested for wire map, Near-End Crosstalk (NEXT), and return loss to ensure optimal signal integrity.
