Pelco EXPE2-2X30-SPT-IRM1F vs Pelco P2230L-FW0: Specification Comparison

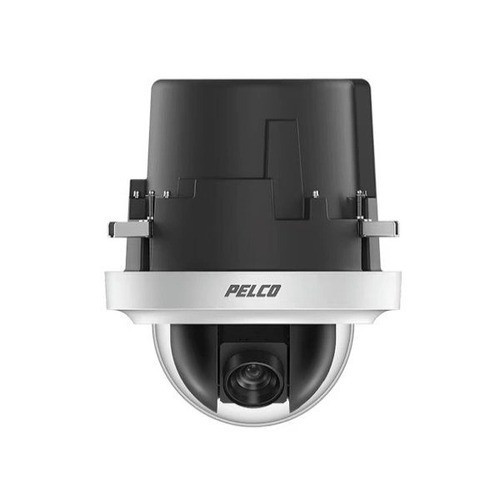

Both the Pelco EXPE2-2X30-SPT-IRM1F and the Pelco P2230L-FW0 (Spectra Pro 2) are 2MP 30x optical zoom PTZ cameras from the same manufacturer, making them legitimate cross-shop candidates for installers evaluating perimeter or wide-area surveillance coverage. The EXPE2-2X30-SPT-IRM1F is positioned as a ruggedized, explosion-rated industrial PTZ with active IR illumination, while the P2230L-FW0 is a flush wall-mount dome PTZ designed for commercial environments with high frame rate output and PoE+ convenience.
In This Guide
How do the imaging specs compare?
Both cameras deliver 2MP (1920×1080) resolution with a 30x optical zoom lens sharing an identical 4.3–129mm focal length range. The P2230L-FW0 specifies a 1/2.8-inch progressive scan CMOS sensor and a maximum frame rate of 60 fps, along with a horizontal field of view ranging from 77° (wide) to 2.6° (tele). The EXPE2-2X30-SPT-IRM1F does not publish a sensor size or maximum frame rate in the provided specifications.
For low-light performance, the EXPE2-2X30-SPT-IRM1F includes active IR illumination at 850nm with a rated range of 200m, supporting Day/Night operation. The P2230L-FW0 provides no IR illumination per its specifications. On dynamic range, the P2230L-FW0 specifies 120dB SureVision WDR; the EXPE2-2X30-SPT-IRM1F lists WDR as a feature but does not state a dB value. Both encode H.265 and H.264; the P2230L-FW0 additionally supports Motion JPEG, which the EXPE2-2X30-SPT-IRM1F does not list.
What about installation and environment?
Both cameras carry IP66 and IP67 ingress protection ratings. The EXPE2-2X30-SPT-IRM1F extends this with NEMA 4X and 6P ratings and a broad suite of hazardous-location certifications including ATEX, IECEx, EACEx, UKEx, INMETRO, and Lloyd's Register Marine Type Approval — making it suitable for explosive atmospheres and marine environments. The P2230L-FW0 adds IK10 impact resistance, which is not listed for the EXPE2-2X30-SPT-IRM1F.
Operating temperature ranges diverge significantly: the EXPE2-2X30-SPT-IRM1F is rated from -40°C to +70°C (-40°F to +158°F), while the P2230L-FW0 is rated -10°C to +60°C. For power, the P2230L-FW0 is PoE+ powered; the EXPE2-2X30-SPT-IRM1F does not list a PoE class but provides an RJ45 connector (CAT5e cabling) and an SFP slot for fiber uplink. Mounting options for the EXPE2-2X30-SPT-IRM1F include wall, ceiling, pole, corner, and rack; the P2230L-FW0 is a flush wall-mount dome. The EXPE2-2X30-SPT-IRM1F weighs 35kg (77 lbs) with dimensions of 453×232×398mm — substantially larger than the P2230L-FW0, for which weight and dimensions are not specified.
Which fits your VMS and analytics better?
Both cameras are ONVIF Profile S, T, G, and M compliant. The EXPE2-2X30-SPT-IRM1F explicitly notes compatibility with third-party VMS platforms. Its analytics are described as Smart Analytics powered by Motorola, covering object detection and classification and home-position-based behavior. The P2230L-FW0 lists auto-tracker, EIS (electronic image stabilization), and motion detection as its analytics features. Neither camera specifies on-board edge storage in the provided specifications.
Audio input and output are listed as 'None' for the EXPE2-2X30-SPT-IRM1F. The P2230L-FW0 does not address audio in its provided specifications. The P2230L-FW0 specifies 256 pan/tilt presets and a pan range of 360° continuous with tilt from -90° to +1°; the EXPE2-2X30-SPT-IRM1F lists pan and tilt capability with 30x optical zoom and remote focus but does not specify a preset count or exact tilt range in the provided data.
Which should you choose: the EXPE2-2X30-SPT-IRM1F or the P2230L-FW0?
Our take: The EXPE2-2X30-SPT-IRM1F is the stronger choice when the deployment demands hazardous-location certification, extreme temperature tolerance, or active IR illumination over long distances. Its ATEX/IECEx/Marine-approved housing and -40°C to +70°C operating range make it suited for refineries, offshore platforms, and cold-climate perimeters where the P2230L-FW0's -10°C lower limit and absence of hazardous-area certifications disqualify it. The 200m IR range at 850nm provides usable imagery in zero-ambient-light conditions the P2230L-FW0 cannot address. Conversely, the P2230L-FW0 is the more practical choice for commercial indoor or sheltered outdoor installations: its 60 fps frame rate (vs. not specified for the EXPE2-2X30-SPT-IRM1F), 120dB SureVision WDR, IK10 impact rating, and PoE+ single-cable power delivery reduce infrastructure cost and suit retail, transit, or corporate environments. Its flush wall-mount form factor also offers a lower visual profile. Match each unit to its environment.
Side-by-Side Comparison
Spec-for-spec, from manufacturer data.
| Specification | Pelco EXPE2-2X30-SPT-IRM1F | Pelco P2230L-FW0 |
|---|---|---|
| Resolution | 2MP (1920×1080) | 2MP (1920×1080) |
| Image Sensor | — | 1/2.8" progressive scan CMOS |
| Max Frame Rate | — | 60 fps |
| Optical Zoom | 30x | 30x |
| Lens / Focal Length | 4.3–129mm, F1.6, varifocal | 4.3–129mm, varifocal |
| HFOV | — | 77° (wide) to 2.6° (tele) |
| WDR | WDR (dB not specified) | 120 dB SureVision |
| IR Illumination | 850nm, 200m range | — |
| Video Compression | H.265; H.264 | H.265; H.264; Motion JPEG |
| IP Rating | IP66 / IP67 / NEMA 4X / 6P | IP66 / IP67 |
| IK / Impact Rating | — | IK10 |
| Hazardous-Location Certs | ATEX; IECEx; EACEx; UKEx; INMETRO; Lloyd's Marine | — |
| Operating Temperature | -40°C to +70°C | -10°C to +60°C |
| Power Input | RJ45 (CAT5e) + SFP slot (power class not specified) | PoE+ |
| Pan / Tilt Range | Pan and tilt (range not specified) | 360° continuous pan; -90° to +1° tilt |
| Presets | — | 256 |
| Audio | Input and Output: None | — |
| Dimensions | 453×232×398mm (17.83"×9.13"×15.7") | — |
| Weight | 35 kg (77 lbs) | — |
| Warranty | 3-year limited (5-year extended available) | 5-year |
Frequently Asked Questions
Which should you choose: the EXPE2-2X30-SPT-IRM1F or the P2230L-FW0?
The EXPE2-2X30-SPT-IRM1F is the stronger choice when the deployment demands hazardous-location certification, extreme temperature tolerance, or active IR illumination over long distances. Its ATEX/IECEx/Marine-approved housing and -40°C to +70°C operating range make it suited for refineries, offshore platforms, and cold-climate perimeters where the P2230L-FW0's -10°C lower limit and absence of hazardous-area certifications disqualify it. The 200m IR range at 850nm provides usable imagery in zero-ambient-light conditions the P2230L-FW0 cannot address. Conversely, the P2230L-FW0 is the more practical choice for commercial indoor or sheltered outdoor installations: its 60 fps frame rate (vs. not specified for the EXPE2-2X30-SPT-IRM1F), 120dB SureVision WDR, IK10 impact rating, and PoE+ single-cable power delivery reduce infrastructure cost and suit retail, transit, or corporate environments. Its flush wall-mount form factor also offers a lower visual profile. Match each unit to its environment.
Is the EXPE2-2X30-SPT-IRM1F or P2230L-FW0 better for low-light and night-time coverage?
The EXPE2-2X30-SPT-IRM1F is better for low-light environments: it includes built-in 850nm IR illumination rated to 200m, enabling imaging in total darkness. The P2230L-FW0 does not list any IR illumination in its specifications, so it relies on ambient or supplemental lighting for nighttime operation.
Can either camera be installed in a hazardous or explosive atmosphere?
Only the EXPE2-2X30-SPT-IRM1F carries hazardous-location certifications — specifically ATEX, IECEx, EACEx, UKEx, and INMETRO — along with Lloyd's Register Marine Type Approval. The P2230L-FW0 has no such certifications listed and is not specified for use in explosive atmospheres.
Which camera is easier to install on a standard commercial network?
The P2230L-FW0 is simpler to deploy in a standard commercial network: it is PoE+ powered, meaning a single Ethernet cable delivers both data and power. The EXPE2-2X30-SPT-IRM1F does not specify a PoE power class; its connectivity is via RJ45 (CAT5e) or an SFP fiber slot, which may require a separate power source and adds infrastructure complexity — though the SFP slot is an advantage for long cable runs or electrically noisy industrial sites.
