Hanwha C9083R vs i-PRO S2570L: Specification Comparison
This comparison evaluates two 8MP/4K outdoor fixed-dome IP cameras aimed at B2B installers and IT security buyers: the Hanwha XNV-C9083R and the i-PRO WV-S2570L. Both deliver 4K resolution in vandal-resistant dome housings rated for outdoor deployment, with H.265 compression and ONVIF compliance. The XNV-C9083R arrives with a comprehensive published datasheet; the WV-S2570L specification sheet provided is sparse, leaving many fields unconfirmed. All claims below are drawn strictly from the provided specifications.
In This Guide
How do the imaging specs compare?
The Hanwha XNV-C9083R uses a 1/1.8" progressive-scan CMOS sensor delivering 3840×2160 at 30 fps, with a motorized varifocal lens spanning 4.4–9.3 mm (2.1× zoom), a maximum aperture of F1.3 at wide angle, and a minimum color illumination of 0.04 lux (0 lux with IR). It includes extremeWDR at 120 dB, WiseNR II AI-based noise reduction, built-in gyro-based digital image stabilization, WiseIR with a 40 m IR range, P-iris control, and LDC (lens distortion correction). DORI distances at wide/tele are published: Detect 50.8/176.6 m, Identify 5.1/17.7 m.

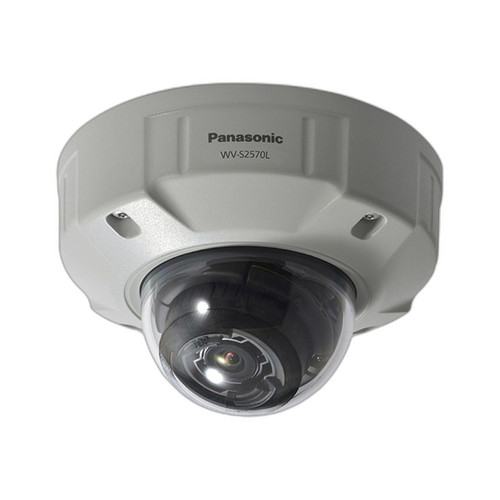

The i-PRO WV-S2570L is listed as 4K (8 MP) but the provided spec sheet does not confirm sensor size, frame rate, lens focal length, aperture, minimum illumination, WDR rating, IR capability, or DORI distances. Sensor and optical performance cannot be compared on a like-for-like basis with the data available. Buyers evaluating low-light or wide-dynamic-range performance should request the full i-PRO datasheet before making a decision.
What about installation and environment?
The XNV-C9083R carries IP66/IP67, NEMA 4X, and IK10 ratings, operates from -40°C to +55°C, and draws up to 12.95 W on PoE IEEE 802.3af Class 3 or 12 VDC. Its aluminum housing with hard-coated dome bubble measures ø160×118 mm and weighs 1,450 g. A Micro USB Type B port provides 1280×720 live video for on-site alignment without a laptop. Pan/tilt/rotate ranges are 0–360°/−45°–75°/0–355°, and edge storage supports Micro SDXC up to 512 GB.
The WV-S2570L is listed at IP66 and is described as vandal-resistant; the spec sheet references compatibility with high-impact enclosures. Power is listed as PoE+ (802.3at) in one field and PoE++ in another — an inconsistency in the provided data that installers should clarify with i-PRO before switch selection. Operating temperature range, housing material, dimensions, weight, mounting details beyond ceiling/wall, and edge storage capability are not provided in the supplied specification sheet.
Which fits your VMS and analytics better?
The XNV-C9083R supports ONVIF Profile S/G/T/M, SUNAPI, and the Wisenet SDK. Its AI analytics engine classifies persons, faces, vehicles (car/bus/truck/motorcycle/bicycle), and license plates; supports virtual line crossing with direction, virtual area detection, people counting, queue management, and heatmap. It offers 8 polygonal motion-detection zones, 32 privacy masks with mosaic option, 2 configurable alarm I/O ports, and MQTT support. Network security features include 802.1X (EAP-TLS/LEAP/PEAP), SRTP, HTTPS/Digest authentication, IP filtering, and device certificates.
The WV-S2570L lists ONVIF Profile S/T/G and confirmed VMS compatibility with Milestone XProtect, Genetec Security Center, and AXIS Camera Station — a broader named-VMS compatibility list than what is explicitly stated for the XNV-C9083R in the provided specs. However, analytics capabilities, alarm I/O count, privacy masking, cybersecurity features, and supported protocols are not described in the provided spec sheet. Organizations already standardized on Milestone or Genetec will note the i-PRO's explicit certification, while Wisenet/SUNAPI environments benefit from the Hanwha's native integration.
Which should you choose: the C9083R or the S2570L?
Our take: The XNV-C9083R is the stronger choice when detailed, verifiable specifications are required to justify a purchase decision: it publishes a 120 dB extremeWDR rating versus an unconfirmed WDR spec for the WV-S2570L, delivers a documented 40 m WiseIR range versus no IR data for the i-PRO, and operates across a confirmed -40°C to +55°C temperature range versus an unstated range for the WV-S2570L. Its on-board AI classifies five vehicle subtypes and supports people counting, queue management, and heatmap analytics out of the box, while the S2570L lists no analytics in the provided data. The WV-S2570L's meaningful advantage is explicit named-VMS certification for Milestone XProtect and Genetec Security Center — relevant on enterprise sites already standardized on those platforms. Until i-PRO publishes a complete spec sheet for the S2570L, the XNV-C9083R is the only camera in this pair whose performance can be fully validated against project requirements.
Side-by-Side Comparison
Spec-for-spec, from manufacturer data.
| Specification | Hanwha C9083R | i-PRO S2570L |
|---|---|---|
| Resolution | 3840×2160 (8 MP) | 4K (8 MP) |
| Sensor Size | 1/1.8" progressive CMOS | — |
| Max Frame Rate | 30 fps @ 8 MP | — |
| Lens / Focal Length | 4.4–9.3 mm motorized varifocal (2.1×), F1.3–F2.15 | — |
| Min. Illumination | 0.04 lux color / 0 lux IR | — |
| WDR | extremeWDR 120 dB | — |
| IR Range | WiseIR 40 m (131 ft) | — |
| Operating Temperature | -40°C to +55°C | — |
| Ingress / Impact Rating | IP66/IP67, NEMA 4X, IK10 | IP66; vandal-resistant (IK rating not specified) |
| Power Input / PoE Class | PoE 802.3af Class 3 (max 12.95 W) or 12 VDC | PoE+ 802.3at (PoE++ also listed — confirm with vendor) |
| Video Compression | H.265, H.264, MJPEG | H.265, H.264 |
| ONVIF Profiles | S / G / T / M | S / T / G |
| Named VMS Certifications | — | Milestone XProtect; Genetec Security Center; AXIS Camera Station |
| AI / Edge Analytics | Person, Face, Vehicle (5 subtypes), License plate; people counting, queue, heatmap | — |
| Alarm I/O | 2 configurable I/O ports | — |
| Edge Storage | Micro SDXC up to 512 GB | — |
| Dimensions / Weight | ø160×118 mm / 1,450 g (3.20 lb) | — |
| Warranty | 3 years | — |
Frequently Asked Questions
Which should you choose: the C9083R or the S2570L?
The XNV-C9083R is the stronger choice when detailed, verifiable specifications are required to justify a purchase decision: it publishes a 120 dB extremeWDR rating versus an unconfirmed WDR spec for the WV-S2570L, delivers a documented 40 m WiseIR range versus no IR data for the i-PRO, and operates across a confirmed -40°C to +55°C temperature range versus an unstated range for the WV-S2570L. Its on-board AI classifies five vehicle subtypes and supports people counting, queue management, and heatmap analytics out of the box, while the S2570L lists no analytics in the provided data. The WV-S2570L's meaningful advantage is explicit named-VMS certification for Milestone XProtect and Genetec Security Center — relevant on enterprise sites already standardized on those platforms. Until i-PRO publishes a complete spec sheet for the S2570L, the XNV-C9083R is the only camera in this pair whose performance can be fully validated against project requirements.
Does the Hanwha XNV-C9083R support license plate recognition?
The XNV-C9083R lists license plate as a classified object type within its AI analytics engine. The spec sheet does not specify a dedicated LPR/ANPR mode or associated accuracy metrics; installers should validate performance under their specific lighting and capture-angle conditions.
What PoE standard does each camera require?
The XNV-C9083R requires PoE IEEE 802.3af Class 3 (max 12.95 W) or 12 VDC — standard PoE switches are sufficient. The WV-S2570L is listed as PoE+ (802.3at) in one field and PoE++ in another; this inconsistency in the provided data should be confirmed with i-PRO before switch selection.
Is the i-PRO WV-S2570L compatible with Hanwha's Wisenet VMS?
The WV-S2570L lists ONVIF Profile S/T/G compliance, so it will integrate with any ONVIF-compliant VMS including Wisenet WAVE at a baseline level. Native SUNAPI or Wisenet-SDK features will not be available on the i-PRO camera.
