Geovision MD87100-0D010 vs Geovision TDR885W-2F10: Specification Comparison

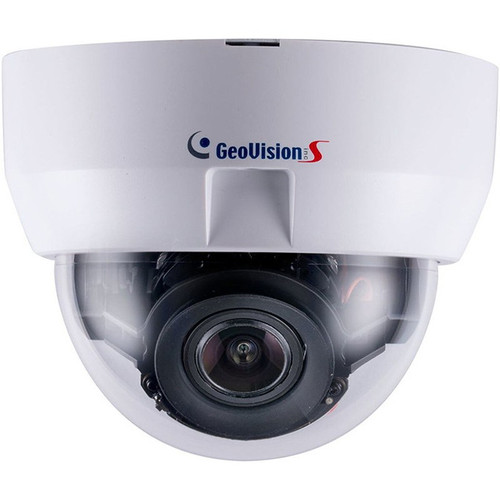

Both the Geovision MD87100-0D010 and the TDR885W-2F10 are 8MP IP dome cameras from the same manufacturer, operating on 802.3af PoE and targeting commercial surveillance deployments. The MD87100-0D010 is a full-size IR dome with a motorized varifocal lens, while the TDR885W-2F10 is a compact mini dome with a fixed lens. Buyers cross-shopping these two will be weighing lens flexibility and richer VMS integrations against a smaller footprint and simpler fixed-angle installation.
In This Guide
How do the imaging specs compare?
Both cameras share an 8MP resolution and WDR Pro, providing comparable dynamic range performance in mixed-lighting environments. The MD87100-0D010 is built around a 1/2.5" sensor, uses a motorized varifocal 4–8mm lens with a maximum aperture of F/1.44, and delivers H.265 compression. The TDR885W-2F10 specifies a fixed 2.8mm lens; sensor size, maximum aperture, and compression codec are not stated in the provided specifications.
On IR and low-light capability, the MD87100-0D010 documents IR LEDs with an auto IR-cut filter and Day/Night operation. The TDR885W-2F10 lists IR night vision but provides no further detail on IR range, cut-filter mechanism, or minimum illumination figures. Neither product's provided specifications include a minimum illumination lux value or a stated IR throw distance, so a direct low-light number comparison cannot be made from the available data.
What about installation and environment?
Both cameras are powered by 802.3af PoE (the MD87100-0D010 is specified at a maximum draw of 12.95W). The MD87100-0D010 supports six mounting configurations—wall, ceiling, pole, pendant, corner, and rack—providing significant installation flexibility across diverse site geometries. The TDR885W-2F10 is specified for ceiling mount only. IP/IK environmental ratings, operating temperature range, and humidity tolerance are not provided in the specifications for either model, so suitability for outdoor or harsh-environment deployment cannot be confirmed from the available data.
The MD87100-0D010 has physical dimensions of 200 × 170 × 257.5 mm and weighs 3.17 kg (6.99 lb), consistent with a full-size dome housing. The TDR885W-2F10's dimensions and weight are not stated in the provided specifications, though its classification as a 'Mini IP Dome' implies a smaller form factor suited to discreet ceiling installations.
Which fits your VMS and analytics better?
The MD87100-0D010 is documented as ONVIF Profile S compliant and explicitly validated with Geovision GV-VMS, Milestone, and third-party ONVIF RTSP platforms. It also includes on-camera face detection analytics. The TDR885W-2F10 is listed as ONVIF compliant and compatible with Geovision GV-VMS; no specific ONVIF profile level, no third-party VMS validation beyond GV-VMS, and no edge analytics capabilities are stated in the provided specifications.
Audio support, onboard SD card or edge storage, and alarm I/O are not specified for either model in the provided data. Buyers requiring confirmed Milestone integration, edge analytics, or a defined ONVIF profile level should note that only the MD87100-0D010 provides that documentation.
Which should you choose: the MD87100-0D010 or the TDR885W-2F10?
Our take: The MD87100-0D010 is the stronger choice when installation geometry is variable, remote lens tuning post-install is required, or the VMS environment extends beyond Geovision's own platform. Its motorized varifocal 4–8mm lens (vs. the TDR885W-2F10's fixed 2.8mm) allows field-of-view adjustment without physical lens changes, its 1/2.5" sensor size and F/1.44 aperture are documented (neither is specified for the TDR885W-2F10), and its VMS compatibility list explicitly includes Milestone alongside ONVIF Profile S and GV-VMS. It also adds face detection analytics absent from the TDR885W-2F10's spec sheet. The TDR885W-2F10 merits consideration where a compact ceiling-mount footprint is the primary requirement and the deployment is a pure GV-VMS or generic ONVIF environment—though buyers should request full environmental, sensor, and compression specifications from the manufacturer before finalizing that choice.
Side-by-Side Comparison
Spec-for-spec, from manufacturer data.
| Specification | Geovision MD87100-0D010 | Geovision TDR885W-2F10 |
|---|---|---|
| Resolution | 8 MP | 8 MP |
| Form Factor | Dome | Mini Dome |
| Image Sensor Size | 1/2.5" | — |
| Lens / Focal Length | Varifocal 4–8mm motorized | Fixed 2.8mm |
| Max Lens Aperture | F/1.44 | — |
| IR / Low Light | IR LEDs; Day/Night; Auto IR-cut filter | IR night vision |
| WDR | WDR Pro | WDR Pro |
| Video Compression | H.265 | — |
| Power Input | PoE 802.3af; 12.95W max | PoE 802.3af |
| Mount Types | Wall; Ceiling; Pole; Pendant; Corner; Rack | Ceiling |
| ONVIF | Yes — Profile S | Yes — profile level not stated |
| VMS Compatibility | GV-VMS; Milestone; third-party ONVIF RTSP | GV-VMS; ONVIF |
| Edge Analytics | Face detection | — |
| Dimensions | 200 × 170 × 257.5 mm (7.9 × 6.7 × 10.1") | — |
| Weight | 3.17 kg (6.99 lb) | — |
Frequently Asked Questions
Which should you choose: the MD87100-0D010 or the TDR885W-2F10?
The MD87100-0D010 is the stronger choice when installation geometry is variable, remote lens tuning post-install is required, or the VMS environment extends beyond Geovision's own platform. Its motorized varifocal 4–8mm lens (vs. the TDR885W-2F10's fixed 2.8mm) allows field-of-view adjustment without physical lens changes, its 1/2.5" sensor size and F/1.44 aperture are documented (neither is specified for the TDR885W-2F10), and its VMS compatibility list explicitly includes Milestone alongside ONVIF Profile S and GV-VMS. It also adds face detection analytics absent from the TDR885W-2F10's spec sheet. The TDR885W-2F10 merits consideration where a compact ceiling-mount footprint is the primary requirement and the deployment is a pure GV-VMS or generic ONVIF environment—though buyers should request full environmental, sensor, and compression specifications from the manufacturer before finalizing that choice.
Is the MD87100-0D010 or TDR885W-2F10 better for low light?
Based on available specifications, the MD87100-0D010 documents IR LEDs with a Day/Night auto IR-cut filter and a maximum lens aperture of F/1.44, while the TDR885W-2F10 lists only 'IR night vision' with no aperture, sensor size, or IR throw distance specified. Neither model provides a minimum illumination lux value in the supplied data, so a definitive low-light comparison cannot be made—request those figures from Geovision before specifying for low-light-critical applications.
Can the MD87100-0D010 or TDR885W-2F10 be used with Milestone XProtect?
The MD87100-0D010 is explicitly listed as compatible with Milestone in its provided specifications, in addition to ONVIF Profile S and Geovision GV-VMS. The TDR885W-2F10's VMS compatibility is documented only for ONVIF (no profile level stated) and Geovision GV-VMS; Milestone compatibility is not mentioned. Verify Milestone's device pack certification list for the TDR885W-2F10 before deploying it in a Milestone environment.
Which camera is easier to install in a tight ceiling space?
The TDR885W-2F10 is categorized as a 'Mini IP Dome' and is specified for ceiling mount, suggesting a more compact housing suited to low-profile or space-constrained installations. The MD87100-0D010 measures 200 × 170 × 257.5 mm and weighs 3.17 kg; dimensions and weight for the TDR885W-2F10 are not provided in the available specifications. For tight ceiling spaces, the mini dome form factor of the TDR885W-2F10 is the indicated choice, but confirm exact housing dimensions with Geovision.
