ACTi A88 vs Geovision FD34100-001U: Specification Comparison
This comparison covers two 3MP motorized-varifocal dome cameras targeting outdoor and commercial security installations: the ACTi A88 and the Geovision GV-FD34100 (84-FD34100-001U). Both ship as fixed dome housings with motorized zoom lenses, PoE power, and ONVIF compliance, making them credible cross-shop candidates for integrators specifying perimeter, lobby, or entrance coverage. The comparison evaluates sensor performance, environmental ratings, power options, and VMS/analytics fit based solely on published specifications.
In This Guide
How do the imaging specs compare?
The ACTi A88 uses a 1/2.8" sensor at 3MP (2065×1553 native) with a 2.8–8.0 mm motorized lens delivering 2.85× optical zoom. Minimum illumination is 0.003 lux in color at F1.6, dropping to 0 lux in B/W with IR LEDs active; IR range is rated at 30 m. WDR is specified as Advanced WDR at 120 dB. Maximum frame rate is 30 fps across all tested resolutions (2048×1536, 1920×1080, 1280×720).

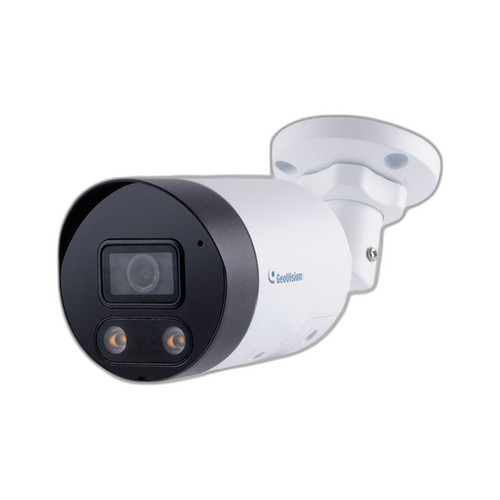

The Geovision GV-FD34100 is also rated at 3MP with a 3–9 mm motorized lens (approximately 3× zoom). Geovision lists WDR as 'WDR Pro' but does not publish a dB figure in the available spec data. Minimum illumination, IR range, sensor size, and maximum frame rate are not stated in the provided specifications. IR presence is confirmed, but no quantitative low-light or distance figures are available for direct comparison.
What about installation and environment?
The ACTi A88 carries IP66 and IK10 ratings, confirming protection against high-pressure water jets and resistance to 20-joule impacts — appropriate for exposed outdoor locations without additional enclosures. Operating temperature range is −20°C to 50°C (−4°F to 122°F). Power input accepts DC 12V or PoE Class 3 (IEEE 802.3af). Weight is 363 g (0.8 lb). Mounting options include wall, pole, pendant, and corner configurations. Physical mounting adjustment spans ±120° pan and 30°–90° tilt.
The Geovision GV-FD34100 specifies ceiling and wall mounting and lists PoE plus DC 12V and AC 24V as power options per its card bullet, offering more input-voltage flexibility. However, IP rating, IK rating, operating temperature range, and dimensions are not provided in the available specification data, making environmental suitability impossible to confirm from specs alone.
Which fits your VMS and analytics better?
The ACTi A88 is ONVIF-compliant to Profiles S, G, T, and Q, covering live streaming (S), recording (G), metadata/analytics (T), and device discovery (Q). On-board analytics include Video Motion Detection (VMD) and People Counting. Video compression supports H.265, H.264 (Baseline/Main/High), and MJPEG. The Ethernet port is 10/100 Base-T via RJ-45 pigtail. No audio or on-board storage specs are stated in the available data.
The Geovision GV-FD34100 lists ONVIF compliance without specifying which profiles are supported. No edge analytics, audio I/O, on-board storage, or compression codec details are present in the provided specifications. Geovision's native GV-VMS integration is implied by the brand ecosystem but cannot be confirmed from the specs supplied here.
Which should you choose: the A88 or the FD34100-001U?
Our take: The A88 is the stronger choice when verified environmental durability and quantified low-light performance are required. Three concrete spec deltas support this: the A88 publishes an IP66/IK10 rating suitable for unprotected outdoor use, while the GV-FD34100 lists no IP or IK rating in available data; the A88 specifies 120 dB Advanced WDR and 0.003 lux color sensitivity, while the GV-FD34100 provides no illumination figure; and the A88 supports ONVIF Profiles S, G, T, and Q plus on-board VMD and People Counting analytics, while the GV-FD34100 confirms only generic ONVIF compliance with no listed analytics. The GV-FD34100's AC 24V input option may benefit sites with legacy wiring infrastructure. Buyers who require confirmed weatherproofing, a published low-light floor, or ONVIF Profile T metadata support should specify the A88; those in controlled indoor environments with AC 24V infrastructure may find the GV-FD34100 worth further evaluation against its full published datasheet.
Side-by-Side Comparison
Spec-for-spec, from manufacturer data.
| Specification | ACTi A88 | Geovision FD34100-001U |
|---|---|---|
| Resolution | 3 MP (2065×1553) | 3 MP |
| Image Sensor | 1/2.8" | — |
| Lens / Focal Length | 2.8–8.0 mm motorized (2.85× zoom) | 3–9 mm motorized (~3× zoom) |
| Min Illumination | 0.003 lux color / 0 lux B/W (IR on) | — |
| IR Range | 30 m | — (IR present, range not stated) |
| WDR | Advanced WDR, 120 dB | WDR Pro (dB not stated) |
| Max Frame Rate | 30 fps @ 2048×1536 / 1080p / 720p | — |
| Video Compression | H.265 / H.264 (BP/Main/High) / MJPEG | — |
| IP Rating | IP66 | — |
| IK / Impact Rating | IK10 | — |
| Operating Temperature | −20°C to 50°C (−4°F to 122°F) | — |
| Power Input / PoE Class | DC 12V; PoE Class 3 (802.3af) | DC 12V; AC 24V; PoE (class not stated) |
| ONVIF Profiles | S, G, T, Q | ONVIF (profiles not specified) |
| Edge Analytics | VMD; People Counting | — |
| Mounting Options | Wall; Pole; Pendant; Corner | Ceiling; Wall |
| Weight | 363 g (0.8 lb) | — |
Frequently Asked Questions
Which should you choose: the A88 or the FD34100-001U?
The A88 is the stronger choice when verified environmental durability and quantified low-light performance are required. Three concrete spec deltas support this: the A88 publishes an IP66/IK10 rating suitable for unprotected outdoor use, while the GV-FD34100 lists no IP or IK rating in available data; the A88 specifies 120 dB Advanced WDR and 0.003 lux color sensitivity, while the GV-FD34100 provides no illumination figure; and the A88 supports ONVIF Profiles S, G, T, and Q plus on-board VMD and People Counting analytics, while the GV-FD34100 confirms only generic ONVIF compliance with no listed analytics. The GV-FD34100's AC 24V input option may benefit sites with legacy wiring infrastructure. Buyers who require confirmed weatherproofing, a published low-light floor, or ONVIF Profile T metadata support should specify the A88; those in controlled indoor environments with AC 24V infrastructure may find the GV-FD34100 worth further evaluation against its full published datasheet.
Is the A88 or GV-FD34100 better for low-light performance?
Based on available specs, the A88 is the only one of the two with published low-light figures: 0.003 lux in color and 0 lux in B/W with IR active, with a 30 m IR range. The GV-FD34100 confirms IR presence but does not publish a minimum illumination value or IR distance in the provided data, so a direct numeric comparison cannot be made.
Can either camera be installed outdoors without a separate enclosure?
The ACTi A88 is rated IP66 and IK10, confirming resistance to water jets and 20-joule impacts — suitable for direct outdoor mounting. The Geovision GV-FD34100 does not list an IP or IK rating in the available specifications, so outdoor suitability without additional protection cannot be confirmed from specs alone.
Which camera offers broader VMS compatibility?
The A88 specifies ONVIF Profiles S, G, T, and Q, which covers the widest range of NVR and VMS interoperability including metadata and analytics streams. The GV-FD34100 lists ONVIF compliance without identifying specific profiles, so integration depth beyond basic streaming should be verified with the VMS vendor before deployment.
