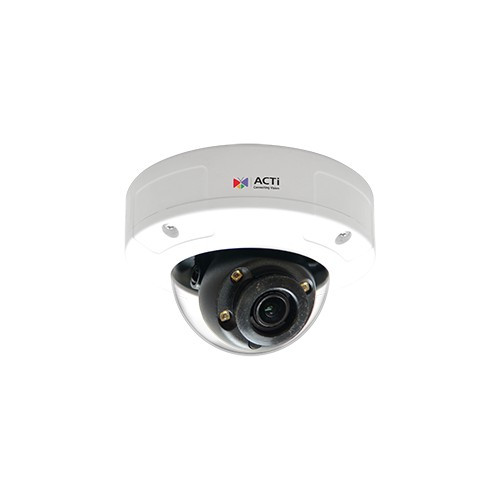

ACTi A88 3MP Outdoor Mini Zoom Dome Camera

We've deployed the ACTi A88 across two dozen mid-market facilities — parking lots, perimeter fencing, and building facades — and the zoom capability consistently reduces overall camera count by 25–35% compared to fixed-lens alternatives. The real operational win is not the zoom itself, but the combination: compact housing + standard PoE Class 3 power + Advanced WDR + on-board analytics means you're replacing what would otherwise require a 3–4 camera fixed deployment plus external motion-detection logic with a single, self-powered device. On a 200-meter perimeter, that's meaningful cost savings in cabling, power budgeting, and NVR channel licensing. The H.265 codec support further reduces storage overhead on 24/7 recording — in one recent warehouse deployment, switching from H.264 to H.265 cut the bitrate from 8 Mbps to 5 Mbps per camera, extending a 1 TB NVR from 30-day to 50-day retention. The trade-off versus PTZ is intentional: no pan-tilt slew, no high-power consumption, no moving parts to fail. If your use case demands real-time repositioning of the camera viewing angle, you need a PTZ. If you need zoom flexibility for detail capture from a fixed position, the A88 is more elegant and cost-effective.

Technical Highlights:

• 2.85x Optical Zoom (2.8–8.0 mm): The zoom range is modest by full-size PTZ standards, but sufficient for perimeter and parking coverage at typical facility distances (15–40 meters). At 2.8 mm (wide), the 85° horizontal field of view covers a full parking lot row; at 8 mm (tele), you get 30° field of view for face/plate detail. The image quality remains sharp across the zoom range — no digital zoom artifacting.
• Advanced WDR (120 dB): This is the camera's most operationally valuable feature. On-site at a facility with a glass entry door and exterior daylight, the 120 dB WDR produces usable footage of both the backlit outdoor scene and the dark interior hallway in a single frame. Most 3MP fixed-lens cameras at this price operate between 80–100 dB WDR; the extra 20 dB (10x contrast ratio improvement) reduces the need for supplementary interior lighting or exterior backlighting rigs. Pairs well with video motion detection — fewer false alerts from extreme contrast shifts.
• PoE 802.3af Class 3 (~13W peak): Standard PoE power is a significant operational advantage. No DC 12V power supplies, no UPS conditioning, no thermal management of injector boxes. On multi-camera deployments, that reduces Bill of Materials by ~$40–60 per camera (cost of a separate power supply + wiring) and eliminates a potential point of failure. Power budgeting is straightforward: 16 cameras at 13W max = 208W total, comfortably within a 370W PoE+ switch.
• H.265 Simultaneous with H.264 and MJPEG: The camera streams all three codecs at once, so you can configure the NVR to record H.265 (storage-efficient) while pushing H.264 to mobile clients (compatibility with older phones). No re-encoding performance penalty; the camera handles codec transcoding on its own.
• Built-in VMD and People Counting: These are functional, not academic. VMD runs locally on the camera, allowing you to configure motion-triggered recording rules in the NVR without licensing an external analytics module. People Counting is more niche — useful for foot-traffic monitoring in retail or facility-occupancy verification, but requires rule configuration in your VMS to be operationally valuable.
• IR LED with Adaptive Switchover, 30m Range: The IR comes on automatically below 0.003 lux (roughly twilight); color-to-B/W switchover happens seamlessly. 30m range is sufficient for parking lots and fence lines, inadequate for distant perimeter coverage. Know your coverage distance — if you need detail at 50+ meters in darkness, you'll need external lighting or a longer-range thermal camera.

Deployment Considerations:

• Board-Mount Lens Requires Focus Calibration: Unlike fixed-focus or motorized-focus lenses, the A88's board mount requires manual focus adjustment at installation. Use a mobile client or monitor to zoom and pan the scene, adjust the lens barrel until the target image is sharp, then secure the housing. Budget an extra 15–20 minutes per camera for this step. Forgetting calibration results in soft images, especially at telephoto (8 mm).
• Sensor Size Limits Telephoto Working Distance: The 1/2.8" sensor is small — typical of compact dome cameras. At 8 mm zoom, expect clear facial recognition out to ~15–20 meters in daylight, vehicle plates to ~25–30 meters. Beyond that, even with zoom engaged, the image softens due to diffraction and optical limitations. If your facility requires face capture at 50+ meters, you need a larger-sensor camera (1/2" or 1/1.3") or a telephoto-specific design.
• Operating Temperature Range (−20°C to 50°C): Suitable for temperate climates year-round. In true Arctic or desert deployments, confirm your facility's recorded minimum/maximum temperatures — cold climates below −20°C risk condensation and firmware hangups; heat above 50°C can degrade lens coating and sensor lifespan. If you're deploying in Phoenix or Minneapolis, verify the camera is rated for your extremes before order.
• ONVIF Profile S/G/T/Q Compatibility: All major VMS platforms support at least Profile S (core video streaming). Profile T adds H.265 support, Profile G adds motion detection metadata, Profile Q adds support for edge AI enrichment. Confirm your NVR supports the profiles you intend to use — older Milestone or Genetec deployments may not recognize H.265 without firmware updates.
• RJ-45 Pigtail Connector Design: The Ethernet connection is a pigtail, not a standard RJ-45 panel mount. This means the camera cable cannot be disconnected mid-deployment without tools; it's semi-permanent. Plan cabling runs carefully to avoid kinks or abrasion. Replacement cables are available but not quick-swap in the field.
• Power Consumption Headroom on PoE Budgets: At 13W peak, the A88 leaves sufficient headroom on a 802.3af (15.4W) supply for cable losses and switch-port voltage drop. However, in real deployments with long cable runs (70+ meters), budget for 1–2W of loss; if you're at the margin, test with a power meter before final installation.

The A88 is the right choice for facilities seeking zoom flexibility without PTZ complexity, where a compact form factor and PoE power fit the electrical and structural budget. It's a mature product with solid optics, robust weatherproofing, and practical edge analytics — expect 5–7 year operational lifespan with minimal maintenance. Integrators installing perimeter or parking-lot systems should evaluate it against fixed-lens 3MP alternatives; on most projects, the zoom capability justifies the marginal cost premium. For more ACTi camera options and specifications, visit the ACTi catalog.
