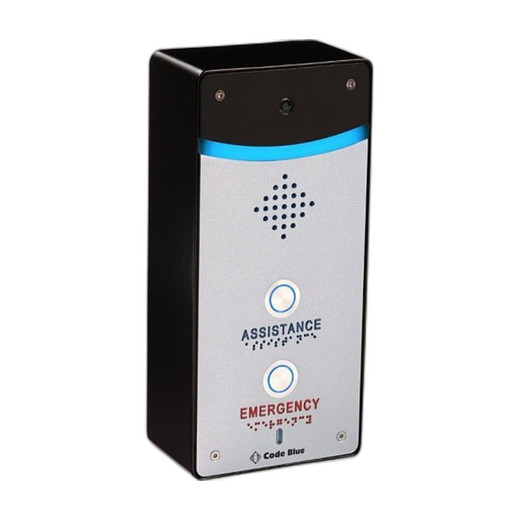

Code Blue CBCE00014 Help Point with Camera
Overview
The Code Blue CBCE00014 is a help point station that integrates a 1080p IP camera, contact closure inputs/outputs, and piezoelectric emergency buttons into a single wall- or pole-mounted enclosure. Designed for campus safety, parking structures, transit stations, and industrial facilities, it pairs two-way voice communication with automatic video capture at emergency activation — so staff can verify incidents in real time and retain visual evidence tied to the call event. The device operates across -40°C to 70°C, making it viable in extreme climates where temperature-sensitive electronics typically fail.
Compatibility
The CBCE00014 functions as a networked surveillance node within standard IP video management systems that support ONVIF-compliant camera streams (H.264 / MJPEG). The three Ethernet ports support daisy-chaining or independent network connections. Three contact closure inputs and three outputs allow integration with existing door locks, alarm panels, and relay-driven security systems — no specialized gateway required. The device draws under 13W via PoE 802.3af, so it will not strain standard PoE switch power budgets on typical multi-device deployments. Confirm your VMS platform supports MJPEG or H.264 streams; some legacy systems may require codec conversion or edge transcoding.
Installation Notes
Mount dimensions vary between surface (4.75″ W × 10.25″ H × 2.875″ D) and flush (4.5″ W × 10″ H × 3.125″ D) installations. Conformal coating on the PCB provides moisture resistance for semi-outdoor enclosures, but the device is not sealed for direct water spray — verify local IP rating expectations before outdoor pole mounting. The piezoelectric buttons are sealed against mechanical stiction and are ADA-compliant with Braille labeling. Wiring: terminate Ethernet via standard RJ-45; provide 12–48 VDC to contact closure inputs if you intend to trigger external devices (e.g., door strike, siren relay). No special tools beyond a standard crimper and panel saw are required for typical installations.
What's in the Box
- 1x Code Blue CBCE00014 Help Point enclosure with integrated camera module
- Mounting hardware (surface and flush bracket options)
- RJ-45 connector (weatherproof)
- Installation guide and wiring diagram
