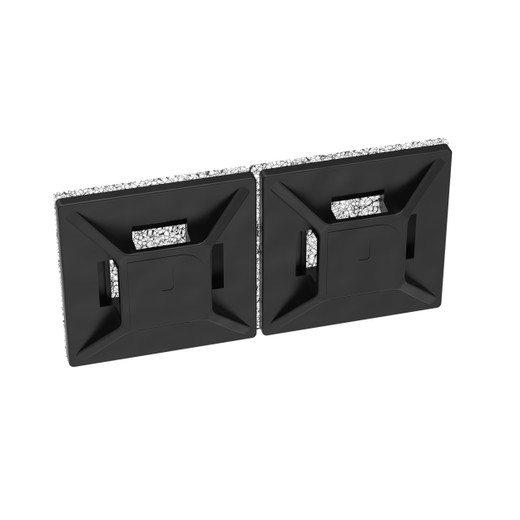

Panduit ABMM-AV-C0 Adhesive-Backed Cable Tie Mount

Low-profile cable tie mount engineered for secure wire routing in racks, cabinets, and finished spaces where drilling isn't an option. The ABMM-AV-C0 combines a compact 0.75" square base with a 0.21" height profile, delivering permanent adhesive-backed mounting for miniature, intermediate, and standard cross-section cable ties. Black ABS construction resists UV degradation and provides the mechanical strength required for heavy bundle loads in datacenter, security, and AV installations. cULus listed to Type 1, 11 standards (E136577) for use in plenum and electrical enclosures. Ships in 100-piece packages; bulk cartons of 500 available for multi-site deployments.

Key Features

• 0.75" × 0.75" base footprint fits tight rack channels and cable trays without obstructing adjacent runs
• 0.21" (5.2mm) ultra-low profile clears <0.25" overhead clearances in densely populated enclosures
• Black ABS polymer resists impact, solvents, and UV exposure across -40°F to +185°F operating range
• Arrowhead design accepts Panduit miniature (0.09" wide), intermediate (0.14" wide), and standard (0.19" wide) cable ties without adapters
• Acrylic foam adhesive backing bonds permanently to powder-coat, painted steel, aluminum, and textured ABS surfaces in rack/cabinet environments
• cULus 62275 Type 1, 11 listing qualifies mount for use in plenum air-handling spaces and electrical equipment per NEC Article 300
• RoHS compliant for integration into EU/UK datacenter and government installations

Installation & Compatibility: The ABMM-AV-C0's adhesive-backed design eliminates the need for drilling, screws, or rivets—critical when working in finished server rooms, network closets, or customer-facing AV spaces where surface damage isn't acceptable. The 0.75" square base provides 0.56 in² of contact area, distributing shear loads across a footprint large enough to handle 50+ lb bundle weights when paired with appropriate cable ties. The center arrowhead slot is dimensioned to accept Panduit's miniature ties (PLT series, 0.09" wide for low-voltage/fiber bundles), intermediate ties (PRT series, 0.14" wide for Cat6/coax runs), and standard ties (PLT1M/PLT2 series, 0.19" wide for heavy power/trunk cables). This multi-size compatibility reduces inventory complexity—one mount SKU covers the full range of cable management scenarios from finger-duct fiber to 4/0 AWG feeder runs.

Material & Environmental Performance: Black ABS polymer construction delivers the impact resistance and dimensional stability required in vibration-prone rack environments. Unlike nylon mounts that can become brittle under sustained UV exposure, ABS maintains tensile strength across datacenter temperature extremes (-40°F to +185°F) and resists degradation from isopropyl alcohol, cable lubricants, and cleaning solvents used during maintenance. The black pigment prevents discoloration and maintains a professional appearance in open-frame racks or glass-door cabinets where cable routing is visible. The acrylic foam adhesive layer bonds permanently to powder-coated rack rails, painted drywall, textured enclosure interiors, and aluminum chassis without pre-priming—typical bond strength exceeds 15 lbs/in² after 72-hour cure. Surface prep requires only isopropyl wipe-down; no primers or activators needed.

Code Compliance & Standards: cULus listing to 62275 Type 1, 11 (file E136577) qualifies the ABMM-AV-C0 for installation in plenum air-handling spaces per NEC Article 300.22(C) and for use within electrical enclosures per UL 508A. This certification is critical for datacenter raised-floor plenum routing, above-ceiling security camera cable runs, and in-cabinet wire management where non-listed components can fail inspection. RoHS compliance (lead, mercury, cadmium, hexavalent chromium limits) meets EU Directive 2011/65/EU and UK SI 2012/3032 requirements for government, healthcare, and international datacenter projects. The 100-piece package (bulk carton quantity: 500) supports both single-rack installations and campus-wide cable plant buildouts with SKU consolidation that simplifies procurement and reduces per-mount cost on high-volume projects.
