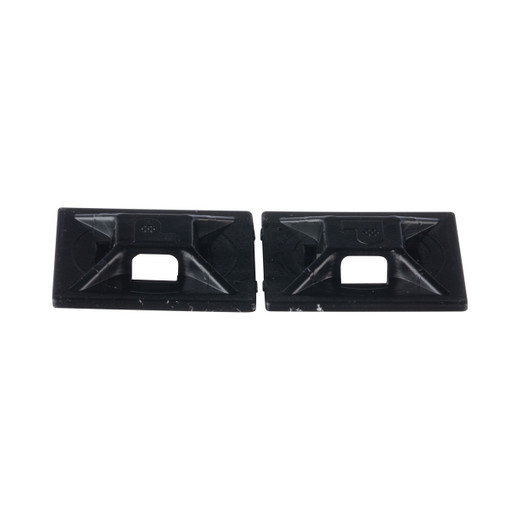

Panduit ABMM-AT-C0 4-Way Adhesive Cable Tie Mount

Panduit ABMM-AT-C0 Adhesive Cable Tie Mount Base

The Panduit ABMM-AT-C0 is a 4-way adhesive cable tie mount base engineered for permanent outdoor installations where drilling isn't practical. Built from UV-stabilized ABS plastic with acrylic adhesive backing, this 19.1mm × 19.1mm square mount accepts miniature and intermediate cross-section ties from any direction. Package of 100 mounts supplied in dual-mount strips for rapid deployment across conduit runs, cable trays, and equipment enclosures in high-temperature exterior environments.

Key Features

• 4-way tie entry: accepts cable ties from all four sides for flexible routing in congested spaces
• UV-stabilized ABS construction: black material resists degradation under direct sunlight in outdoor installations
• Acrylic adhesive backing: permanent bond to metal, painted surfaces, and textured enclosures without mechanical fasteners
• 19.1mm × 19.1mm footprint: compact profile fits between knockouts and on narrow surfaces where standard mounts won't clear
• 4.6mm height: low-profile design maintains clearance in shallow wireway and behind-panel applications
• 100-count packaging in dual-mount strips: pre-positioned pairs speed installation during large cable-management projects
• UL recognized (E136577), CE compliant, RoHS compliant: meets NEC/CEC wire-support requirements and environmental directives

Technical Construction & Installation Characteristics

The ABMM-AT-C0 uses weather-resistant ABS plastic formulated for high-temperature outdoor service—critical for roof-mounted camera runs, parking-structure network cables, and perimeter intrusion-detection wiring exposed to solar heat gain. The UV stabilizer prevents embrittlement and color fade that causes standard mounts to crack after 18–24 months of sun exposure. The acrylic adhesive layer creates a permanent mechanical bond to powder-coated steel (common on telecom cabinets and outdoor IDF enclosures), aluminum cable tray, and the textured ABS of weatherproof junction boxes. Unlike foam-backed mounts that fail when moisture wicks under the pad, the solid acrylic layer maintains full-surface contact even in freeze-thaw cycling.

The 4-way entry design eliminates orientation errors during installation—installers don't waste time rotating mounts to align the tie slot with the cable path. In dense wireway applications (data-center hot-aisle containment, broadcast equipment racks, multi-tenant telecom closets), the ability to insert ties from any side means you can bundle cables perpendicular to the mount without crossing over adjacent runs. The 19.1mm square footprint fits between standard 1-inch knockout spacing on NEMA enclosures and clears the narrow lip on DIN rail mounts where 1-inch round bases interfere. At 4.6mm tall, the mount doesn't exceed the depth available behind shallow network switches or PoE injectors mounted flush to backboards.

Deployment Context & Compatibility

Security integrators deploy these mounts on PTZ camera back-boxes where drilling into the weatherproof housing would void the IP66 rating—adhesive mounts let you anchor homerun cables to the exterior surface without creating leak paths. Datacenter installers use them inside vertical cable managers and overhead ladder rack where vibration from HVAC equipment would work screws loose over time; the acrylic bond stays fixed. AV installers rely on them for securing speaker wire and HDMI extension cables along architectural surfaces (stone facades, polished concrete, glass partitions) where visible fasteners violate design standards.

The ABMM-AT-C0 accepts Panduit's miniature-width ties (0.09" – 0.14" wide, typically 4" – 8" long for 1–5 cable bundles) and intermediate-width ties (0.19" – 0.25" wide, 8" – 14" long for 6–15 cable bundles). Installers pair these mounts with PLT series ties for indoor plenum runs (UL 2043 flame-rated) and Pan-Ty weather-resistant ties for exterior installations. The mount's 4-way entry accommodates both parallel and perpendicular tie insertion—useful when transitioning cables from horizontal wireway to vertical drop or when creating branch points in a cable tree.

Surface preparation determines bond strength: clean the mounting surface with isopropyl alcohol to remove oils and dust, apply the mount with firm pressure across the entire footprint, and allow 24 hours of cure time before loading with cables. On textured surfaces (powder coat, stippled plastic), the acrylic adhesive conforms to the profile better than rubber-backed mounts that only contact the high points. The dual-mount strips let you pre-position two mounts at exact spacing (useful for creating tie points every 12 inches per NEC 300.11 support requirements) before peeling the release liner.

Standards Compliance & Application Fit

UL recognition under file E136577 qualifies the ABMM-AT-C0 as a cable-support device for NEC Article 300 installations—important when AHJs require listed components for commercial occupancies. CE compliance covers the Low Voltage Directive for EU installations, and RoHS compliance eliminates lead/cadmium concerns in recycling or disposal. The black UV-stabilized color maintains a professional appearance across the 10–15 year lifespan typical of outdoor security camera installations—no yellowing or chalking that makes gray or beige mounts look neglected after three years in the sun. For integrators managing long cable runs across equipment racks, utility poles, or building exteriors where drilling creates water intrusion risk or violates structural warranties, the ABMM-AT-C0 delivers code-compliant cable support without mechanical fasteners.
