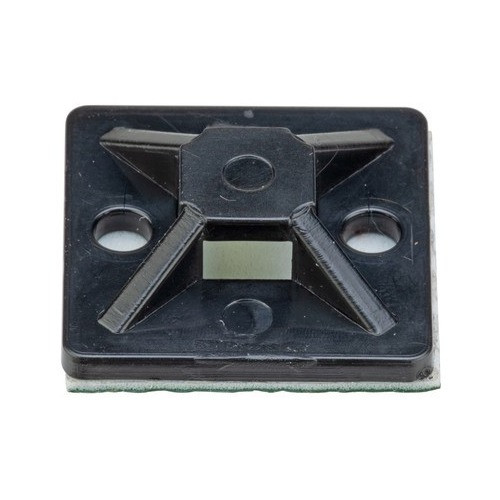

Panduit SMP12A-C0 StrongHold Adhesive-Backed Cable Tie Mount

The Panduit SMP12A-C0 is a 20mm square adhesive-backed cable tie mount engineered for fast, no-drill wire and cable routing in commercial security, data center, and telecommunications installations. Built from flame-retardant polyamide 6.6 with UL 94 V-2 classification, this StrongHold mount delivers mechanical strength and thermal resistance for demanding indoor and outdoor environments. The rubber-adhesive backing bonds to clean, dry surfaces—metal enclosures, wall plates, conduit, and panel interiors—eliminating the time and labor cost of drilling, tapping, or using mechanical fasteners. Sold in 100-piece packages (1,000 per carton), the SMP12A-C0 is compatible with Panduit miniature and intermediate-diameter cable ties, making it a versatile anchor point for low-voltage cabling, fiber runs, and bundled wire harnesses.

Key Features

Adhesive-backed mount for tool-free installation on metal, plastic, and painted surfaces

20mm × 20mm footprint with 6.1mm profile fits tight spaces inside enclosures and j-boxes

Polyamide 6.6 construction with UL 94 V-2 flame rating for fire-code compliance

Accepts miniature and intermediate cable ties for multi-diameter bundling

Black finish blends with security equipment, rack interiors, and conduit

UL 62275 listed and RoHS compliant for specification-grade projects

100-piece package supports multi-drop installations and service truck stock

Commercial security integrators installing access control panels, PoE camera runs, and intrusion systems face a recurring challenge: securing wire bundles inside shallow back boxes and on vertical surfaces without creating new penetrations that compromise fire ratings or void enclosure IP certifications. The SMP12A-C0 solves this by providing a reusable tie-down point that adheres in seconds. Its rubber-adhesive formulation maintains bond strength across temperature swings (-40°C to +85°C typical for PA 6.6) and resists the peel forces generated by cable tension and vibration. The 20mm square base distributes load evenly, preventing adhesive creep under sustained pull. Installers working in retrofit scenarios—where drilling into existing walls or cabinets risks hitting hidden conduit or voiding warranties—gain a compliant, reversible mounting method that leaves no permanent marks. The low 6.1mm height clears shallow enclosures and allows closure covers to seat fully, a critical detail in UL/CUL-listed panel installations where door-gasket compression affects certification.

The StrongHold line's polyamide 6.6 base material outperforms standard nylon and polypropylene mounts in rigidity and UV resistance, making the SMP12A-C0 suitable for outdoor camera junction boxes, rooftop equipment enclosures, and building-perimeter conduit runs where sunlight exposure and thermal cycling degrade lesser plastics. The UL 94 V-2 flame classification ensures the mount self-extinguishes if exposed to ignition sources, a requirement for installations inside plenum-rated ceilings, electrical rooms, and data centers governed by NFPA 70 (NEC) and NFPA 75. When paired with Panduit's PLT series cable ties (miniature: PLT1M, PLT1.5M; intermediate: PLT2S, PLT3S), the SMP12A-C0 creates a modular wire-management system that accommodates evolving cable layouts without re-engineering mounting schemes. The competitor part reference (MPNY-750-0) indicates cross-compatibility with legacy HellermannTyton mount patterns, simplifying spec-sheet substitutions on projects with existing tie-mount standards.

UL 62275 listing covers the mount's mechanical and flammability performance under the standard for cable management products, and RoHS compliance ensures lead-free construction for projects requiring environmental certifications (LEED, Green Globes). The 100-piece package quantity matches the scale of typical multi-camera or multi-door installations—mount density of 1 per 6–8 feet of cable run yields 50–80 linear feet of managed routing per package—while the 1,000-piece carton stocking option supports high-volume integrators and distributed service fleets. For datacenter and structured-cabling contractors routing fiber trunk lines, Cat6A bundles, and power distribution inside ladder rack and overhead wire tray, the SMP12A-C0 provides a zero-penetration alternative to rivets and spring-clips that preserves rack warranty and simplifies future cable adds or moves.
