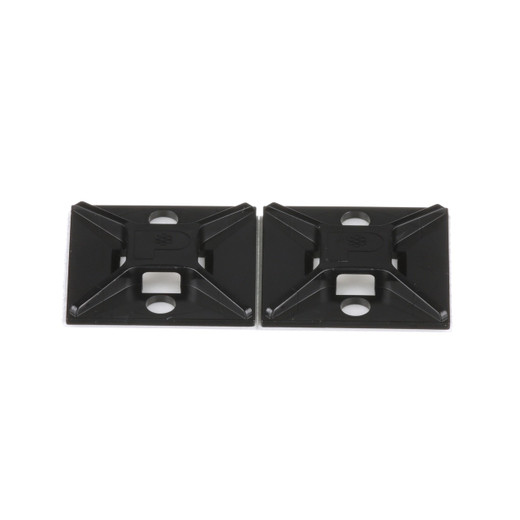

Panduit ABM2S-AT-C0 4-Way Adhesive Cable Tie Mount Base

The Panduit ABM2S-AT-C0 is a professional-grade adhesive cable tie mount designed for permanent installations where drilling isn't an option or where surface integrity must be preserved. This 4-way design accepts ties from any direction, giving you routing flexibility in tight enclosures, behind equipment racks, or along cable pathways where traditional screw-mount bases won't fit. The weather-resistant ABS construction and acrylic adhesive backing make it suitable for both indoor and exposed outdoor runs, while the compact 1" × 1" footprint provides a stable anchor point without consuming excessive panel or wall space. Sold in packages of 100, it's engineered for integrators running structured cabling, security camera drops, or industrial control wiring where clean, code-compliant cable management is non-negotiable.

Key Features

4-way design routes miniature, intermediate, and standard cross-section cable ties from any direction

Weather-resistant ABS material with UV stabilization for long-term outdoor exposure

Acrylic adhesive backing bonds permanently to metal, plastic, and painted surfaces

Compact 1" × 1" (25.4 × 25.4 mm) footprint with 0.2" (5.1 mm) height profile

Black finish blends into enclosures, cable trays, and behind-rack installations

CE conformity, UL recognized (E136577), and RoHS compliant for commercial and industrial use

Packaged in strips of 2 for fast, sequential placement along cable runs

Panduit constructs the ABM2S-AT-C0 from ABS polymer specifically formulated to resist UV degradation and weathering, making it a reliable choice for camera runs exposed to sunlight, outdoor junction boxes, or rooftop equipment installations. The acrylic adhesive delivers high initial tack and builds bond strength over 72 hours, reaching full holding capacity on clean, dry surfaces. Unlike foam-backed mounts that can compress or delaminate under load, the solid ABS base maintains its profile and anchoring geometry even when bundled cables exert lateral pull. The 4-way aperture design accepts ties up to standard cross-section (0.19" width), so you can secure everything from low-voltage data bundles to multi-conductor power feeds with a single mount style. The 1" square footprint provides enough surface area to distribute peel forces across the adhesive bond, while the low 5.1 mm height keeps the mount from interfering with tight clearances in shallow backboxes or slim equipment enclosures.

Use the ABM2S-AT-C0 anywhere drilling would compromise a sealed enclosure, void a finish warranty, or risk hitting hidden utilities behind drywall. Typical deployments include securing PoE camera drops along eaves and soffits, anchoring bundled fiber runs in plenum spaces where screw penetrations violate fire codes, organizing control wiring inside UL-listed panels where additional holes break the listing, and routing cables along painted architectural elements where installers can't mar the surface. The adhesive works on powder-coated metal, painted steel, ABS enclosures, and smooth concrete or CMU block. For best results, clean the surface with isopropyl alcohol, peel the backing, press the mount firmly for 10 seconds, then allow 24 hours before loading with cable ties. The strips-of-2 packaging lets you walk a cable path, placing mounts at regular intervals without constantly opening individual units—common spacing is every 12–18 inches for horizontal runs and every 24 inches for vertical risers, per NEC Article 300 support requirements.

The ABM2S-AT-C0 carries UL recognition under file number E136577 and meets RoHS substance restrictions, making it suitable for installations governed by NEC, IBC, and environmental compliance mandates. The black ABS finish won't discolor or chalk under prolonged UV exposure, maintaining a professional appearance over the life of the installation. Panduit backs this product with their manufacturer warranty covering defects in material and workmanship. For integrators managing multi-building deployments or maintaining consistent cable management standards across distributed sites, the ABM2S-AT-C0 offers a drill-free anchoring solution that doesn't compromise on holding strength, environmental durability, or code compliance.
