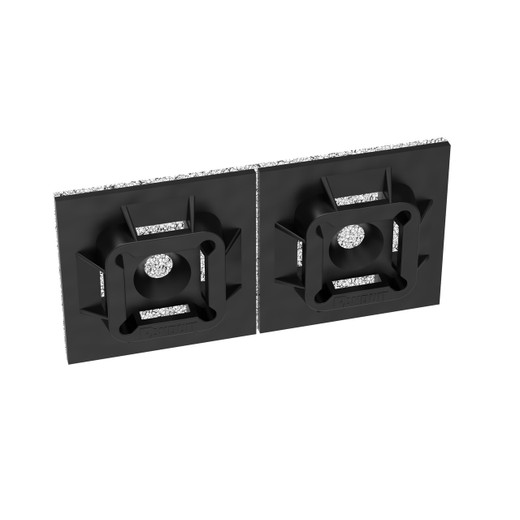

Panduit ABM100-AV-C0 Cable Tie Mount

The Panduit ABM100-AV-C0 is a 1-inch square adhesive-backed cable tie mount engineered for permanent wire-bundle anchoring in security installations, data centers, and structured cabling environments. Molded from flame-retardant nylon 6.6, this low-profile mount (0.23" height) accepts miniature, intermediate, and standard cross-section cable ties, giving installers flexibility across Panduit's tie lineup without stocking multiple mount types. The adhesive backing bonds to clean metal, plastic, and painted surfaces—eliminating the drill-and-screw step in cabinets, equipment racks, and above-ceiling pathways where mechanical fastening isn't practical.

Key Features

1" × 1" × 0.23" nylon 6.6 mount accepts miniature, intermediate, and standard ties

Adhesive backing for tool-free installation on metal, plastic, and painted surfaces

Black finish blends with rack interiors and cable pathways

cULus 62275 Type 1, 11 listed and RoHS compliant

100-piece package with 1,000-piece carton available for project staging

Wire-management anchoring in commercial security and IT installations often bottlenecks at the mount step: drilling sheet metal in live racks risks metal shavings in active equipment, and mechanical fasteners add 2–3 minutes per anchor point when you're routing hundreds of cables. The ABM100-AV-C0's adhesive bond eliminates that friction—clean the surface with isopropyl alcohol, press the mount, wait 24 hours for full cure, and the nylon base holds through thermal cycling and vibration. The 1-inch square footprint is large enough to spread peel stress across the adhesive layer but compact enough to fit between DIN rails, patch-panel mounting ears, and equipment chassis ribs where space is measured in fractions of an inch. The 0.23-inch height keeps the tie head close to the mounting surface, reducing the lever arm that causes cables to pull the bundle off-axis under their own weight in vertical runs.

The mount's compatibility across three cable-tie cross-sections means a single SKU covers typical security-install wire sizes: miniature ties for low-voltage sensor loops and individual patch cords, intermediate ties for Cat6A bundles and 18 AWG power whips, and standard ties for trunk runs and multi-conductor composite cables. This cross-compatibility reduces SKU proliferation in van stock and eliminates the "wrong mount for the tie on hand" problem during after-hours service calls. The nylon 6.6 material resists UV degradation, petrochemical exposure, and the alkaline cleaners used in data-center hot-aisle containment, so mounts installed during initial construction remain serviceable through multiple cable-refresh cycles. The black finish disappears against powder-coated rack rails and black cable jackets, maintaining the clean aesthetic that end-clients expect in visible IDF and equipment-room installations.

Each ABM100-AV-C0 ships cULus 62275 Type 1, 11 listed under file E136577, meeting the wire-management-component requirements for installations governed by NFPA 70 (NEC) and Canadian Electrical Code Part I. The mount is RoHS compliant, satisfying procurement requirements for projects with environmental-compliance mandates or LEED documentation workflows. The 100-piece package aligns with single-rack and small-room deployments, while the 1,000-piece carton supports multi-floor rollouts and staging for integrators managing sequential phases across a campus build.
