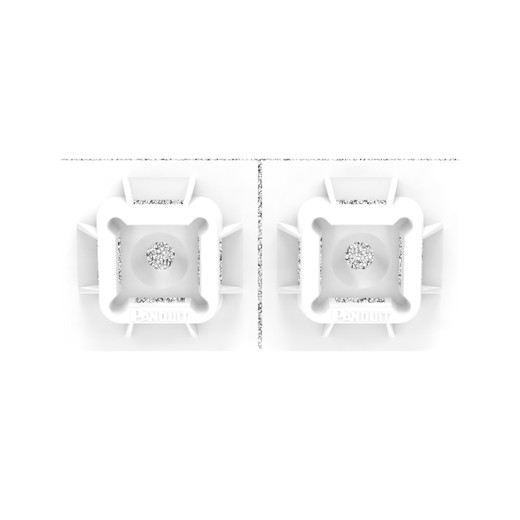

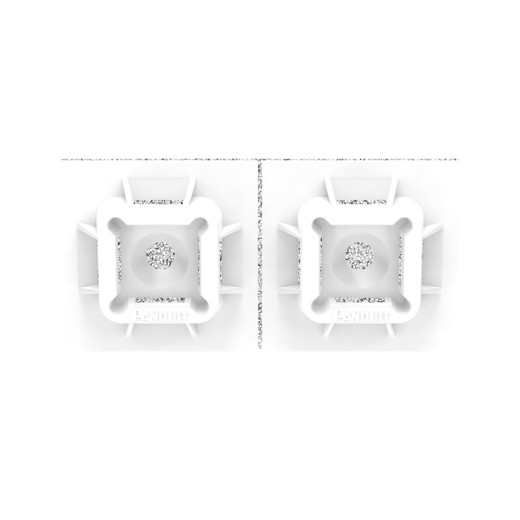

Panduit ABM100-AV-C 1" Adhesive Cable Tie Mount

Panduit ABM100-AV-C Adhesive-Backed Cable Tie Mount

The Panduit ABM100-AV-C is a 1-inch square adhesive-backed cable tie mount engineered for permanent wire-routing installations in commercial security, IT infrastructure, and AV environments. Molded from flame-retardant Nylon 6.6 with an acrylic adhesive backing, this mount provides a secure anchor point for miniature, intermediate, and standard cross-section cable ties on non-porous surfaces—racks, conduit, equipment enclosures, and behind-panel runs where drilling is impractical or prohibited. Each mount measures 1" × 1" × 0.23" (25.4mm × 25.4mm × 5.7mm) and ships in contractor-grade 100-piece packs, with 1,000 per carton for volume jobs.

Key Features

• Nylon 6.6 construction with acrylic adhesive backing for permanent bonding to metal, plastic, and painted surfaces
• 1-inch square footprint (25.4mm × 25.4mm) with 0.23-inch (5.7mm) profile—low-profile design for tight spaces
• Compatible with Panduit miniature, intermediate, and standard cross-section cable ties (accepts ties up to 0.19" wide)
• cULus Listed to 62275 Type 1 and Type 11 standards (File E136577) for fire-rated and plenum applications
• RoHS compliant—meets lead-free and hazardous-substance restrictions for EU and California installations
• White finish blends with standard rack and enclosure interiors—less visible than black mounts in customer-facing spaces
• 100-piece pack (1,000 per carton) for inventory control and jobsite distribution

Cable tie mounts solve a recurring problem in security and IT installations: how to route and secure bundles when you can't drill into the surface. Data centers prohibit penetrations in raised-floor tiles. Surveillance installs often run behind drywall or above drop ceilings where fastening to studs is impractical. AV integrators need to anchor cables inside metal equipment racks without tapping threads or using rivets. The ABM100-AV-C's acrylic adhesive bonds to clean, non-porous surfaces in seconds—peel the liner, press firmly for 10 seconds, wait 24 hours for full cure. Once cured, the mount withstands the pull force of tightened cable ties without delaminating or rotating, even in 70°C plenum environments.

The 1" × 1" footprint strikes a balance between holding strength and discretion. Larger mounts waste space on small bundles; smaller mounts lack the adhesive contact area to resist shear forces when a bundle is pulled taut. Panduit's 5.7mm height keeps the mount low enough to fit under rack cable managers and inside shallow wireways, while the raised tie slot prevents ties from sliding off during installation. The white Nylon 6.6 material is flame-retardant per UL 94 V-2—critical for plenum-rated spaces where cable-management hardware must meet the same fire standards as the cables themselves.

Compatibility with miniature, intermediate, and standard cross-section ties (up to 0.19" wide) covers the majority of Panduit's tie lineup—from 4" miniatures for fiber patch cords to 14" standard ties for 2" Cat6A bundles. The mount's slot geometry prevents narrower ties from pulling through while still accommodating the thicker cross-sections used in heavy-duty industrial and outdoor enclosures. This versatility reduces SKU sprawl: one mount part number handles everything from surveillance camera pigtails to NVR power-and-data bundles.

cULus 62275 Type 1 and Type 11 certification (File E136577) qualifies the ABM100-AV-C for fire-rated walls, plenum air-handling spaces, and other code-restricted zones where inspectors red-tag non-listed cable-management hardware. Type 1 covers general-use cable ties and mounts; Type 11 adds plenum rating for HVAC return-air spaces above drop ceilings—common in commercial security installs where cameras and access-control wiring share the plenum with building HVAC. RoHS compliance ensures the mount meets lead-free and hazardous-substance limits for projects in California (Prop 65) and EU member states, avoiding procurement delays on international or government jobs.
