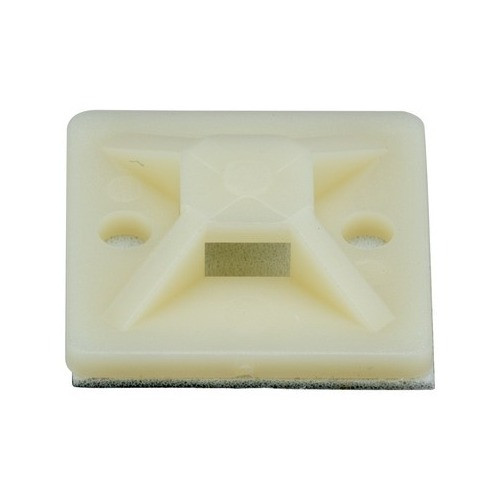

Panduit SMP16A-C StrongHold™ Adhesive Cable Tie Mount

The Panduit SMP16A-C is a 1-inch square adhesive-backed cable tie mount engineered for permanent wire routing in commercial security, datacenter, and industrial control installations. Built from flame-retardant polyamide 6.6 with UL 94 V-2 classification, this StrongHold™ mount delivers the tensile strength and thermal stability required for high-density cable runs in plenum-rated spaces, equipment racks, and outdoor enclosures where ambient temperatures fluctuate between -40°F and +185°F.

Key Features

25mm × 25mm mounting base with rubber adhesive backing for tool-free installation on smooth surfaces

Polyamide 6.6 construction rated UL 94 V-2 for flame resistance in electrical environments

Compatible with Panduit miniature, intermediate, and standard-width cable ties (0.09"–0.27" widths)

Natural color finish blends with wire insulation and structured cabling systems

7.5mm profile height minimizes standoff from mounting surface

UL62275 certified and RoHS compliant for code-driven installations

100-pack quantity supports typical rack or room-level deployments

Commercial integrators face a recurring challenge when routing security camera home-runs, PoE drops, and alarm circuits through finished spaces where drilling mounting holes risks structural damage or lease violations. The SMP16A-C addresses this by combining a rubber-based adhesive backing strong enough for vertical runs with a PA 6.6 base that won't crack under the stress of repeated cable adjustments or thermal cycling. The 1-inch square footprint provides stable four-point contact on painted drywall, powder-coated steel, polished aluminum, and textured ABS surfaces common in commercial IT closets and plenum ceilings.

The polyamide 6.6 formulation delivers a balance of mechanical rigidity and chemical resistance critical in surveillance and access control deployments. Unlike lower-grade nylon blends that embrittle when exposed to UV or cleaning solvents, this UL 94 V-2 rated material maintains dimensional stability across its full operating range and resists common installation-site contaminants like isopropyl alcohol, cable pulling lubricant, and cable jacket plasticizers. The arched tie-entry slot accommodates Panduit's Pan-Ty®, Dome-Top®, and heavy-duty cable ties in widths from 0.09 inches (miniature) through 0.27 inches (standard), allowing a single SKU to serve low-voltage wire bundles, Cat6A backbone runs, and fiber breakout assemblies without requiring mount substitutions mid-install.

Installations in fire-rated assemblies or above suspended ceilings often mandate UL-listed components and materials that meet specific flame-spread classifications. The SMP16A-C's UL 94 V-2 rating ensures compliance with National Electrical Code Article 300 requirements for cable support hardware in air-handling spaces, while UL62275 certification covers the complete mount assembly—not just the base material—for use in electrical equipment installations. This dual-listing simplifies AHJ approval on projects where fire marshals or electrical inspectors require documentation traceability for every component between the device and the mounting substrate.

The rubber adhesive backing eliminates the installation time and tooling overhead associated with screw-mount bases, particularly in environments where mounting-surface access is constrained by adjacent equipment or where repeated drill-outs would compromise weatherproofing. Surface preparation is straightforward: wipe the mounting area with isopropyl alcohol, allow 30 seconds for flash-off, press the mount firmly for 5 seconds, and allow 24 hours for full cure before loading cable ties. Bonding strength improves with surface smoothness—expect full rated performance on powder-coated electrical boxes and telecom backboards, reduced performance on heavily textured or porous substrates like cinder block or unpainted wood.

The 100-piece package count aligns with typical project scale for single-room or single-rack deployments—sufficient for a 16-camera surveillance install with homerun drops from ceiling to head-end rack, or a medium-density access control retrofit spanning three floors of card readers and door strikes. Natural color blends with white or gray cable jackets and doesn't call visual attention to routing paths in customer-facing areas. The SMP16A-C ships with manufacturer warranty coverage and meets RoHS material composition standards for projects requiring environmental compliance documentation.
