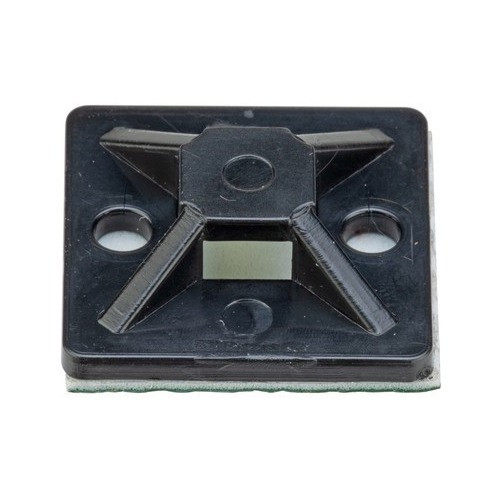

Panduit SMP16A-M0 StrongHold Adhesive Cable Tie Mount

Panduit SMP16A-M0 StrongHold™ Adhesive Cable Tie Mount

The Panduit SMP16A-M0 StrongHold™ adhesive cable tie mount delivers tool-free wire bundle securement for commercial security, network, and AV installations where drilling is impractical or prohibited. Each 25 × 25 mm mount features a rubber-based adhesive backing engineered for permanent bonding to clean, smooth surfaces—ideal for routing camera cables along architectural trim, organizing patch-panel runs in finished spaces, or managing wire bundles in equipment enclosures without penetrating walls or racks. Constructed from UL 94 V-2 flame-rated polyamide 6-6, these mounts meet commercial building code fire-safety requirements while providing superior mechanical strength and thermal stability compared to commodity acrylic or PVC alternatives.

Key Features

• Adhesive Installation: Rubber-based backing bonds permanently to metal, glass, plastic, and painted surfaces—eliminates drilling, anchors, and surface damage
• Universal Tie Compatibility: Central slot accommodates miniature, intermediate, and standard-diameter cable ties for 18 AWG single-conductor through multi-conductor bundles
• UL 94 V-2 Flame Rating: Polyamide 6-6 construction meets fire-safety requirements for commercial plenum-adjacent and exposed-cable routing
• Indoor/Outdoor Rated: Material and adhesive withstand temperature cycling, UV exposure, and humidity in both controlled environments and perimeter installations
• Bulk Packaging: 1,000-mount package supports large-scale deployments—datacenters, multi-building campuses, retrofit projects—with consistent cost-per-drop economics

Polyamide 6-6 (PA 6-6) delivers measurably higher tensile strength, abrasion resistance, and thermal stability than polypropylene or ABS mounts commonly supplied in generic cable-tie kits. The V-2 flame classification means the material self-extinguishes within 30 seconds of flame removal and does not produce flaming drips—a critical compliance point for installations near cable trays, above drop ceilings, or within 5 feet of plenum spaces where NEC Article 770 or 800 applies. The rubber-based adhesive develops full bond strength within 24 hours on clean, dry surfaces; installers should avoid mounting to textured drywall, unsealed concrete, or surfaces treated with silicone sprays, which inhibit adhesion. For maximum holding power, wipe the mounting surface with isopropyl alcohol, allow it to dry completely, press the mount firmly for 15 seconds, and allow the bond to cure before applying cable-tie tension.

The 25 mm square footprint provides a stable anchor point for ties securing bundles up to approximately 2 inches in diameter—typical for camera homerun groups (four to six RG59 or Cat6 cables), network uplink sets, or AV signal cable clusters. The raised central slot accepts standard-width cable ties from 2.5 mm (miniature) through 4.8 mm (intermediate) to 7.6 mm (standard), allowing installers to match tie size to bundle weight and pulling forces. In practice, use miniature ties for low-profile routing of four to eight 24 AWG conductors along door frames or behind monitors; intermediate ties for datacenter patch-panel dressing or raceway transitions; and standard ties for outdoor camera drops, conduit-to-building-entry transitions, or mechanical-room trunk routing where vibration and environmental stress are factors.

Black colorization maintains visual discretion in finished commercial spaces—conference rooms, retail environments, office areas—where exposed wire management must blend with trim, equipment, or architectural finishes. The UL62275 listing and RoHS compliance ensure the mounts meet North American electrical-component standards and European material-restriction directives, simplifying procurement for multinational projects or installations requiring documented material traceability. Panduit's StrongHold™ adhesive formulation is engineered specifically for cable-management loads; unlike general-purpose 3M VHB or foam tapes repurposed for wire routing, the mount's adhesive layer is calibrated to resist peel forces from bundled cables pulling at oblique angles during installation or service access, reducing the failure modes common to improvised adhesive-mount solutions.
