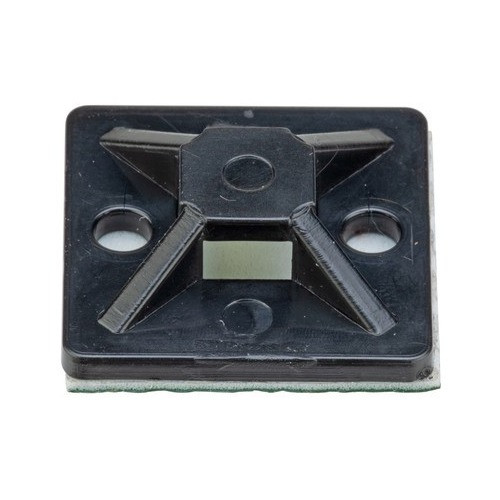

Panduit SMP18A-M0 StrongHold Adhesive Cable Tie Mount
The Panduit SMP18A-M0 StrongHold adhesive cable tie mount delivers fast, secure wire and cable routing without drilling or hardware. Built from PA 6-6 polyamide with UL 94 V-2 flame rating, this 30mm × 30mm mount accepts miniature, intermediate, and standard diameter cable ties for interior and exterior installations. The rubber-based adhesive backing bonds to clean metal, plastic, and painted surfaces in equipment racks, enclosures, and conduit runs. Ships 1,000 mounts per package for volume commercial deployments.
Key Features
- StrongHold rubber adhesive backing bonds to metal, plastic, and painted surfaces without drilling
- PA 6-6 polyamide construction with UL 94 V-2 flame rating for mechanical strength and thermal resistance
- 30mm × 30mm footprint (1.19" L × 1.7" W × 0.34" H) fits tight spaces in racks and panels
- Compatible with miniature, intermediate, and standard diameter Panduit cable ties
- Indoor and outdoor rated for enclosures, cable trays, and conduit routing
- UL62275 certified and RoHS compliant for commercial and industrial installations
- 1,000 mounts per package for high-volume cable management projects
The SMP18A-M0 uses glass-reinforced PA 6-6 polyamide that resists wear, maintains rigidity under load, and withstands thermal cycling from -40°C to +85°C. The UL 94 V-2 flame classification meets fire-resistance requirements for plenum-adjacent and equipment-room installations. The rubber adhesive provides 72-hour cure time for maximum bond strength on degreased surfaces; peel strength exceeds 8 lbs/in² on stainless steel and powder-coated steel. The center slot accepts tie heads from 0.09" miniature ties through 0.19" standard ties, covering Panduit's PLT, PRT, and HLSP series. Mount thickness is 8.7mm, allowing flush installation on DIN rail, cable tray edges, and equipment chassis without interference.
Commercial integrators use the SMP18A-M0 to anchor cable bundles along vertical rack rails, secure Power-over-Ethernet drops inside enclosures, and organize fiber patch cables behind wall-mount switches. The adhesive mount eliminates the time and material cost of drilling holes, tapping threads, or installing mechanical anchors—critical when working on pre-finished panels or thin-wall enclosures where fasteners would compromise structural integrity. The black PA 6-6 material matches Panduit's black cable tie inventory for consistent appearance in customer-visible installations. Each mount supports up to 50 lbs bundled cable weight when paired with appropriate tie width, verified per UL62275 testing.
UL62275 certification covers both the mount and adhesive system, ensuring compliance with NEC Article 300 and NFPA 70 requirements for wiring support in commercial buildings. RoHS compliance allows use in EU-deployed equipment and datacenter projects with material-restriction mandates. The 1,000-count package aligns with typical cable-pull quantities for multi-floor office builds, IDF retrofits, and structured cabling installations where hundreds of drops require consistent, repeatable anchoring.
