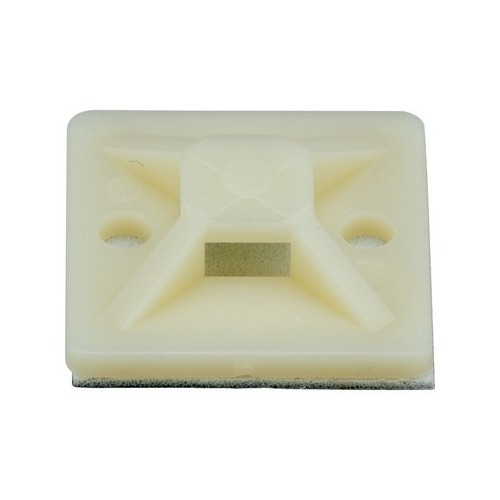

Panduit SMP18A-M 30mm Adhesive Cable Tie Mount

Panduit SMP18A-M StrongHold Cable Tie Mount Base

The Panduit SMP18A-M is a 30mm x 30mm adhesive-backed cable tie mount designed for professional wire management installations where drilling or mechanical fastening isn't practical. Built from flame-retardant PA 6-6 (polyamide 6-6) with UL 94 V-2 rating, this natural-colored mount uses rubber adhesive backing to bond permanently to clean metal, plastic, or painted surfaces — eliminating the labor and surface damage associated with screw-mount bases. Compatible with miniature, intermediate, and standard cable tie diameters, the SMP18A-M provides a universal anchor point for bundling low-voltage cabling, fiber runs, and control wiring in commercial security, access control, AV distribution, and data center environments.

Key Features

• StrongHold rubber adhesive backing bonds to metal, plastic, glass, and painted surfaces without drilling
• PA 6-6 construction with UL 94 V-2 flammability rating for fire-code compliance in plenum-adjacent and riser applications
• 30mm x 30mm footprint with 8.7mm profile fits tight spaces behind equipment racks, above ceiling grids, and inside enclosures
• Accepts miniature, intermediate, and standard cable tie widths for universal compatibility with Panduit and third-party ties
• Natural color blends with beige/gray infrastructure; won't yellow or discolor under UV exposure in outdoor-rated enclosures
• UL62275 listed and RoHS compliant for spec-driven government, healthcare, and education projects
• Bulk packaging: 1,000 mounts per bag, 5,000 per carton — sized for large deployments and reduces per-mount cost

Nylon 6-6 offers superior tensile strength and thermal stability compared to general-purpose polyethylene bases. The SMP18A-M maintains mechanical integrity from -40°C to +85°C, critical for mounts installed in unheated telecom huts, rooftop camera junction boxes, or server rooms with variable HVAC. The UL 94 V-2 flame rating ensures the mount self-extinguishes if exposed to ignition sources, a baseline requirement for installations within 5 feet of plenum spaces or in NEC Article 645 information technology rooms. While not plenum-rated itself (cable ties and mounts don't require CMP rating), the V-2 designation satisfies AHJ inspections where non-metallic components must demonstrate flame resistance. RoHS compliance eliminates lead, mercury, and hexavalent chromium, mandatory for European Union projects and increasingly required in California Title 20 and federal GSA contracts.

The StrongHold adhesive system uses a rubber-based formulation that cross-links with surface contaminants less than acrylic adhesives, making it more forgiving on powder-coated rack rails, anodized aluminum cable trays, and textured ABS enclosures. Surface prep still matters — degrease with isopropyl alcohol and allow 15 seconds dry time before applying the mount — but the rubber compound tolerates light oils and residual dust better than foam-tape alternatives. Once applied, allow 24 hours for full cure before loading the mount; tensile pull strength peaks at 72 hours. The 30mm square base distributes load across 900mm² of contact area, sufficient for bundles up to 15-20 Cat6 cables or 8-10 RG6 coax runs when using Panduit's PLT series ties. For higher static loads (UPS battery cables, large conduit drops), pair multiple SMP18A-M mounts 4-6 inches apart along the cable run to share tensile load. The adhesive is permanent — removal requires a heat gun or adhesive solvent and will likely damage painted surfaces — so plan mount locations carefully during the rough-in phase.

Unlike screw-mount bases that create penetration points for moisture ingress (a failure mode in outdoor camera junction boxes), the SMP18A-M maintains the enclosure's IP rating when applied to interior surfaces. For integrators managing 200+ camera deployments across parking structures or building perimeters, eliminating the drill-tap-mount cycle on every junction box saves 2-3 minutes per camera — 8-10 labor hours on a 200-camera project. In data center hot-aisle containment retrofits, adhesive mounts allow cable re-routing without violating the structural warranty on perforated floor tiles or overhead cable trays. The natural tan color disappears against manila-colored plenum-rated jacketing and beige ladder rack, a cleaner aesthetic than black mounts on light-colored infrastructure. For projects requiring color-coding (e.g., red mounts for fire alarm home-runs, black for access control), Panduit offers the same StrongHold platform in multiple colors, but the natural SMP18A-M remains the most versatile choice for mixed-system integrations where infrastructure blends into the background.
