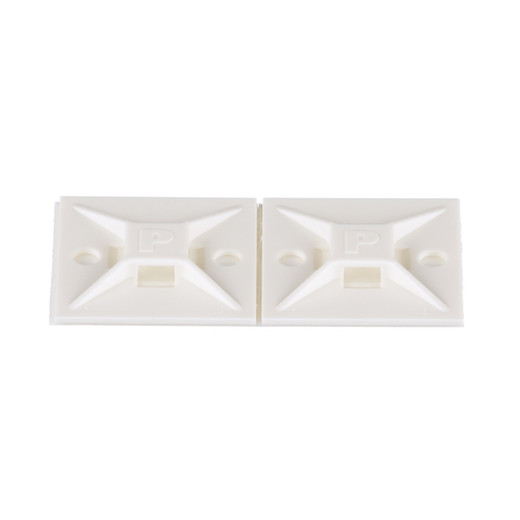

Panduit ABM112-AV-C Adhesive-Backed Cable Tie Mount

The Panduit ABM112-AV-C is an adhesive-backed cable tie mount engineered for permanent wire routing installations in commercial security, data center, and telecommunications environments. This low-profile mount accepts miniature, intermediate, and standard cross-section cable ties, providing a secure anchor point on equipment racks, walls, ceiling grids, and non-metallic surfaces where screw mounting is impractical. Constructed from white Nylon 6.6, the ABM112-AV-C delivers UV resistance and dimensional stability across -40°F to 185°F operating ranges, meeting cULus 62275 Type 1 requirements for structured cabling systems.

Key Features

Adhesive-backed mount eliminates drilling and accepts miniature, intermediate, and standard tie cross-sections

Nylon 6.6 construction resists UV degradation and maintains holding strength across -40°F to 185°F

Low-profile design (0.2" height) fits tight spaces behind equipment and in ceiling pathways

1.12" × 1.13" footprint provides stable base while minimizing surface coverage

cULus 62275 Type 1 and Type 11 listed for structured cabling compliance

White color blends with painted surfaces and maintains clean appearance in visible runs

RoHS compliant for installation in EU and California projects

100-pack quantity supports multi-drop cable runs and equipment room buildouts

The ABM112-AV-C's adhesive backing bonds to powder-coated steel, ABS plastic, PVC conduit, and painted drywall, eliminating the need for mechanical fasteners in environments where penetrating the substrate risks warranty voids or structural integrity. The mount's center slot accommodates standard cable tie heads from 0.09" to 0.19" wide, spanning Panduit's Pan-Ty miniature series through standard-duty 50 lb. ties. Installers routing surveillance camera drops in commercial ceilings use these mounts to anchor cable bundles to T-bar grids and plenum-rated j-hooks without creating new penetration points. The 0.2" height keeps tie heads below the plane of adjacent cables, preventing snag points when pulling additional drops through the same pathway.

Security integrators running PoE camera feeds through equipment rooms rely on the ABM112-AV-C to organize vertical cable management along rack uprights and behind patch panels where screw-mount tie bases interfere with equipment depth. The Nylon 6.6 formulation resists the plasticizer migration common in PVC-jacketed plenum cable, preventing the bond degradation that causes adhesive-mount failures in high-temperature ceiling spaces. For outdoor-rated camera installations in covered soffits and under-eave j-box mounting, the UV-stabilized material maintains structural integrity under indirect sunlight exposure without the brittleness that affects acetal-based mounts after 18-24 months. Data center deployments use these mounts inside ladder rack and overhead cable tray to secure fiber breakout assemblies and SFP+ DAC bundles at prescribed service loop intervals.

The cULus 62275 certification covers both Type 1 (general cable management) and Type 11 (wire termination) use cases, satisfying the structured cabling requirements in ANSI/TIA-568-C.1 and BICSI TDMM installation standards. RoHS compliance addresses California Proposition 65 restrictions and EU REACH requirements for projects with cross-border equipment procurement. Each mount ships in 100-piece packaging optimized for job-site distribution—an installer carrying four packs can complete a typical 40-camera deployment's cable dressing without mid-job material runs. The white finish matches standard ceiling tiles, painted EMT, and OEM equipment enclosures, eliminating the visual clutter of black or beige mounts on light-colored substrates.
