Middle Atlantic CBL LDR END DRP 23 1PC 7 - CLH-ED23

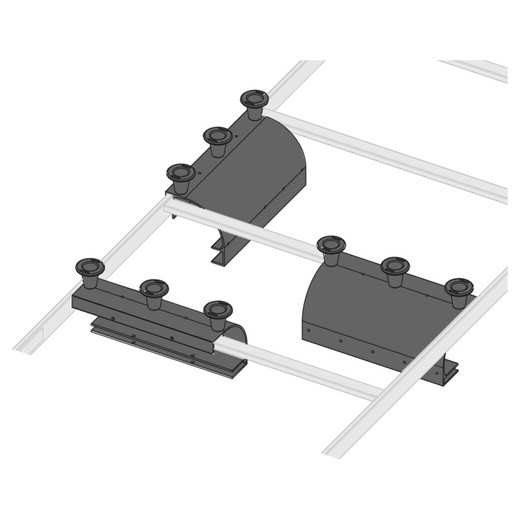

Middle Atlantic CLH-ED23 Cable Ladder End Drop

The Middle Atlantic CLH-ED23 is a single-piece cable ladder end drop designed to terminate open cable ladder runs cleanly in rack and infrastructure deployments. At 22.75 inches wide (57.8 cm) and 6.1 inches tall (15.5 cm) with a 4.5-inch depth, the CLH-ED23 provides a defined transition point at the end of a cable ladder segment — preventing cables from hanging unsupported off an open terminus and maintaining bend-radius compliance on vertical drops. It ships as a single component (Package Count: 1), so quantity planning for multi-rack rows is straightforward.

Key Features

• 22.75-inch channel width: matches the standard CLH-series cable ladder width, so it integrates flush at the end of a run without gaps or misalignment — no field modification required.
• 6.1 in × 4.5 in profile (H × D): compact enough to fit within standard overhead pathway clearances while providing enough drop depth to guide cables smoothly down into a rack's cable management channel.
• TAA Compliant: the CLH-ED23 meets Trade Agreements Act requirements, making it eligible for federal, state, and municipally-funded projects where TAA-compliant infrastructure sourcing is mandated.
• Single-piece construction: one part number, one SKU to track — reduces installation complexity and makes replacement ordering unambiguous on large projects with multiple ladder runs.

Integration & Compatibility

The CLH-ED23 is part of Middle Atlantic's Middle Atlantic cable management CLH cable ladder family. It is intended as a termination fitting for cable ladder systems used in AV, IT, and security rack infrastructure. When planning a full overhead cabling pathway, pair the end drop with compatible cable ladder sections and rack cable management accessories to complete the structured pathway from ladder to rack. Consult the CLH series documentation to confirm compatibility with your specific ladder width and mounting configuration before ordering.

What's in the Box

• 1× Middle Atlantic CLH-ED23 cable ladder end drop

Frequently Asked Questions

Q: Is the CLH-ED23 TAA compliant?

A: Yes. The CLH-ED23 carries TAA (Trade Agreements Act) compliance, making it eligible for use on government-funded and federally contracted projects that require TAA-compliant infrastructure components.

Q: What are the dimensions of the CLH-ED23?

A: The CLH-ED23 measures 22.75 inches wide (57.8 cm), 6.1 inches tall (15.5 cm), and 4.5 inches deep (11.4 cm).

Q: How many pieces are included per order of the CLH-ED23?

A: Each order includes one (1) CLH-ED23 end drop. If you are terminating multiple cable ladder runs, order one unit per run terminus.

Q: What cable ladder family does the CLH-ED23 work with?

A: The CLH-ED23 is part of Middle Atlantic's CLH cable ladder series and is designed to terminate CLH-series cable ladder runs. Verify the matching ladder width (22.75 in) against your installed or planned ladder sections before ordering.
