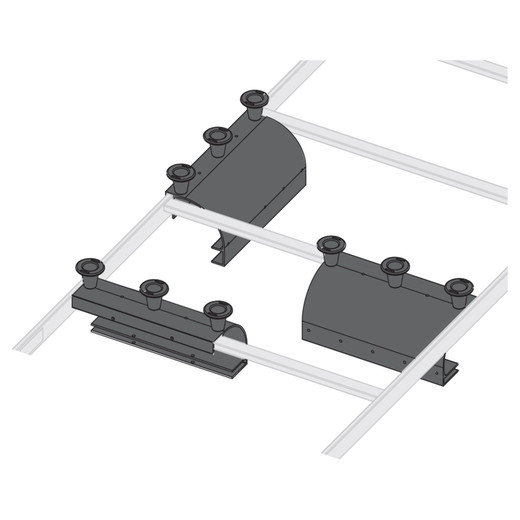

Middle Atlantic CLH-ED11-4 Cable Ladder End Drop — 11" 4-Piece Kit

Overview

The Middle Atlantic CLH-ED11-4 is an 11-inch cable ladder end drop kit designed to terminate horizontal cable ladder runs at the point where cables descend into a rack or enclosure. Sold as a 4-piece set, it gives installers the hardware to cap and redirect multiple ladder runs in a single order — useful when commissioning several rack bays in the same row. Each drop piece measures 11 inches wide × 6.1 inches tall × 4.5 inches deep, sized to align with standard 11-inch CLB ladder sections without requiring field modification.

Cable ladder infrastructure in structured wiring projects — security, AV, IT — often gets shortchanged on proper termination. An unsupported cable edge at rack entry creates bend-radius violations and long-term insulation wear. The Middle Atlantic cable management line addresses this with purpose-built end drops that guide cables smoothly off the ladder and into the rack, keeping the run compliant and the installation looking intentional rather than improvised.

Key Features

• 11-Inch Ladder Width Match: The 11 in (27.9 cm) width aligns directly with Middle Atlantic's CLB series ladder sections — no shimming, no offset brackets. When your ladder run terminates at a 12-space rack column, the end drop seats flush and the cable path stays clean from run to rack.
• Compact Drop Profile — 6.1" × 4.5": At 6.1 in (15.5 cm) tall and 4.5 in (11.4 cm) deep, the CLH-ED11-4 fits within typical overhead-to-rack clearance envelopes without conflicting with top-of-rack cable managers or brush strips. Measure your clearance before ordering if your overhead space is tighter than 7 inches.
• 4-Piece Per Package: Four end drops per kit means a 4-bay row gets fully terminated from one order. On larger deployments — a 10- or 12-bay security operations center row — order multiples; each package covers 4 termination points exactly, keeping your BOM clean with no fractional quantities.
• Designed for the CLB Ladder System: End drops in the CLB family are engineered as system components, not aftermarket adapters. The geometry is matched to Middle Atlantic's cable management accessories, so the mounting interface is predictable and repeatable across installations — an important detail when you're training field crews to replicate the same build across multiple sites.
• 12 lb Shipping Weight for 4 Pieces: At 12 lbs (5.4 kg) per 4-piece kit, these are steel components with meaningful mass — plan your overhead structure load calculations accordingly if you're stacking multiple ladder accessories on a single rack top-plate or ceiling grid. Don't treat cable ladder hardware as weightless in your structural review.

Integration & Compatibility

The CLH-ED11-4 is part of Middle Atlantic's CLB (Cable Ladder) series. It is sized for 11-inch-wide ladder sections. Before ordering, confirm your installed ladder width — Middle Atlantic offers CLB ladder components in multiple widths, and an end drop must match the ladder width exactly to seat and mount correctly. If your ladder runs are a different width, select the corresponding end drop SKU from the CLH-ED series.

These end drops are typically deployed in structured cabling environments including network infrastructure buildouts, security system head-end rooms, and broadcast/AV equipment bays where cable ladder is the primary overhead pathway. They are compatible with standard rack enclosures and open-frame racks that accept Middle Atlantic CLB ladder termination hardware. For full pathway planning in security rack deployments, review a cable management planning guide before finalizing your ladder and drop configuration.

What's in the Box

• 4× CLH-ED11-4 Cable Ladder End Drop pieces (11" width)

Frequently Asked Questions

Q: How many end drops are included in the CLH-ED11-4 package?

A: The CLH-ED11-4 ships as a 4-piece kit. Each piece is an individual 11-inch cable ladder end drop. One package terminates four ladder drop points.

Q: What cable ladder width does the CLH-ED11-4 fit?

A: The CLH-ED11-4 is designed for 11-inch-wide cable ladder sections in Middle Atlantic's CLB series. It will not properly align with narrower or wider ladder widths — verify your installed ladder width before ordering.

Q: What are the dimensions of each end drop piece?

A: Each piece measures 11 in (27.9 cm) wide × 6.1 in (15.5 cm) tall × 4.5 in (11.4 cm) deep.

Q: Can the CLH-ED11-4 be used with open-frame racks as well as enclosed cabinets?

A: The end drop is a ladder termination component and does not depend on the rack type for its primary function. It attaches to the ladder run itself to guide cables into the rack opening. Confirm Middle Atlantic's CLB mounting interface details for your specific rack model before installation.

Q: What is the shipping weight for the CLH-ED11-4 kit?

A: The 4-piece kit ships at 12 lbs (5.4 kg). Factor this into freight planning for large-quantity orders.
