Middle Atlantic 5 -7 Elevation KIT - CLH-ELS-5/7

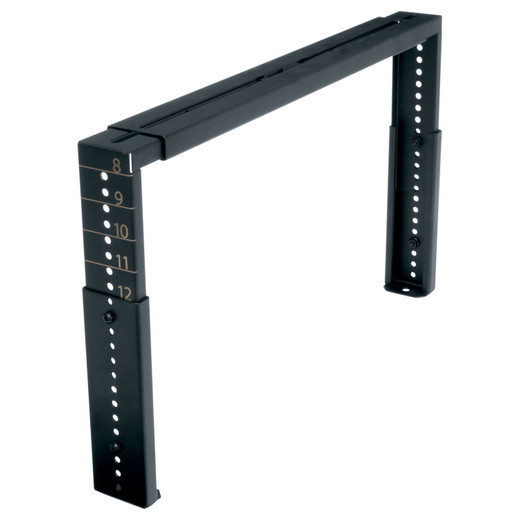

Middle Atlantic CLH-ELS-5/7 Cable Ladder Elevation Kit

Overview

The Middle Atlantic CLH-ELS-5/7 is a cable ladder elevation kit designed to raise and transition cable routing paths within Middle Atlantic CLH-series cable ladder installations. At 5 inches of rise and 18.4 inches wide, the CLH-ELS-5/7 bridges vertical offsets of 5 to 7U — common in raised-floor data centers, server rooms, and structured cabling pathways where cable trays must step up or down between rack rows or floor penetrations. Including this kit at transition points keeps cable bundles supported and bend-radius-compliant across elevation changes rather than letting runs droop unsupported between ladder segments.

Compatibility

Designed for use with Middle Atlantic cable ladder systems in the CLH series. The 18.4-inch width matches the standard CLH ladder rail spacing. Verify your installed CLH ladder width before ordering — Middle Atlantic offers multiple rail-width variants, and the elevation kit must match the field-installed ladder width exactly for proper rail alignment and hardware engagement. Confirm the 5–7U vertical offset range covers your specific rack elevation change; installations outside this range require a different elevation kit model from the CLH-ELS family.

Installation Notes

The kit addresses a 5-inch vertical rise, so verify the actual deck-to-deck or tray-to-tray offset in the field before specifying. At 4 lbs shipping weight, the hardware package is minimal — plan for standard cable ladder hand tools. Consult the cable ladder planning resources for bend-radius and support-spacing guidance relevant to your cable fill before finalizing elevation kit placement along the run.
