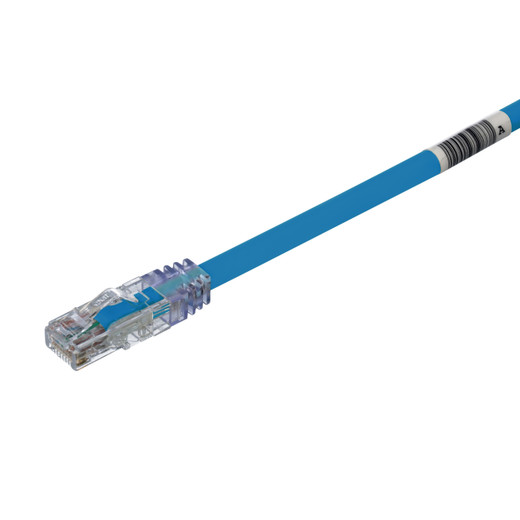

Panduit UTP6AX3BU Cat 6A 3 ft Patch Cord Blue

Panduit UTP6AX3BU Cat 6A UTP Patch Cord

When you're deploying 10GBASE-T Ethernet in a data center, blade-server environment, or high-density switching fabric, the patch cord is where alien crosstalk can kill your link budget — especially in bundled runs where dozens of cables share a pathway. The Panduit UTP6AX3BU is a 3-foot Cat 6A unshielded twisted-pair patch cord engineered to exceed TIA-568.2-D Category 6A and ISO 11801 Class EA specifications across the full 1–500 MHz spectrum, with construction details that directly address the real-world problems integrators face: tangled latches that snap off during MAC work, unlabeled cables that turn moves into guessing games, and marginal crosstalk performance that shows up as intermittent link drops under load.

Key Features

• Cat 6A performance certified to 10 Gb/s over copper, exceeding TIA-568.2-D and ISO 11801 Class EA across 1–500 MHz
• Solid foil tape shielding inside UTP construction limits alien crosstalk (AXT) in high-density bundles without grounding requirements
• Tangle-free modular plug latch design prevents snag damage during adds/moves/changes in populated patch panels
• RapidID pre-installed barcode labels enable fast port mapping and documentation using Panduit's RapidID software
• 24 AWG solid copper conductors in 0.250 in (6.4 mm) diameter cable for flexible routing in tight rack spaces
• Supports IEEE 802.3af/at/bt PoE (Type 3 and Type 4) up to 100W for powered devices over data infrastructure
• CM-rated jacket meets National Electrical Code requirements for general building installation
• Wired for compatibility with both T568A and T568B termination schemes

The UTP6AX3BU uses 24 AWG solid copper conductors in a U/UTP (unshielded twisted pair) configuration, but includes internal foil tape that isolates each pair from external interference without requiring the grounding infrastructure of true shielded systems. This hybrid approach delivers alien crosstalk suppression that keeps 10GBASE-T links stable even when you're running 48-port switch fabrics with every patch cord bundled in the same vertical manager. The cable measures 0.250 inches in diameter — thin enough to route through high-density panels without fighting bend-radius limits, but substantial enough that the conductors don't deform under tie-wrap pressure. Each end terminates in a high-performance modular plug with Panduit's tangle-free latch, a small but critical design detail: the latch tab sits flush and won't catch on adjacent cables when you're pulling a cord from a packed panel, and the release mechanism requires deliberate pressure so cables don't pop loose during vibration or accidental contact. Both connectors are wired identically and compatible with T568A or T568B jacks, eliminating the guesswork when you're patching between equipment from different manufacturers or maintaining legacy infrastructure.

This 3-foot length is the workhorse size for top-of-rack server connections, switch-to-switch stacking, and patch-panel-to-switch runs in standard 42U racks where the switch sits mid-rack and servers occupy the top third. In virtualized server environments where you're aggregating 10 Gb NICs or running iSCSI storage over Ethernet, the Cat 6A performance headroom ensures that you won't see CRC errors or retransmits even when all four pairs are carrying simultaneous PoE power and full-duplex data. The cable is rated for IEEE 802.3bt Type 3 and Type 4 PoE — up to 100W delivered — which covers high-power IP cameras with heaters and blowers, 802.11ax access points, and even some fanless PoE-powered mini PCs. RapidID barcode labels are pre-applied at both ends, and when scanned with Panduit's RapidID mobile app or handheld scanner, they auto-populate your cable management database with port mappings, eliminating the manual documentation step that usually gets skipped during after-hours maintenance windows. The blue jacket follows industry color conventions for standard data patch cords (as distinct from crossover or out-of-band management), making visual audits faster when you're troubleshooting a failed link at 2 a.m. and need to trace a path through a rat's nest of cables installed by three different contractors.

The UTP6AX3BU ships in single-unit packaging with a carton quantity of 10, and it's RoHS compliant for European and California installations. It meets UL 1863 and CSA C22.2 safety standards (UL File E129886) and exceeds FCC Part 68 (now codified as TIA-1096-A) for telecommunications connection to the public switched network, relevant if you're running voice-over-IP endpoints on the same structured cabling plant. For integrators working in data centers with 10G switching fabrics, high-density surveillance NVR backhaul, or AV-over-IP distribution systems, this patch cord delivers measurable alien crosstalk suppression, a latch that survives real-world MAC cycles, and built-in asset tracking — the three things you actually need when the install moves from the quote to the cable tray.
