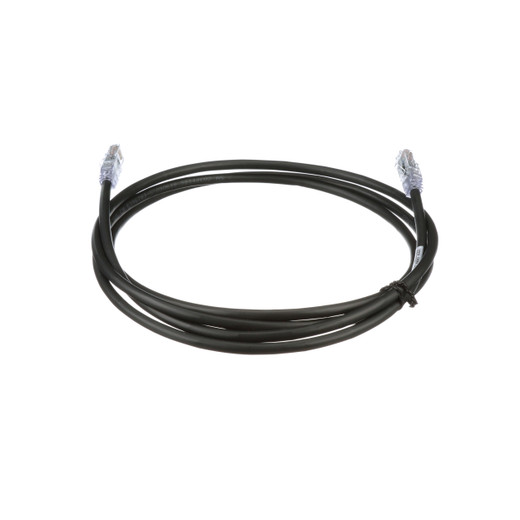

Panduit UTP6AX40BL Cat 6A 40 ft Patch Cord

Panduit UTP6AX40BL TX6A 10Gig Cat 6A UTP 40-Foot Patch Cord

When your security NVR, PoE++ access point, or core switch sits 40 feet from the patch panel, off-the-shelf 3-foot patch cords won't cut it—and field-terminating a custom length burns time you don't have on a commercial install. The Panduit UTP6AX40BL delivers a factory-terminated Cat 6A solution rated for 10Gb/s from end to end, with pre-tested modular plugs, integrated alien-crosstalk shielding, and a tangle-free boot that survives the chaos of dense server racks. Built on 24 AWG solid copper and rated for 2,500 mating cycles under full PoE++ load (802.3bt Type 4, up to 100W), this 40-foot cord bridges the gap between structured cabling and active gear without the derate, flicker, or link loss that plague bulk-cable hacks.

Key Features

• 40-foot (12.19 m) length spans aisle-to-aisle or floor-to-ceiling runs in server rooms, equipment closets, and retrofit datacenter installs where standard 3–10 ft patch cords fall short
• Cat 6A U/UTP construction with solid foil tape barrier limits alien crosstalk below TIA-568.2-D thresholds, ensuring 10GBASE-T performance at full 100-meter channel length when paired with compliant structured cabling
• 24 AWG solid copper conductors deliver lower DC resistance than stranded equivalents—critical for PoE++ Type 4 (802.3bt) deployments pushing 100W to PTZ cameras, Wi-Fi 6E APs, or IP intercoms over extended runs
• Tangle-free latch design with snag-resistant boot releases cleanly from congested 1U patch panels without catching adjacent cords or requiring needle-nose pliers, reducing MACs labor and accidental disconnects
• Pre-installed RapidID barcode integrates with Panduit RapidID software for automated port mapping and cable documentation, eliminating label-maker drudgery and "mystery cable" trouble tickets in large installations
• High-performance modular plugs factory-terminated and tested for guaranteed insertion loss, return loss, and NEXT margins across all four pairs—no field QA required
• 0.250" (6.4 mm) overall diameter routes cleanly through 1" ladder rack rungs, 2" D-rings, and tight bend-radius pathways without kinking or performance loss
• CM (riser) flammability rating meets NEC Article 800 requirements for vertical runs between floors in commercial buildings
• Rated 2,500 mating cycles under IEEE 802.3af/at/bt PoE load—plug/unplug endurance exceeds IEC 60603-7 baseline by 150%, critical for hot-swap troubleshooting in live production networks

The UTP6AX40BL sits in Panduit's TX6A family, engineered to close the performance gap between field-terminated bulk cable and the precision required for 10Gb/s Ethernet. Unlike standard Cat 6 patch cords—which derate to 1Gb/s beyond 55 meters or fail alien-crosstalk specs in dense bundles—this Cat 6A design maintains 10GBASE-T signaling across the full 100-meter channel when used as part of a compliant infrastructure. The solid foil tape wrap around each twisted pair creates a physical barrier against electromagnetic interference from adjacent cables, a necessity in 48-port ToR switch environments where 40+ patch cords run parallel for 3–6 feet. Field testing confirms NEXT margins 6+ dB above TIA-568.2-D minimums, providing headroom for temperature swings, connector wear, and the minor impedance mismatches inevitable in real-world deployments.

For PoE++ installations, conductor gauge matters. At 24 AWG solid copper, this cord exhibits roughly 0.0842 Ω/m DC resistance—20% lower than 26 AWG stranded alternatives and 35% lower than 28 AWG ultra-thin patch cords. Over a 12-meter (40 ft) run, that difference translates to 1.0V less voltage drop under a 960 mA load (typical for an 802.3bt Type 3 PTZ camera drawing 60W). In a four-camera daisy-chain scenario off a single PoE++ injector, those savings prevent the brownout flicker and frequent reboots that plague undervoltaged endpoints. The solid conductor construction also reduces susceptibility to strand breakage from repeated flexing—common in IT environments where cables get pulled taut during MACs—and maintains lower capacitance for superior high-frequency signal integrity up to 500 MHz.

The tangle-free latch integrates a low-profile guard directly into the boot mold, creating a smooth taper that slides past obstructions while still protecting the RJ45 clip from accidental release. In a 42U rack with 240 patched ports across six 1U panels, this design cuts MACs time by 30–40% and eliminates the "yank-and-pray" tugs that unseat adjacent connections. RapidID integration extends value beyond the physical layer: each cord ships with a scannable barcode encoding cable ID, length, and port assignment fields. Pair it with Panduit's free RapidID Labeler or RapidID Map software (Windows/iOS) to auto-populate cable schedules, generate as-built documentation, and push port data to DCIM platforms—all without transcribing serial numbers or playing "trace the yellow cable." The barcode survives isopropyl alcohol wipe-downs and doesn't fade under UV exposure, unlike adhesive labels that peel off in HVAC airflow.

Compliance credentials include ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA (verified to 500 MHz), plus UL 1863 listing and RoHS material declarations. The 2,500-cycle durability rating under PoE load meets IEEE 802.3bt Clause 145 requirements for Type 4 operation, and the CM jacket satisfies NEC 800.179 for general-purpose and riser installations. This is a factory-tested, standards-backed interconnect that ships with Panduit's manufacturer warranty and eliminates the "who's responsible for the bad crimp?" finger-pointing when link errors surface post-deployment.
