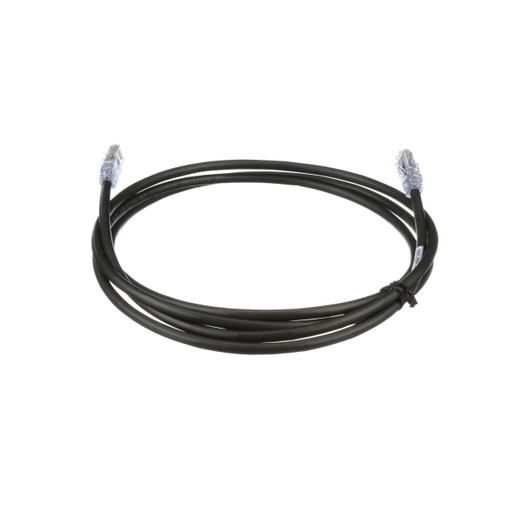

Panduit UTP6AX21BL Cat 6A 21 ft Patch Cord

Panduit UTP6AX21BL Pan-Net Cat 6A UTP Patch Cord

The Panduit UTP6AX21BL is a 21-foot Cat 6A UTP patch cord engineered for 10 Gb/s datacenter and enterprise installs where alien crosstalk mitigation, asset tracking, and cable management matter. Built with 24 AWG solid copper conductors and a 6.4 mm diameter jacket, it delivers Class EA performance in dense patch panel environments. Pre-installed RapidID barcoding enables automated port mapping via Panduit's RapidID software, and the tangle-free latch design streamlines moves, adds, and changes by preventing snags during pulls. Black colorway, CM rated, and PoE++ certified for 2500 cycles under IEEE 802.3bt Type 3 and Type 4 loading.

Key Features

• 10 Gb/s Transmission Ready: Exceeds ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA specifications for full 10GBASE-T performance over 100 meters
• Alien Crosstalk Mitigation: Internal foil tape construction limits interference from adjacent cables in high-density racks and patch panels
• RapidID Pre-Installed Barcode: Scan-to-document workflow integrates with RapidID software for instant port mapping, asset tracking, and as-built records
• Tangle-Free Latch: Low-profile latch design prevents snags on neighboring cables and ensures fast, tool-free release during MAC work
• 24 AWG Solid Copper: Solid conductor construction provides consistent DC resistance and insertion loss across the channel, preferred for permanent or semi-permanent links
• PoE++ Rated for 2500 Cycles: Tested to 2500 mating cycles under IEEE 802.3bt Type 3 (60 W) and Type 4 (100 W) load, suitable for IP cameras, wireless APs, and lighting controllers
• CM Flammability Rating: Meets National Electric Code requirements for general building applications (verify local code for plenum vs. CM use)
• Standards Compliant: Meets ANSI/TIA-1096-A (formerly FCC Part 68), IEC 60603-7, UL 1863, and RoHS directives

Solid 24 AWG conductors offer lower DC resistance than stranded equivalents, reducing insertion loss and return loss across the channel—critical when your link budget is tight in 10GBASE-T deployments. The U/UTP construction (unshielded twisted pair with internal foil tape) strikes a balance between alien crosstalk performance and flexibility: the foil tape isolates each pair from external EMI and near-end interference without the bend-radius constraints of F/UTP or S/FTP cables. In practice, this means you can route UTP6AX21BL through cable managers and around tight corners without exceeding the 4× bend-radius rule that trips up shielded variants. The RapidID barcode is laser-etched directly onto the boot, surviving abrasion and solvent exposure that would destroy adhesive labels; scanning the code via Panduit's mobile app or handheld scanner auto-populates your DCIM or asset management system with MPN, serial, length, and install date, eliminating transcription errors and cutting documentation time by 70% on large rollouts.

Deploy UTP6AX21BL for cross-rack links in datacenters, IP camera runs from switch closet to ceiling, or workstation-to-patch-panel connections in enterprise offices. The 21-foot length handles typical rack-to-rack spacing (adjacent rows in hot-aisle/cold-aisle layouts) or switch closet to near-zone camera mounts without excess slack. In high-density patch panel environments—where 48-port panels sit inches apart—the tangle-free latch and 6.4 mm diameter jacket reduce snag incidents during adds or changes; the latch's low profile clears neighboring RJ45s by 2–3 mm, and the boot's rounded edges slide past adjacent cables rather than hooking on them. For IP camera installs, the 2500-cycle PoE++ rating ensures reliable power delivery even after multiple service calls: cameras that drop from ceiling tiles for cleaning or repositioning, or APs that swap out annually, stay within the rated cycle count over a 10-year lifespan. The Black colorway blends with standard rack cable management and simplifies color-coding schemes (reserve other colors for cross-connects, uplinks, or out-of-band management).

Compliance is comprehensive: ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA certification guarantee 500 MHz bandwidth and 10 Gb/s data rate; ANSI/TIA-1096-A (the current incarnation of FCC Part 68 telecom registration) confirms the plug won't damage telco equipment if accidentally cross-connected; IEC 60603-7 verifies the 8P8C modular plug meets international dimensional and contact-force specs; UL 1863 listing covers communication-circuit accessories for NEC Article 800 installations; and PoE++ certification per IEEE 802.3af / 802.3at / 802.3bt validates current-carrying capacity and temperature rise under 100 W continuous load. This stack of third-party test reports simplifies project closeout—no engineering judgment calls on "equivalent" or "compatible" cables, just hand the inspector the Panduit spec sheet and move on. For integrators managing multi-site rollouts, the RapidID ecosystem extends beyond port mapping: scan a cord at receiving to confirm the correct MPN and quantity arrived, scan again at install to timestamp the in-service date, then export the entire job to CSV for customer handoff or warranty tracking. The result is a single SKU that solves cable performance, documentation, and cable management in one pull—no need to kit Panduit cords with third-party labels, boots, or latch protectors.
