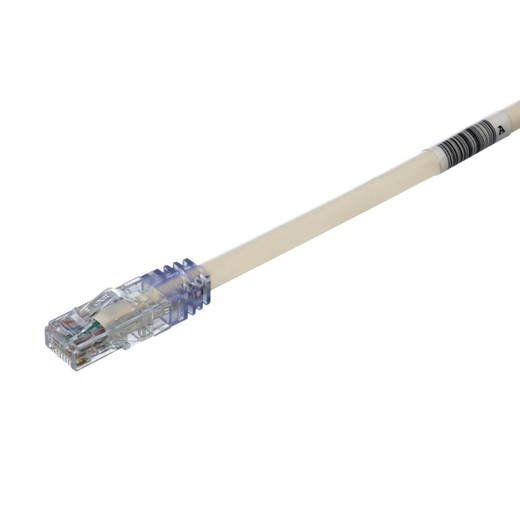

Panduit UTP6AX4 TX6A 10Gig Cat 6A Patch Cord
The Panduit UTP6AX4 is a 4-foot Cat 6A UTP patch cord engineered for 10GBASE-T Ethernet deployments where alien crosstalk mitigation and reliable high-speed connectivity are non-negotiable. Built with 24 AWG solid copper conductors and a 6.4mm diameter U/UTP construction, this cord delivers full 10 Gb/s throughput across frequencies from 1 to 500 MHz while supporting PoE++ power delivery up to IEEE 802.3bt Type 4 (90W). Its tangle-free latch design and pre-installed RapidID barcode streamline moves, adds, and changes in dense data center and enterprise network environments.
Key Features
- 10 Gb/s Transmission: Exceeds ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA standards across 1-500 MHz frequency range for guaranteed 10GBASE-T performance
- Solid Foil Tape Shielding: Internal foil tape limits alien crosstalk in high-density cable bundles without requiring grounded infrastructure
- Tangle-Free Latch: Low-profile snagless boot prevents cable snags during pulls and enables fast disconnect in confined spaces
- RapidID Barcode Integration: Pre-installed barcode labels enable automated port mapping and documentation when paired with Panduit RapidID software
- PoE++ Compliant: Supports IEEE 802.3af/at/bt Type 3 and Type 4 applications, delivering up to 90W to high-power devices like PTZ cameras, access points, and LED lighting
- Solid 24 AWG Conductors: Lower DC resistance than stranded alternatives improves PoE power delivery efficiency and reduces insertion loss
- CM Flame Rating: UL 1863 and CSA C22.2 listed for general-purpose indoor commercial installations
The UTP6AX4's U/UTP construction combines the performance benefits of shielded cabling with the installation simplicity of unshielded infrastructure. The internal foil tape wraps around all four pairs, creating a barrier against alien crosstalk from adjacent cables in tightly bundled pathways—a critical advantage in data center hot/cold aisle deployments or IDF closets where dozens of patch cords converge at a single switch. Unlike F/UTP or S/FTP cables that require grounded patch panels and chassis, this U/UTP design maintains 10 Gb/s performance without mandating end-to-end grounding continuity, simplifying retrofits into existing Cat 5e/6 infrastructures. The solid 24 AWG copper conductors provide lower DC loop resistance (9.38 ohms per 100m typical) compared to stranded equivalents, which translates to measurably better PoE efficiency when powering IP cameras or wireless access points at the far end of a 90-meter permanent link. Each RJ45 modular plug is terminated with 50-microinch gold plating on contact areas for corrosion resistance and maintains insertion loss below 0.2dB per ANSI/TIA standards.
This patch cord is purpose-built for data center server virtualization, backbone aggregation, and high-speed computing applications where 10GBASE-T connectivity is required between switches, servers, and storage arrays. The 4-foot length is ideal for top-of-rack switch-to-server connections or horizontal cable management within a single rack, minimizing slack while maintaining bend radius compliance (4× cable diameter minimum). The tangle-free latch design features a recessed release tab that prevents accidental disconnection during adjacent cable moves yet disengages cleanly without requiring needle-nose pliers or excessive force—a significant time saver when managing hundreds of connections during maintenance windows. RapidID barcode labels (compatible with Panduit RapidID mobile app and desktop software) allow technicians to scan each cord during installation and automatically populate network documentation with port-to-port mappings, serial numbers, and installation dates, eliminating manual spreadsheet entry and reducing human error in DCIM records.
The UTP6AX4 meets ANSI/TIA-568.2-D Category 6A channel requirements, ISO 11801-1 Class EA permanent link specifications, and IEC 60603-7 modular connector standards. It is wired to be compatible with both T568A and T568B termination schemes, ensuring plug-and-play interoperability with any standards-compliant infrastructure. The cord complies with IEEE 802.3af (15.4W), 802.3at (30W), and 802.3bt Type 3 (60W) and Type 4 (90W) PoE standards, supporting the full range of powered devices from basic VoIP phones to high-wattage PTZ cameras and 802.11ax access points. UL File E129886 covers both UL 1863 and CSA C22.2 No. 214 certifications for North American installations, and the cord is RoHS-compliant for European deployments. Panduit TX6A system includes a 20-year warranty when installed as a complete copper channel, providing long-term assurance for mission-critical 10G networks in finance, healthcare, and government sectors where uptime and performance are contractually guaranteed.
